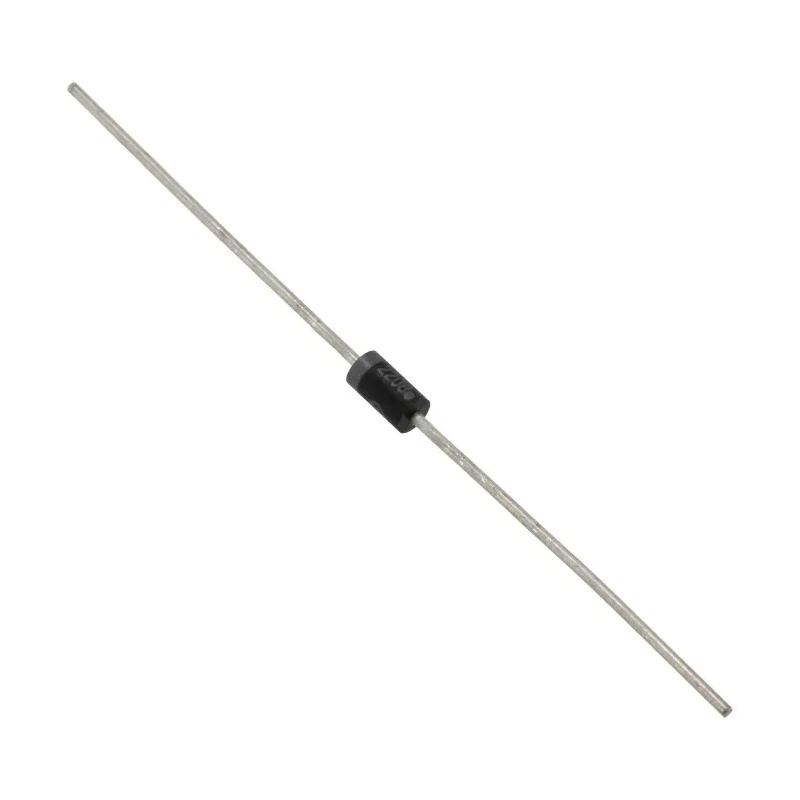

onsemi 24 V Zener Diode, Single, 3 W Power Dissipation, 5% Tolerance, Through Hole 2-Pin Case 017AA 1N5934BG

onsemi 1N5934BG Zener Diode is a single semiconductor device designed for voltage regulation, featuring a nominal Zener voltage of 24 V and a power dissipation capacity of 3 Watts. It utilizes a through-hole mounting style with a 2-pin Case 017AA plastic package that provides robust protection and corrosion resistance for reliable operation in various industrial, electronic manufacturing, and power supply applications.

The diode's 5% tolerance voltage ensures tight regulation suitable for precision circuits. It operates efficiently within temperature ranges from -65°C to 200°C, making it ideal for rugged environments and extended use cases such as industrial power supplies and electronic instrumentation. The polarity band marking on the cathode facilitates correct circuit orientation, critical for maintaining device functionality.

Constructed from void-free, transfer-molded thermosetting plastic, it offers excellent mechanical strength and longevity. The device's maximum lead temperature rating of 230°C for soldering supports efficient PCB assembly processes. It features a test current of 15.6 mA and a maximum Zener impedance of 700 ohms, which contribute to its voltage regulation performance. Reverse leakage current is minimal at maximum 1 microampere, reducing standby power consumption.

Applications include power supply voltage stabilization, surge protection, and reference voltage generation in a variety of commercial, industrial, and laboratory electronic systems. The compact size, with a height of 2.7 mm and length of 5.2 mm, enables integration into space-constrained electronic assemblies.

This Zener diode supports a tight 5% voltage tolerance for precise voltage regulation. Designed for through hole mounting, ensuring reliable solder connections. Maximum power dissipation is rated at 3 Watts suitable for moderate load applications.

Operating temperature range supports from -65°C to 200°C for wide environmental use. Cathode is identified by a polarity band for correct installation. Constructed in a void-free, transfer-molded thermosetting plastic package for durability.

Maximum lead soldering temperature is 230°C for 10 seconds for easy PCB assembly. Voltage regulator type ensures stable voltage supply in power circuits. Test current is specified at 15.6 mA with maximum Zener impedance of 700 ohms.

Maximum reverse leakage current is 1 microampere minimizing leakage losses. This component is ideal for use in industrial electronics, power supply design, testing equipment, and various applications requiring stable voltage regulation.
