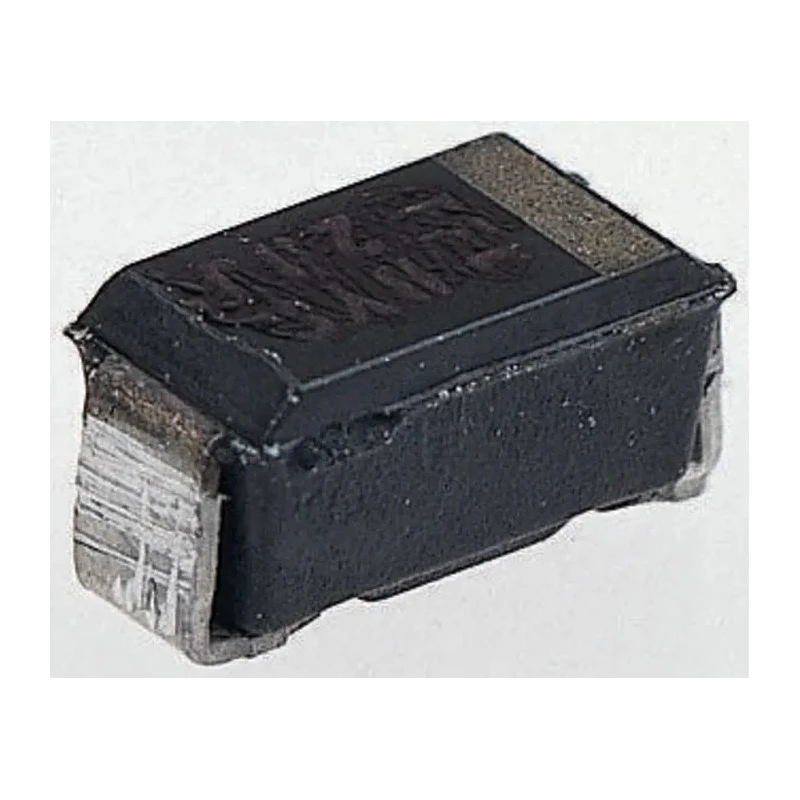

STMicroelectronics 30 V 1 A Schottky Barrier Diode Surface Mount DO-214AA Package STPS1L30U
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | STPS1L30U |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | STPS1L30 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.26V |
Key Features
- Features a low forward voltage of 0.26 V for high efficiency.
- Capable of withstanding peak non-repetitive forward surge current of 75 A.
- Operates reliably in a wide temperature range from -65°C to 150°C.
- Compact DO-214AA package with dimensions 4.6 mm length, 3.95 mm width, and 2.45 mm height.
- Ideal for use in power rectification and switching applications.
- Single diode configuration designed for surface mounting on PCBs.
- Peak reverse current is low at 200 µA, minimizing leakage.
- No automotive standard compliance; suitable primarily for general industrial electronics.
Product Description
STMicroelectronics STPS1L30U is a 30 V, 1 A Schottky barrier diode housed in a compact 2-pin DO-214AA surface mount package. It offers low forward voltage and excellent efficiency designed for fast switching and rectification in electronic circuits. The diode supports a peak reverse repetitive voltage of 30 V and a continuous forward current of 1 A, making it suitable for power supplies, voltage clamping, and reverse polarity protection.
With a maximum forward voltage of 0.26 V and a surge current capacity of 75 A, it withstands transient conditions while maintaining high performance. The device's operating temperature ranges from -65°C to 150°C, ensuring stable operation under varied environmental conditions.
The diode features a single configuration with two pins and a highly compact footprint, with package dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height, facilitating PCB layout optimization in space-constrained applications.
Low forward voltage drop of approximately 0.26 V enhances power efficiency. High surge current tolerance of 75 A for transient voltage and current spikes. Surface-mount package DO-214AA for automated PCB assembly. Wide operating temperature range from -65°C to 150°C suitable for industrial use.
Low leakage current of 200 µA to reduce power loss during reverse bias. Ideal for use in power rectification, power management, and high-frequency switching applications. Not rated for automotive standards; intended for industrial and commercial devices.
This Schottky diode from STMicroelectronics is widely used in industrial electronics, power electronics, telecommunications, and consumer electronics for enhancing efficiency and reducing energy loss. It is often applied in power supply circuits, converters, and protection circuits due to its low forward voltage and rapid switching capabilities.
Explore more products in the Schottky Diodes & Rectifiers category at EnvMart to find solutions for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this Schottky diode is 1 A.
It can withstand a peak reverse repetitive voltage of 30 V.
The maximum forward voltage drop is approximately 0.26 V.
The diode has a peak non-repetitive forward surge current rating of 75 A.
The dimensions of the DO-214AA package are 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
It operates reliably in a wide temperature range from -65°C to 150°C.
The peak reverse current is low at 200 µA, which helps minimize leakage.
This model supports surface mounting on PCBs.
It is suitable for power rectification, voltage clamping, and reverse polarity protection in electronic circuits.
The diode features a single configuration with 2 pins.
No, it is not rated for automotive standards and is intended primarily for industrial and commercial devices.
This model is a Schottky rectifier type diode.
