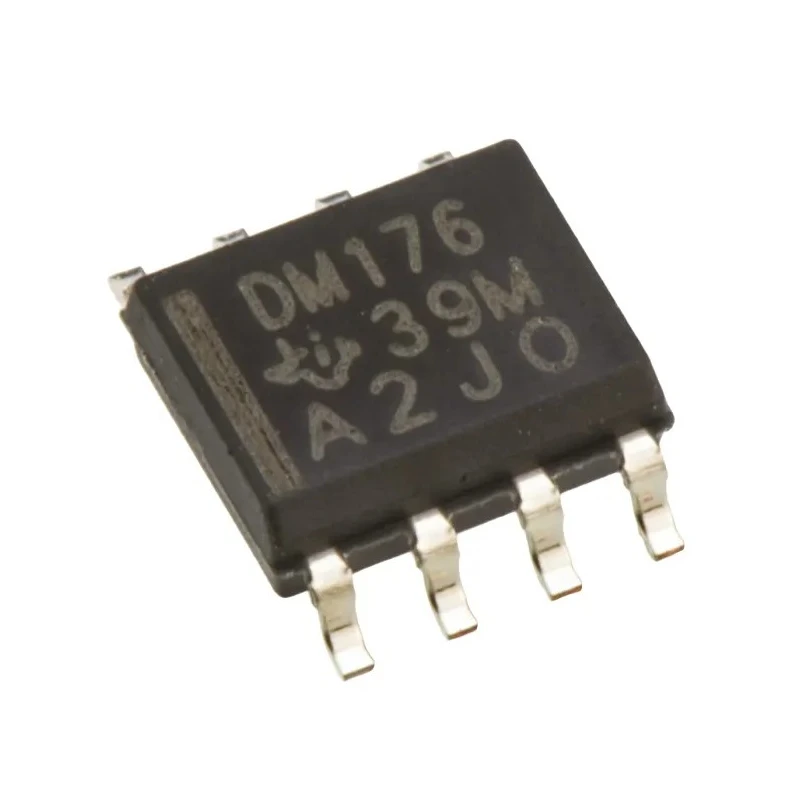

Texas Instruments LVDS Transceiver IC, 1 Driver & 1 Receiver, 400Mbps, 8-Pin SOIC Package SN65LVDM176D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | SN65LVDM176D |
| Mount Type | Surface |
| Output type | Transceiver |
| Series | SN65LVDM176 |
| Input Type | LVDS |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Transmission Data Rate | 400Mbps |
| Differential Input High Threshold Voltage | 50mV |
| Differential Input Low Threshold Voltage | -50mV |
Key Features
- Designed for low voltage differential signaling applications.
- Supports high-speed data transmission up to 400Mbps.
- Low supply voltage range from 3V to 3.6V allowing energy-efficient operation.
- Compact 8-pin SOIC package with dimensions of 4.9mm length and 1.58mm height.
- Operates reliably within industrial temperature range from -40°C to 85°C.
- Includes robust ESD protection to enhance device durability.
- Compliant with RoHS standards for environmentally safe applications.
- Ideal for Firewire, SATA, and SCSI interface designs requiring LVDS communication.
Product Description
Texas Instruments SN65LVDM176D is a LVDS Transceiver IC designed to provide reliable data transmission through low voltage differential signaling (LVDS). This device integrates 1 driver and 1 receiver capable of supporting transmission data rates up to 400Mbps, making it suitable for high-speed communication interfaces such as Firewire, SATA, and SCSI.
The transceiver is supplied in an 8-pin SOIC surface mount package with a length of 4.9mm and a height of 1.58mm, offering a compact footprint for space-constrained circuit designs.
Operating from a minimum supply voltage of 3V up to a maximum of 3.6V, the SN65LVDM176D ensures efficient low-voltage logic signaling while maintaining robustness with a differential input high threshold voltage of 50mV and a low threshold of -50mV.
This device is designed for industrial applications with an operating temperature range from -40°C to 85°C and includes ESD protection to improve device longevity and reliability. It complies with RoHS environmental standards and is hence suitable for environmentally conscious manufacturing processes.
The Texas Instruments SN65LVDM176D transceiver is ideally used in electronic components and semiconductor applications requiring LVDS interface ICs, especially in industrial, automotive (non-automotive standard), and communication sectors.
Designed for low voltage differential signaling applications. Supports high-speed data transmission up to 400Mbps. Low supply voltage range from 3V to 3.6V allowing energy-efficient operation. Compact 8-pin SOIC package with dimensions of 4.9mm length and 1.58mm height.
Operates reliably within industrial temperature range from -40°C to 85°C. Includes robust ESD protection to enhance device durability. Compliant with RoHS standards for environmentally safe applications. Ideal for Firewire, SATA, and SCSI interface designs requiring LVDS communication.
Surface mount design for easy PCB assembly and integration. Automotive standard not applicable, ensuring focused semiconductor functionality. Explore extensive semiconductor solutions and high-speed transceivers like the SN65LVDM176D at EnvMart, your trusted source for electronic components and LVDS Interface Ics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN65LVDM176D supports a maximum data transmission rate of 400Mbps.
It operates within a supply voltage range of 3V to 3.6V.
This transceiver is housed in an 8-pin SOIC package with dimensions of 4.9mm in length and 1.58mm in height.
It operates reliably within an industrial temperature range from -40°C to 85°C.
The SN65LVDM176D uses low voltage differential signaling (LVDS) for its input type.
This transceiver integrates 1 driver and 1 receiver.
Yes, it includes robust ESD protection to enhance device durability.
It is compliant with RoHS standards for environmentally safe applications.
The differential input high threshold voltage is 50mV.
The differential input low threshold voltage is -50mV.
The SN65LVDM176D is packaged in an 8-pin SOIC surface mount type.
It is suitable for high-speed communication interfaces such as Firewire, SATA, and SCSI.
