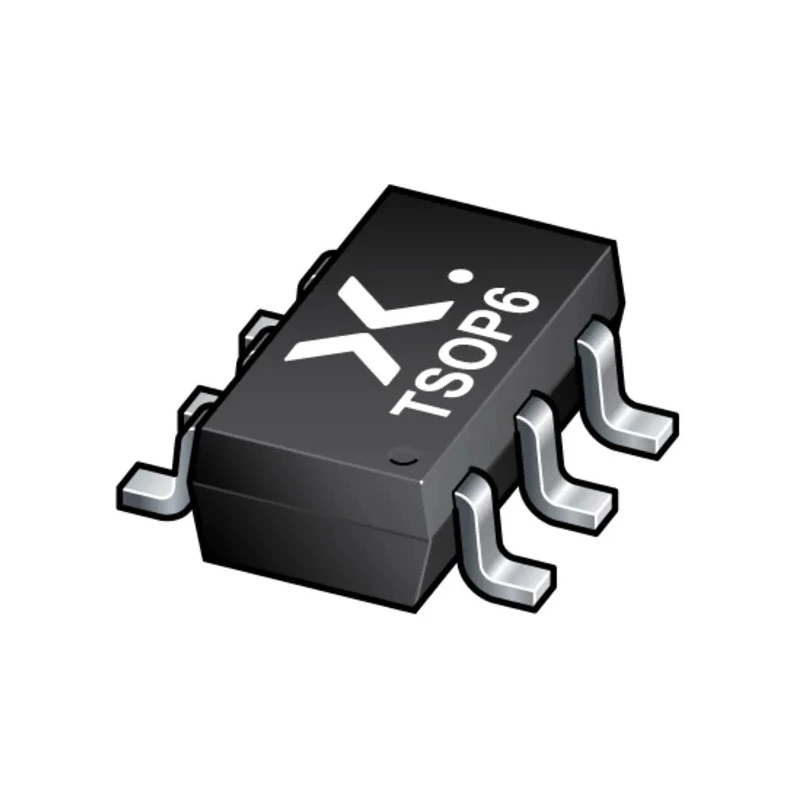

Nexperia CMOS Inverter with Schmitt Trigger Input 74LVC2G14GV,125 2-Element 6-Pin TSOP 1.65-5.5V Malaysia 74LVC2G14GV,125

Free Delivery in India | Lowest Global Shipping Charges

Nexperia CMOS Inverter with Schmitt Trigger Input 74LVC2G14GV,125 2-Element 6-Pin TSOP 1.65-5.5V Malaysia 74LVC2G14GV,125

Name: Nexperia CMOS Inverter with Schmitt Trigger Input 74LVC2G14GV,125 2-Element 6-Pin TSOP 1.65-5.5V Malaysia 74LVC2G14GV,125
Brand: Nexperia
SKU: 332290
Price: 0.18 USD
Availability: InStock



Category Inverters ICs Brand Nexperia Condition New

Specifications

Country of Origin	Malaysia
Brand	Nexperia
Height	1mm
Length	3.1mm
Model	74LVC2G14GV,125
Width	1.7mm
Mount Type	Surface
Output type	Schmitt Trigger
Series	74LVC2G14
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Package Type	TSOP
Minimum Operating Temperature	-40°C
Pin Count	6
Number of Elements per Chip	2
Maximum Supply Voltage	5.5V
Logic Family	74LVC
Logic Function	Inverter
Minimum Supply Voltage	1.65V
Maximum High Level Output Current	-32mA
Maximum Propagation Delay Time @ CL	7.7ns
Maximum Low Level Output Current	32mA

Key Features

Features Schmitt-trigger input for effective noise immunity and signal reshaping.
Operates over a wide supply voltage range from 1.65V to 5.5V.
Equipped with 2 elements per chip in a compact 6-pin TSOP package.
Supports input-driven from both 3.3V and 5V devices for versatile application.
Has a maximum propagation delay time of 7.7 nanoseconds at CL.
Tolerant of slow input signal rise and fall times, preventing multiple switching.
Maximum output currents are -32mA (high) and 32mA (low) ensuring reliable drive capability.
Designed for operation in temperatures ranging from -40°C to 125°C.

Product Description

Nexperia 74LVC2G14GV,125 CMOS inverter with Schmitt trigger inputs is a dual inverting buffer IC designed to convert slowly changing input signals into sharply defined, jitter-free outputs. This device operates efficiently within a supply voltage range of 1.65 V to 5.5 V, supporting mixed 3.3 V and 5 V environments, making it ideal for versatile industrial and electronic applications.

The Schmitt-trigger input feature enhances noise immunity and reshapes signals in complex layouts, making the IC suitable for use in industrial automation, embedded systems, and automotive electronics where signal integrity is critical. Its capability to tolerate slower input rise and fall times effectively prevents multiple switching issues.

This device contains two inverter elements within a compact 6-pin TSOP package, measuring 3.1mm in length, 1.7mm width, and 1mm height. It supports operation at temperatures from -40°C up to 125°C, ensuring reliable functionality in demanding environments.

The 74LVC2G14GV,125 exhibits a maximum propagation delay time of 7.7 nanoseconds at capacitive load, with output current capacities of -32 mA for high level and 32 mA for low level, suitable for driving various loads.

Manufactured in Malaysia and fully compatible with the 74LVC logic family standards, this CMOS inverter IC provides open drain output options and overvoltage tolerant input configurations for advanced system designs.

Features Schmitt-trigger input for improved noise immunity and signal conditioning. Wide voltage supply range from 1.65 V to 5.5 V allows for diverse application scenarios. Compact 6-pin TSOP package with dual inverting buffers.

Operational temperature range from -40°C to 125°C suitable for industrial use. Compatible with 74LVC series logic family ensuring seamless integration. Designed to prevent multiple switching with slow input edges enhancing signal reliability.

This 74LVC2G14GV,125 model is recommended for industrial, automotive, electronic device manufacturing, and laboratory prototyping environments requiring reliable inverting logic functions with enhanced noise immunity.

Discover more semiconductor components and Inverters ICs from Nexperia in the Electronics & Electricals category on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model operates over a supply voltage range of 1.65V to 5.5V, making it suitable for diverse applications.

The maximum propagation delay time is 7.7 nanoseconds at capacitive load, ensuring fast signal processing.

This unit has a length of 3.1mm, a width of 1.7mm, and a height of 1mm, housed in a compact 6-pin TSOP package.

It is designed to operate within a temperature range from -40°C to 125°C, suitable for demanding environments.

The maximum output currents are -32mA for high level and 32mA for low level, providing reliable drive capability.

This model contains two elements per chip, allowing for dual inverting functions.

It features Schmitt trigger inputs, which enhance noise immunity and signal reshaping.

Yes, it supports input-driven signals from both 3.3V and 5V devices, making it versatile for various applications.

The 74LVC2G14GV,125 is part of the 74LVC logic family, ensuring seamless integration with other components in the same family.

It is packaged in a TSOP (Thin Small Outline Package), which is compact and suitable for surface mounting.

This inverter is recommended for use in industrial automation, embedded systems, and automotive electronics where signal integrity is critical.

The Schmitt trigger feature improves noise immunity and reshapes slowly changing input signals into sharply defined outputs, enhancing overall signal reliability.
