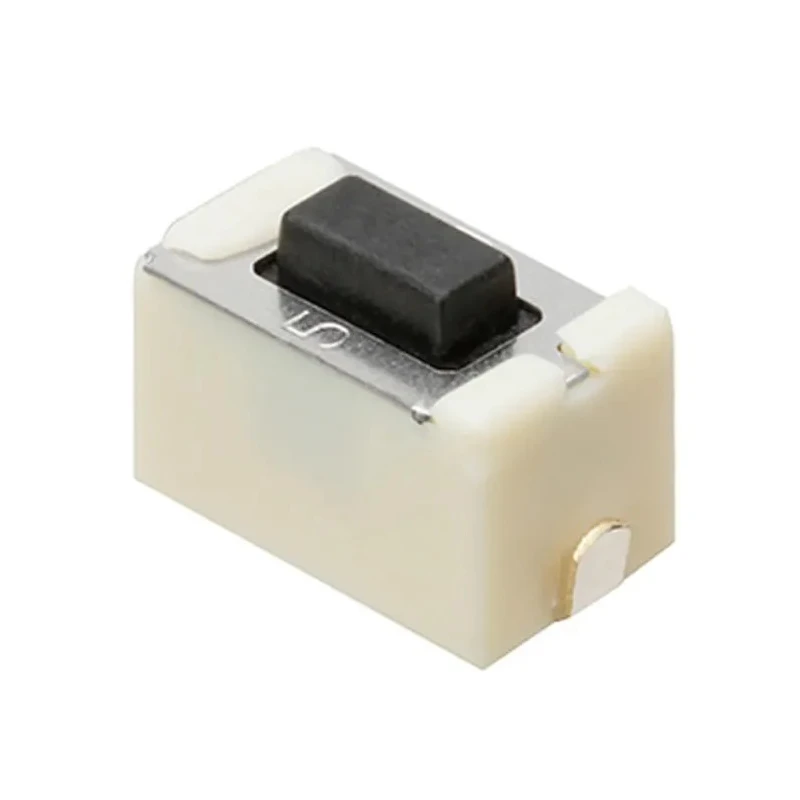

Panasonic IP67 Natural Tactile Switch Push Plate SPST 20mA 15 V dc 3 mm EVQPNF04M

Name: Panasonic IP67 Natural Tactile Switch Push Plate SPST 20mA 15 V dc 3 mm EVQPNF04M
Brand: Panasonic
SKU: 331278
Price: 1.72 USD
Availability: InStock



Category Tactile Switch Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Brand	Panasonic
Height	4.3mm
Length	6mm
Model	EVQPNF04M
IP Rating	IP67
Width	3.5mm
Mount Type	Surface
Series	EVQ
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-30°C
Terminal type	J Bend
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Natural
Actuator Length	3mm
Contact DC Voltage	15V dc
Actuator Style	Push Plate
Actuator Orientation	Straight
Switch Contact Current	20mA
Operating Force	1.6N
Mechanical Life	500000Operations

Key Features

Constructed with SPST contact configuration providing reliable single-pole switching.
Designed with a natural-colored push plate actuator of 3 mm length for precision input.
Supports a switch contact current of 20mA at 15 V dc suitable for sensitive electronic circuits.
Features IP67 rating ensuring dust-tight and waterproof operation in harsh environments.
Marine-grade operational temperature range from -30°C to 85°C for wide application.
Surface mount type with J Bend terminals for easy PCB assembly.
Mechanical life rated at 500,000 operations for long-term durability.
Sharp, clear tactile click feel with low contact resistance and minimal noise.

Product Description

Panasonic EVQPNF04M is a high-quality natural tactile switch push plate designed for precise momentary switching operations. Featuring a 3 mm long actuator with a push plate style and straight orientation, this switch assures a sharp and satisfying click feedback essential for electronic and industrial applications.

Its SPST single-pole contact configuration supports a low switching current of 20mA at 15 V dc, making it ideal for sensitive control circuits in electrical automation, instrumentation, and consumer electronics. The J Bend terminal type and surface mount design enable reliable PCB integration with robust soldering joints.

Rated IP67, the switch is dust-tight and waterproof, suitable for industrial environments demanding high resistance to contaminants and moisture. Its operational temperature range from -30°C to 85°C expands its usability in diverse environmental conditions from laboratory to industrial automation settings.

Manufactured in Japan, this switch supports up to 500,000 mechanical actuations ensuring longevity in demanding applications. The compact dimensions of 6 mm length, 3.5 mm width, and 4.3 mm height facilitate space-efficient designs.

It complies with RoHS directives, aligning with global environmental standards by limiting hazardous substances. The switch's ultra low contact resistance and minimal bounce noise provide high reliability and precision in operation.

Constructed with SPST contact configuration providing reliable single-pole switching. Designed with a natural-colored push plate actuator of 3 mm length for precision input. Supports a switch contact current of 20mA at 15 V dc suitable for sensitive electronic circuits.

Features IP67 rating ensuring dust-tight and waterproof operation in harsh environments. Marine-grade operational temperature range from -30°C to 85°C for wide application. Surface mount type with J Bend terminals for easy PCB assembly.

Mechanical life rated at 500,000 operations for long-term durability. Sharp, clear tactile click feel with low contact resistance and minimal noise. Complies with RoHS standards ensuring hazardous substances are minimized.

Compact form factor with dimensions: length 6 mm, width 3.5 mm, height 4.3 mm.

This Panasonic tactile switch is perfectly suited for industrial automation, electrical control panels, instrumentation, and other commercial electronic applications requiring reliability and a clear tactile response.

Explore full range of Tactile Switches and related components to enhance your electronic products and assemblies on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The switch features an SPST (Single Pole, Single Throw) contact configuration, providing reliable single-pole switching.

This model can operate at a maximum temperature of 85°C, making it suitable for various environmental conditions.

The switch has an IP67 rating, ensuring it is dust-tight and waterproof, suitable for harsh environments.

The actuator length of this push plate switch is 3 mm, designed for precision input.

It is rated for a mechanical life of 500,000 operations, ensuring longevity in demanding applications.

The switch supports a contact current of 20mA at a voltage of 15V dc, making it suitable for sensitive electronic circuits.

The dimensions of the switch are 6 mm in length, 3.5 mm in width, and 4.3 mm in height, facilitating space-efficient designs.

This model uses J Bend terminals, which enable easy PCB assembly and reliable soldering joints.

The minimum operating temperature for this switch is -30°C, allowing for use in a wide range of environments.

This switch complies with RoHS directives, which limit hazardous substances in electrical and electronic equipment.

The operating force required to activate this switch is 1.6N, providing a tactile feedback during operation.

This tactile switch is suitable for applications in industrial automation, electrical control panels, and instrumentation, where reliable momentary switching is required.
