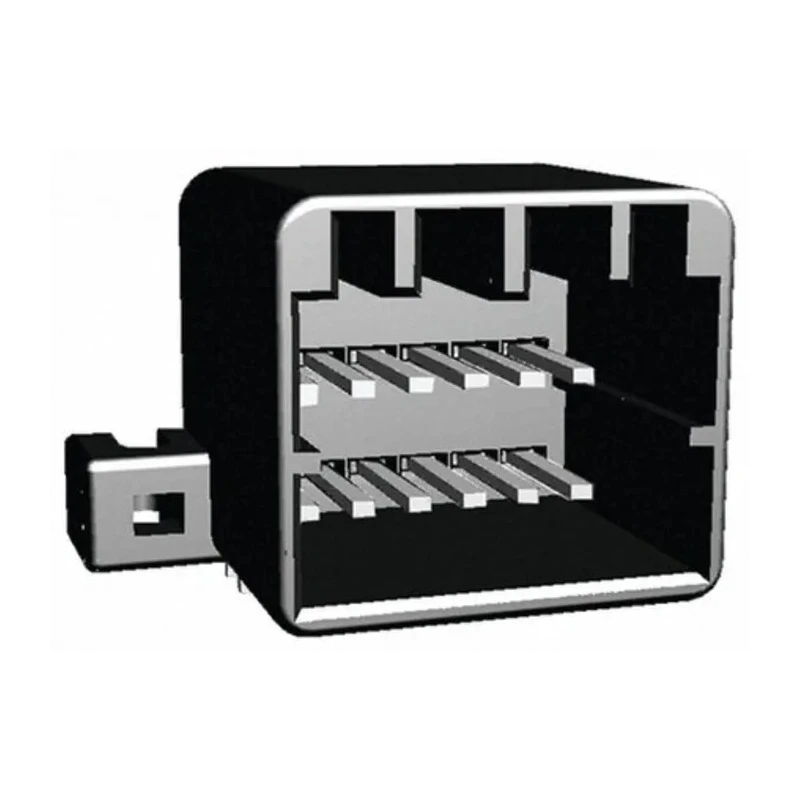

TE Connectivity MULTILOCK 040 II Series Right Angle Through Hole PCB Socket 12-Contact 2 Row 2.5 mm Pitch Solder 175974-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Model | 175974-2 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | MULTILOCK 040 II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.5mm |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-8807PBrand: TE ConnectivityManufacturers Part No.: 175974-2 |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector System | Wire-to-Board |
Key Features
- Compact design providing high density contact centers for space-saving applications.
- Durable thermoplastic housing ensures long-lasting mechanical and environmental resistance.
- Right angle orientation and through-hole mount type for robust PCB integration.
- Integral double locking system and contact protection prevent rocking during mating and unmating.
- Suitable for automotive and general purpose applications requiring reliable wire-to-board connections.
- Operates reliably in temperature ranges from -55°C to 105°C.
- Contacts made of brass with tin plating ensure quality electrical performance.
- Connector system supports wire-to-board interfacing at 250V maximum voltage.
Product Description
TE Connectivity 175974-2 MULTILOCK 040 II Series Right Angle Through Hole PCB Socket features a compact and durable design optimized for automotive and general purpose electronic applications. This wire-to-board PCB socket incorporates 12 female contacts arranged in 2 rows with a 2.5 mm pitch solder termination, enabling secure and reliable connections to printed circuit boards.
The housing is constructed from robust thermoplastic material, designed to withstand automotive environmental conditions. Its right angle orientation and through-hole mounting style allow for sturdy mechanical integration on PCBs. The integral double locking system prevents contact rocking and ensures consistent contact retention, improving connection reliability and durability.
Electrical performance is supported up to 250 volts with brass contacts plated in tin, providing excellent conductivity and corrosion resistance. The device operates over a wide temperature range from -55°C to 105°C, making it suitable for harsh automotive environments including powertrain systems, safety modules, convenience electronics such as heating and audio, as well as body and chassis electronics.
Compact design with high density 2.5mm contact pitch. Durable thermoplastic housing for automotive-grade robustness. Right angle through-hole mounting for reliable PCB installation. Integral double locking mechanism to secure contact retention.
Female brass contacts with tin plating provide excellent electrical conductivity. Electrical rating of 250V supports diverse signal and power needs. Wide operating temperature from -55°C to 105°C ensures suitability for demanding environments.
Complies with RoHS environmental standards. Ideal for automotive powertrain, safety, and convenience system applications.
This PCB Socket is part of the TE Connectivity MULTILOCK 040 II series tailored for automotive connectors, offering a high density, reliable wire-to-board interface solution. It is also applicable in other industrial and electronic domains requiring compact, durable connectors.
Explore a broad range of TE Connectivity MULTILOCK connectors and compatible components on EnvMart to meet diverse electronic connector requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB socket is 250V.
This model operates reliably in a temperature range from -55°C to 105°C.
It features 12 female contacts arranged in 2 rows.
The pitch size of the contacts is 2.5 mm.
This socket uses a through-hole mounting type for robust PCB integration.
The housing is constructed from durable thermoplastic material.
The contacts are made of brass with tin plating, ensuring quality electrical performance.
Yes, it complies with RoHS environmental standards.
The orientation of this PCB socket is right angle, allowing for efficient space usage.
This socket uses solder termination for secure connections.
It is suitable for automotive applications and general purpose wire-to-board connections.
It includes an integral double locking system and contact protection to prevent rocking during mating and unmating.
