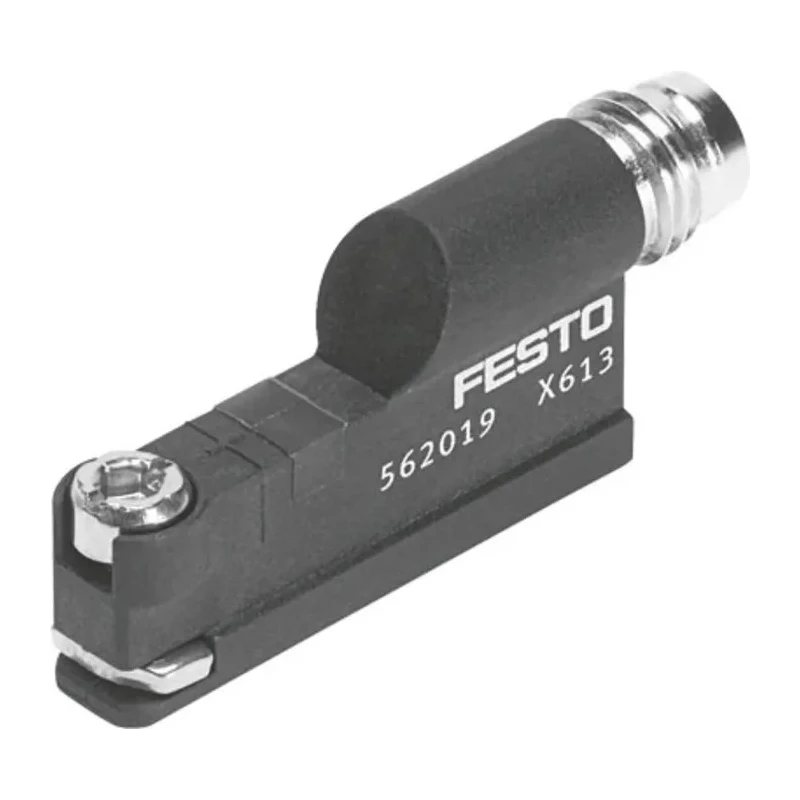

Festo Pneumatic Position Detector SMT-8-SL-PS-LED-24-B, IP65 IP68 Rated, 30V DC, LED Indicator
Specifications
| Country of Origin | Turkey |
|---|---|
| Voltage | 30V dc |
| Brand | Festo |
| Model | SMT-8-SL-PS-LED-24-B |
| IP Rating | IP65, IP68 |
| Housing Material | Brass, Nickel Plated Brass, High Alloy Stainless Steel, Polyamide, Polypropylene, Thermoplastic Elastomer, Thermoplastic Polyurethane Elastomer |
| Series | SMT |
| Maximum Operating Temperature | 70°C |
| Measurement Principle | Proximity Sensor |
| Minimum Operating Temperature | -20°C |
| For Use With | T-Slot |
| Output Function | Contact, NPN, Bipolar, PNP |
| Standards/Approvals | C-Tick, CE mark (see declaration of conformity), EN 60947-5-2, RoHS, cULus listed (OL), To EU EMC Directive |
| Electrical Connection Type | M8X1 |
| Switching Action | PNP |
Key Features
- The detector features an IP65 and IP68 rating for dust and water resistance.
- Operates safely between -20°C and 70°C for harsh environments.
- Lightweight design of 4.2 grams reduces strain on the cylinder.
- Threaded M8X1 connection allows convenient tool-free installation into T-slot cylinders.
- LED indicator offers clear status monitoring with yellow light.
- Built-in short-circuit protection safeguards device from fault currents.
- Housing materials include brass, nickel plated brass, stainless steel, and technical polymers for durability.
- Compatible with pneumatic cylinders requiring proximity sensing of magnetic fields.
Product Description
Festo SMT-8-SL-PS-LED-24-B pneumatic position detector is designed for precise sensing of pneumatic cylinder piston rod positions by detecting the rod's magnetic field. It offers reliable operation over a wide temperature range from -20°C to 70°C, enabling use in demanding industrial environments.
This detector comes with robust ingress protection ratings IP65 and IP68, ensuring complete dust resistance and protection against low-pressure water jets, making it highly suitable for oil and gas, mining, conveyor, and laboratory applications.
The lightweight 4.2-gram design minimizes mechanical load on the pneumatic cylinder, while the threaded M8X1 electrical connection allows easy, tool-free installation directly into the pre-cut T-slot of the cylinder body.
Constructed from a combination of brass, nickel-plated brass, high alloy stainless steel, polyamide, polypropylene, and thermoplastic elastomers, the device housing delivers mechanical robustness and thermal resistance.
The built-in LED indicator provides a bright yellow light for at-a-glance monitoring of piston position status, enhancing operational safety and process control. Additional features include integrated short-circuit protection to prevent damage from electrical faults, supporting uninterrupted industrial operations.
This pneumatic position detector complies with standards including C-Tick, CE mark, EN 60947-5-2, RoHS, and is cULus listed, affirming its quality and suitability for worldwide industrial use.
Festo's Pneumatic Position Detector SMT-8-SL-PS-LED-24-B is ideal for use in pneumatic cylinder applications across oil and gas sectors, mining equipment, conveyor systems, and research and development laboratories, where accurate piston rod detection is critical.
Choose this reliable and durable sensor for enhanced automation and control in hydraulic and pneumatic tooling environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates safely between -20°C and 70°C, making it suitable for harsh industrial environments.
The detector features IP65 and IP68 ratings, ensuring complete dust resistance and protection against low-pressure water jets.
It uses a threaded M8X1 electrical connection for easy, tool-free installation into T-slot cylinders.
The housing is constructed from brass, nickel-plated brass, high alloy stainless steel, polyamide, polypropylene, and thermoplastic elastomers.
This unit weighs 4.2 grams, which helps to minimize mechanical load on the pneumatic cylinder.
The output function is a contact type with NPN, bipolar, and PNP configurations.
It complies with C-Tick, CE mark, EN 60947-5-2, RoHS, and is cULus listed, affirming its quality for industrial use.
It operates as a proximity sensor, detecting the magnetic field of the pneumatic cylinder piston rod.
It is suitable for use in oil and gas sectors, mining equipment, conveyor systems, and laboratories where accurate piston rod detection is critical.
Yes, it includes integrated short-circuit protection to safeguard against electrical faults.
The built-in LED indicator provides a bright yellow light for clear status monitoring of the piston position.
It is designed for proximity sensing of magnetic fields, specifically for pneumatic cylinder applications.
