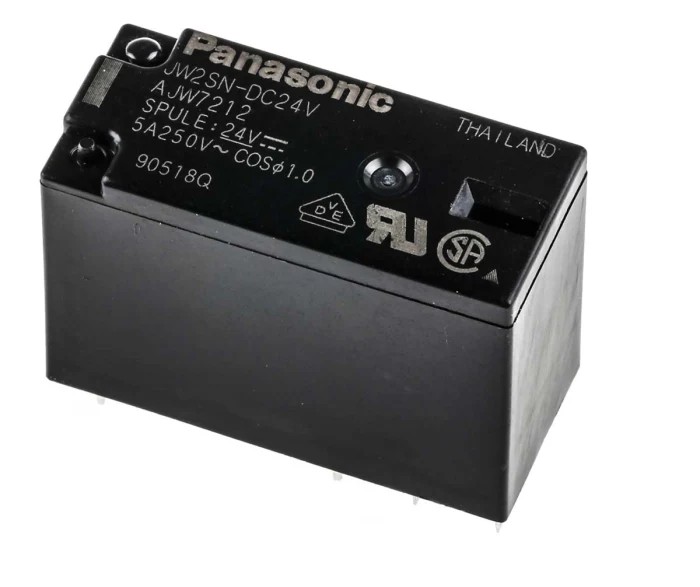

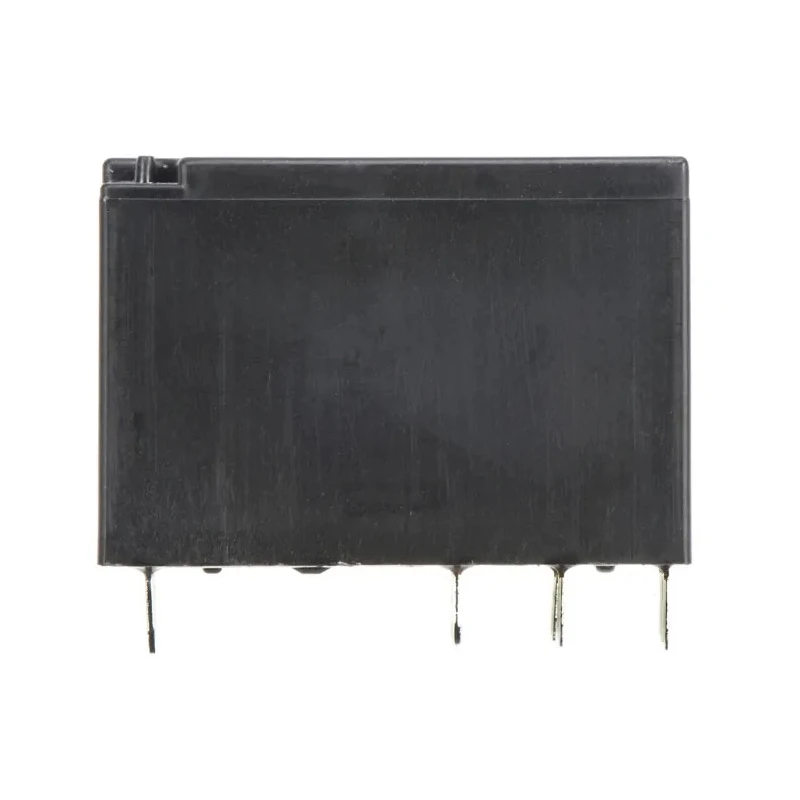

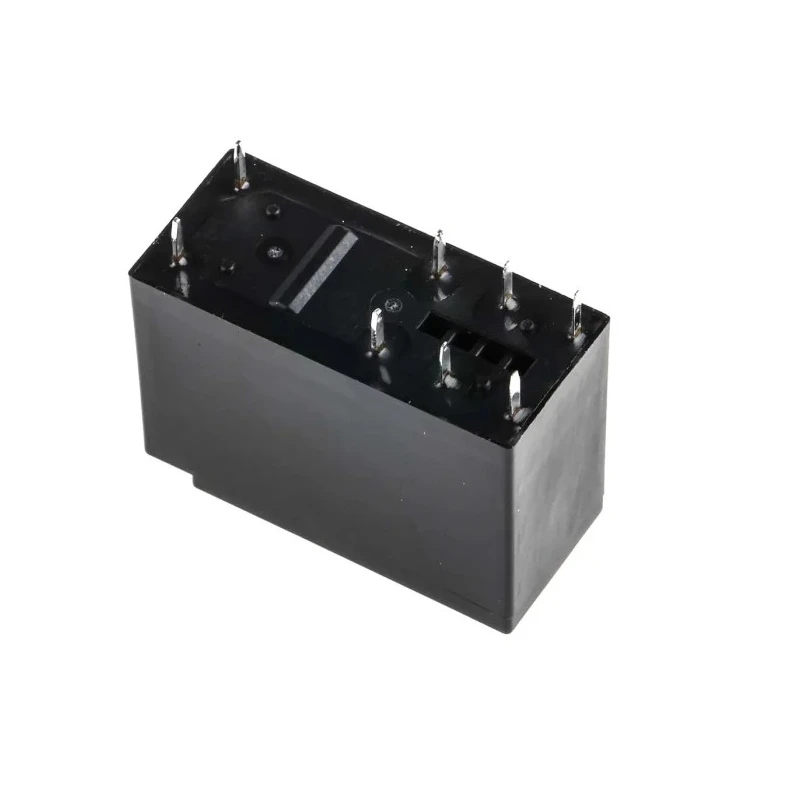

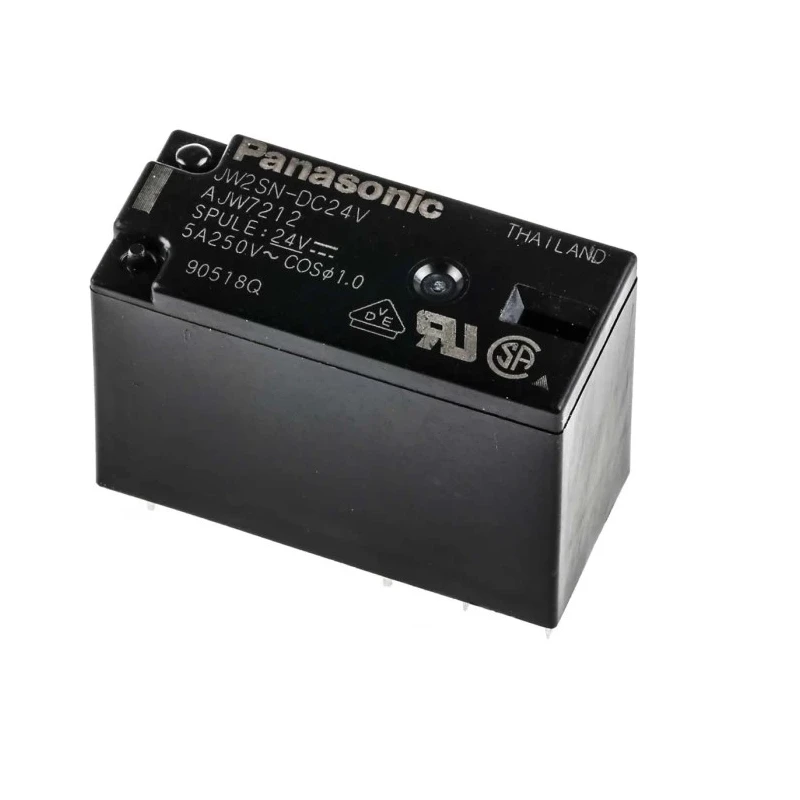

Panasonic PCB Power Relay 24V dc Coil 6mA Switching Current DPDT JW2SN-DC24V
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 20mm |
| Length | 28.6mm |
| Model | JW2SN-DC24V |
| Width | 12.8mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | JW |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6mA |
| Terminal type | Through Hole |
| Standards/Approvals | UL, CE, RoHS, VDE, TUV, IEC |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 130V ac |
| Coil Power | 4kW |
Key Features
- This relay is designed for PCB mounting with a universal terminal footprint.
- Operates reliably between -40°C and 60°C ambient temperatures.
- Has silver alloy contacts ensuring durability and effective conductivity.
- Compact sealed construction with dimensions of 28.6 x 12.8 x 20 mm.
- Certified for UL, CE, RoHS, VDE, TUV, and IEC standards for high safety and quality.
- Suitable for use in home appliances, industrial equipment, and office machines.
- High surge withstand voltage of 10,000V between contacts and coil for robustness.
- Through-hole terminal type simplifies PCB installation.
Product Description
Panasonic JW2SN-DC24V PCB Power Relay is a compact, sealed relay designed for PCB mounting applications. It operates with a 24V DC coil and supports a switching current of 6mA using a double-pole double-throw (DPDT) contact configuration.
This relay is part of the JW series, known for its high surge withstand capacity of up to 10,000V between coil and contacts, ensuring reliable operation in demanding environments. Its sealed construction protects internal components from contaminants, which makes it suitable for various industrial, manufacturing, and automation applications, including home appliances and office machines.
It features silver alloy contacts for enhanced conductivity and long operational life. The relay supports a switching AC voltage of up to 130V AC and coil resistance of 1.1 kΩ, with a coil power rating of 4 kW. Operational temperature ranges from -40°C to 60°C, enabling use in diverse ambient conditions.
The product follows stringent international standards including UL, CE, RoHS, VDE, TUV, and IEC approvals, ensuring compliance with safety and environmental regulations. Its dimensions are 28.6 mm in length, 12.8 mm in width, and 20 mm in height, providing a compact footprint that fits standard PCB layouts. The terminal type is through-hole for robust mechanical and electrical connections.
Made in Thailand, this Panasonic power relay is ideal for deployment in industrial automation, electrical equipment, HVAC controls, and other critical systems requiring reliable switching capabilities.
This relay is designed for PCB mounting with a universal terminal footprint. Operates reliably between -40°C and 60°C ambient temperatures. Has silver alloy contacts ensuring durability and effective conductivity. Compact sealed construction with dimensions of 28.6 x 12.8 x 20 mm.
Certified for UL, CE, RoHS, VDE, TUV, and IEC standards for high safety and quality. Suitable for use in home appliances, industrial equipment, and office machines. High surge withstand voltage of 10,000V between contacts and coil for robustness.
Through-hole terminal type simplifies PCB installation. Explore more Power Relay products at EnvMart for tailored solutions in automation and electrical control.
