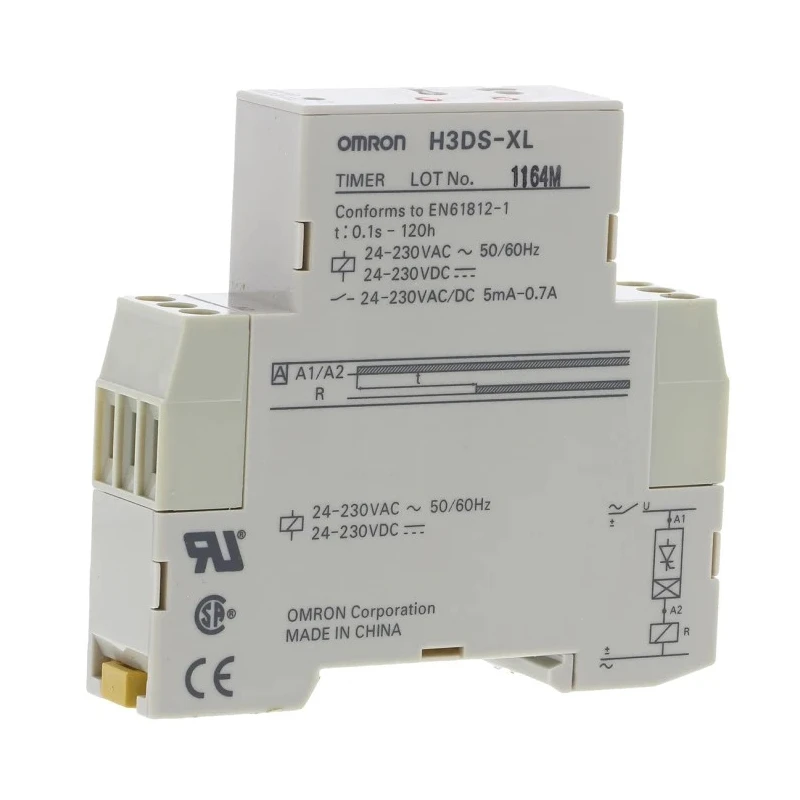

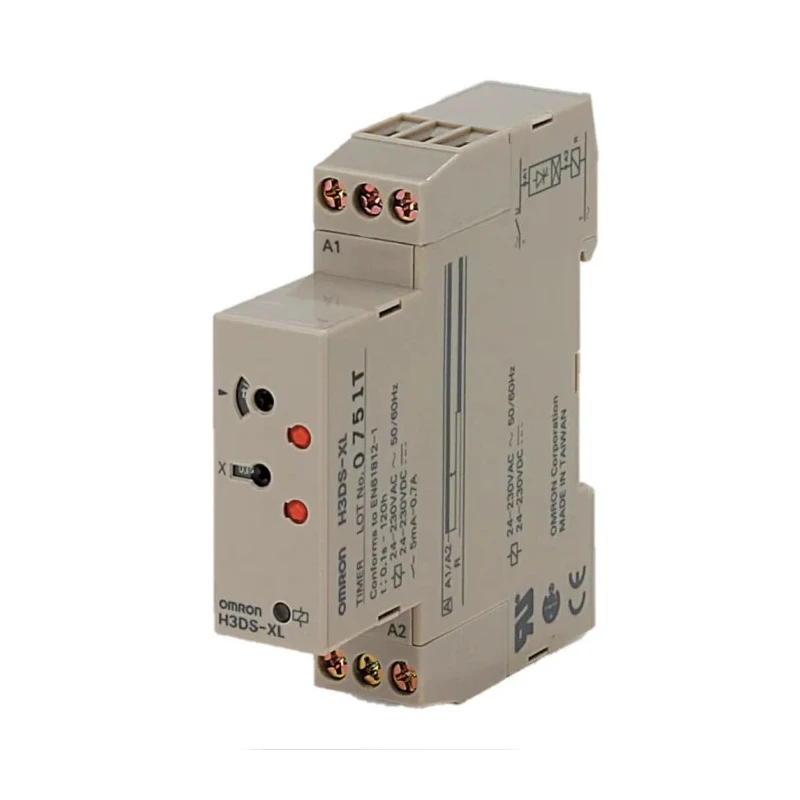

Omron DIN Rail Timer Relay, 1-Contact, 24 to 48 V dc 230V ac, 24 V ac, 0.1 s to 120 h, ON Delay H3DS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 73mm |
| Function | Timer, Valve |
| Length | 80mm |
| Model | H3DS |
| IP Rating | IP30 |
| Mode | ON Delay |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | H3DS |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 s to 120 h |
| Terminal type | Screw |
| Number of Contacts | 1 |
| Number of Timer Functions | 1 |
| Switching Voltage | 250V ac |
| Contact Current | 5A |
| Supply DC Voltage | 24 to 48 V dc |
| Timing Adjustment | Dial |
| Supply AC Voltage | 230, 24V ac |
Key Features
- Supports DIN rail mounting for easy installation and efficient space utilization.
- Features a single timer function with one contact rated for 5 A switching current.
- Adjustable timing via dial for flexible automation setups.
- Operates reliably within a temperature range of -10°C to 55°C.
- Equipped with screw terminals for secure and reliable wiring connections.
- Ag alloy contacts enhance operational longevity and durability.
- Wide supply voltage compatibility of 24 to 48 V DC and 24 to 230 V AC.
- Compact design with dimensions 17.5 mm width, 73 mm height, and 80 mm length.
Product Description

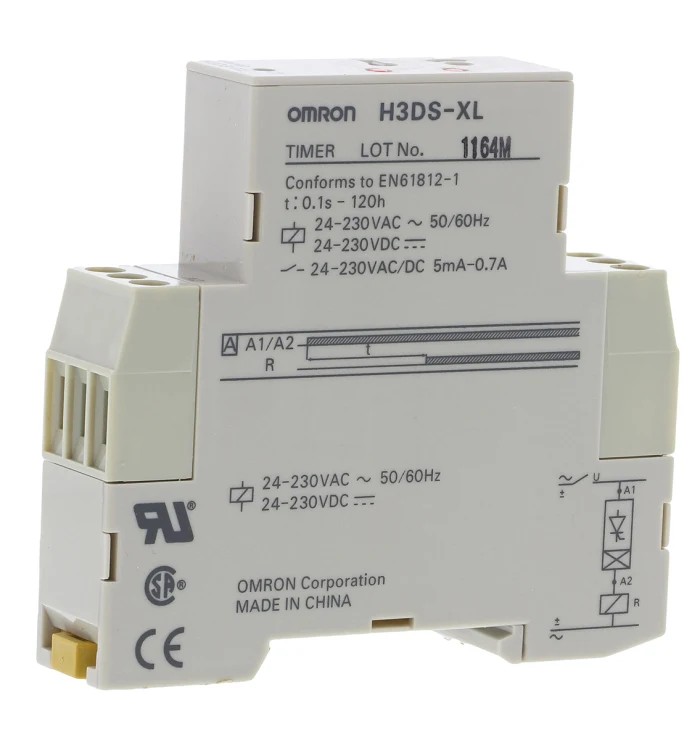

Omron H3DS-XL is a DIN Rail Timer Relay designed for precise ON Delay timing control across a wide voltage supply ranging from 24 to 230 V AC/DC and an adjustable time span from 0.1 seconds to 120 hours. This relay supports various industrial automation applications where accurate timing and reliable operation are essential.
The device mounts easily on DIN rails, making it suitable for compact control panels and efficient space management. Its single timer function with one contact rated at 5 A can handle typical industrial electrical switching needs safely.
Timing adjustments are conveniently set via a dial, offering flexibility for diverse automation scenarios. The relay operates efficiently in ambient temperatures ranging from -10°C to +55°C, ensuring reliable performance under varying environmental conditions.
This model features screw terminals for secure electrical connections and uses Ag alloy contacts to extend longevity by reducing contact wear. Its compact dimensions of 17.5 mm width, 73 mm height, and 80 mm length facilitate integration into a broad range of control systems.
Supports DIN rail mounting for streamlined installation. Single timer function with one contact rated at 5 A. Dial-adjustable timing ranging from 0.1 seconds to 120 hours. Wide supply voltage compatibility: 24 to 48 V DC, 24 to 230 V AC.
Operation temperature range of -10°C to 55°C ensuring robust use in industrial environments. Screw terminal connections for secure wiring. Ag alloy contacts provide durability and long service life. Complies with international standards: VDE0106/P100, EN61812-1, UL508, CSA C22.2 No.14, and IEC60664-1 (4 kV/2).
Compact size for space-optimized installations.
This relay is well suited for industrial automation, lighting control, motor start/stop sequence control, and HVAC system management. It ensures reliable and precise delay functions necessary for optimizing operational workflows and energy efficiency in commercial and industrial settings.
Explore the comprehensive range of Timer Relays at EnvMart for quality electrical automation components tailored to specific industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay operates within a supply voltage range of 24 to 48 V DC and 24 to 230 V AC.
This model features an adjustable timing range from 0.1 seconds to 120 hours, allowing for flexible automation setups.
It has a single contact rated for a maximum switching current of 5 A.
The relay has compact dimensions of 17.5 mm in width, 73 mm in height, and 80 mm in length.
The timer relay operates efficiently within a temperature range of -10°C to 55°C.
Timing adjustments are made conveniently via a dial, allowing for easy configuration.
It supports DIN rail mounting, facilitating easy installation and efficient space utilization.
The timer relay has an IP30 rating, indicating protection against solid objects greater than 2.5 mm.
It is equipped with screw terminals for secure and reliable wiring connections.
This relay complies with several international standards including VDE0106/P100, EN61812-1, UL508, CSA C22.2 No.14, and IEC60664-1 (4 kV/2).
It is well suited for industrial automation, lighting control, motor start/stop sequence control, and HVAC system management.
This model features a single timer function with one contact.
