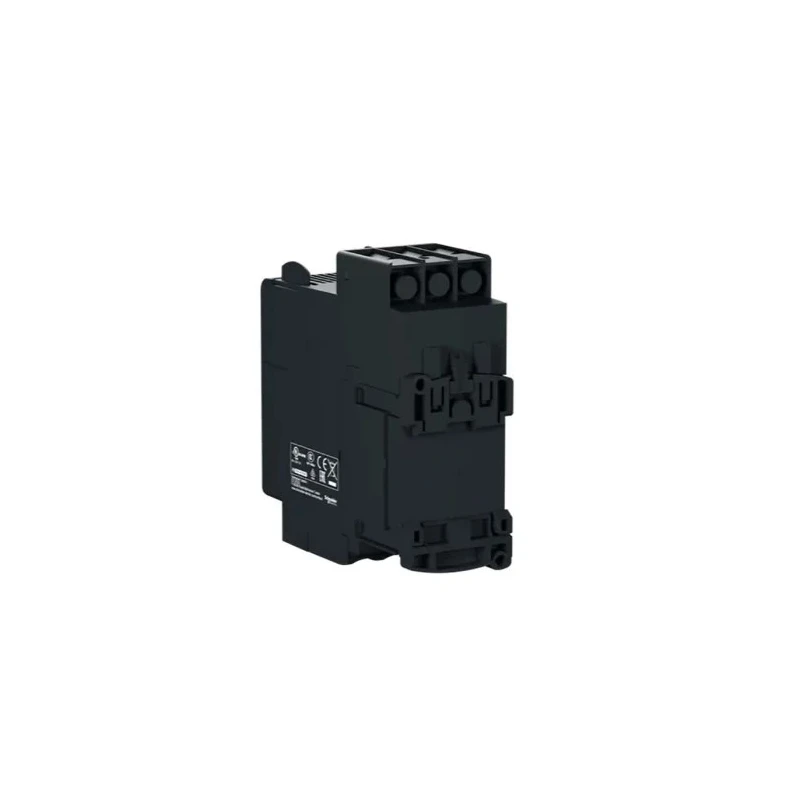

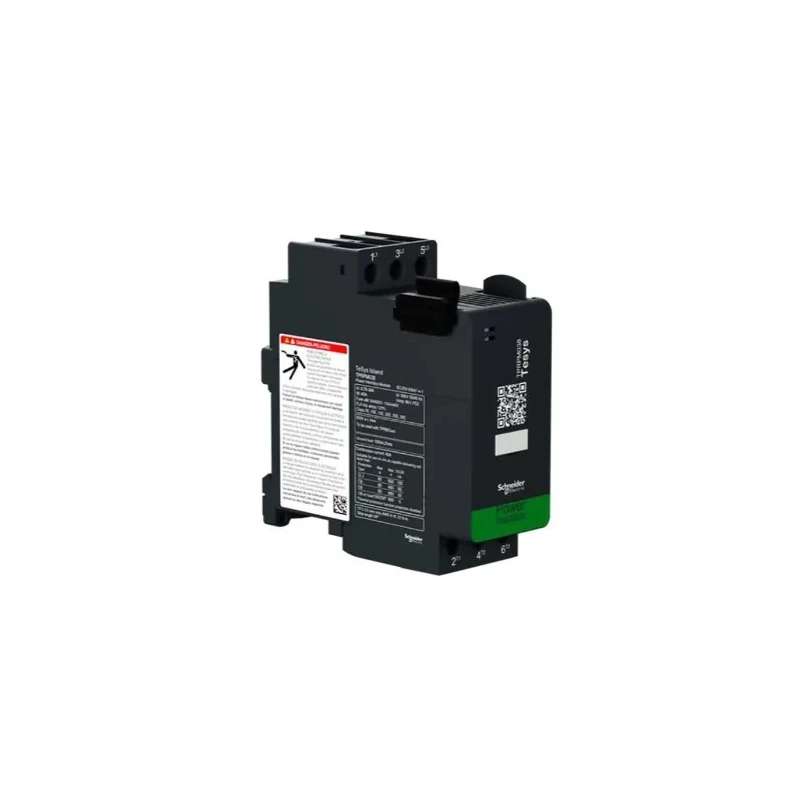

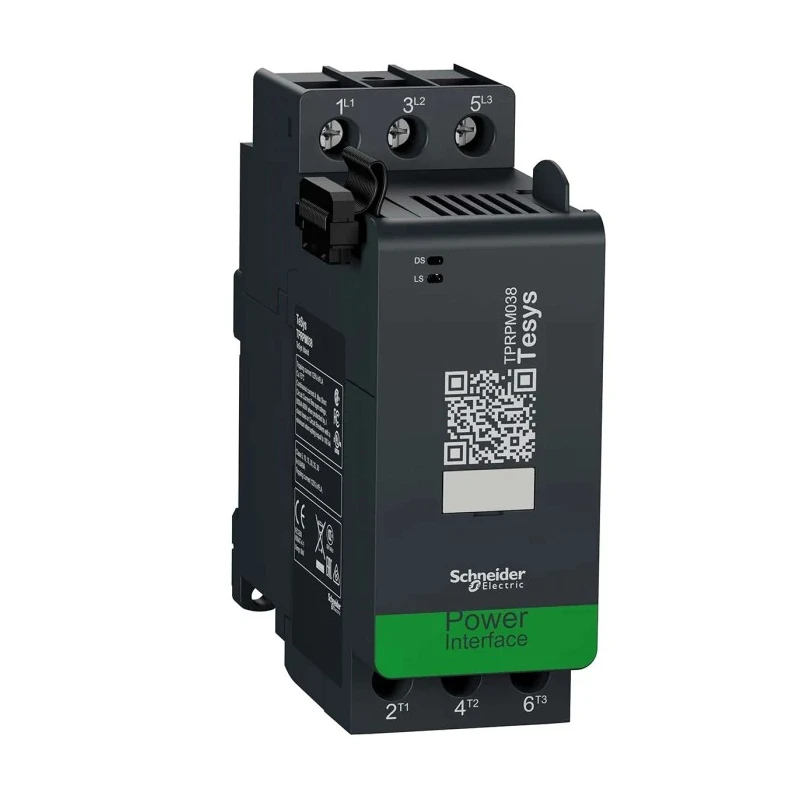

Schneider Electric Monitoring Relay 3 Phase 1 Phase DIN Rail Mount 690V AC 24 V DC TPRPM038

Schneider Electric TPRPM038 monitoring relay is a high-quality power interface module designed to provide reliable monitoring and control for industrial electrical systems. Suitable for 3 phase and single phase monitoring, this product mounts easily on DIN rails, allowing quick integration into control panels.

The module operates at a rated voltage of 690V AC and uses a 24 V DC supply, consuming only 0.9W power, making it energy-efficient and ideal for continuous operations. The screw clamp terminals facilitate secure electrical connections while ensuring user safety.

With an IP20 rating, the relay offers protection against solid objects, safeguarding delicate internal components. It supports a contact current of up to 38A, making it suitable for demanding applications that require robust switching capacity.

Engineered to operate reliably between temperatures of -60°C and 60°C, the TPRPM038 is built to withstand harsh industrial environments. This module adheres to internationally recognized standards including EN/IEC 60947-4-1, CSA C22.2 No 60947-4-1, and UL 60947-4-1, ensuring compliance and safety in use.

The compact physical dimensions of 121mm height, 115mm length, and 45mm width optimize space usage within control panels. Being part of the TeSys Island series, the TPRPM038 offers compatibility and integration ease with other system components such as bus couplers and I/O modules.

This relay is extensively used in industrial automation, manufacturing controls, HVAC systems, and electrical distribution networks requiring precise current and voltage monitoring. Its robust construction and compliance with multiple standards make it a dependable choice for advanced electrical control systems.

Designed for both 3 phase and single phase monitoring. DIN rail mount type ensures easy and secure installation. Rated operational voltage up to 690V AC with 24 V DC supply. Power consumption is low at 0.9W for energy efficiency.

Screw clamp terminal type allows secure wiring connections. IP20 rated for solid object protection ensuring safe usage. Operates within a temperature range of -60°C to 60°C. Contact current rating of 38A supports robust electrical loads.

Complies with EN/IEC 60947-4-1, CSA C22.2 No 60947-4-1, and UL 60947-4-1 standards. Compact dimensions with height 121mm, length 115mm, and width 45mm. Part of the TeSys Island series for advanced power modules. Explore more Schneider Electric Monitoring Relays and related automation solutions at EnvMart for efficient and reliable industrial control systems.
