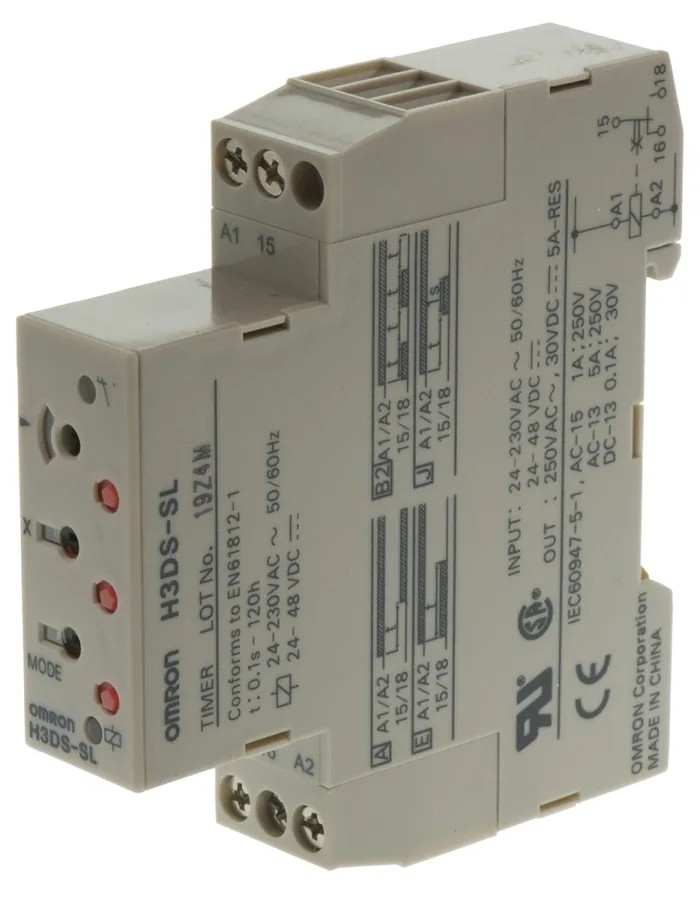

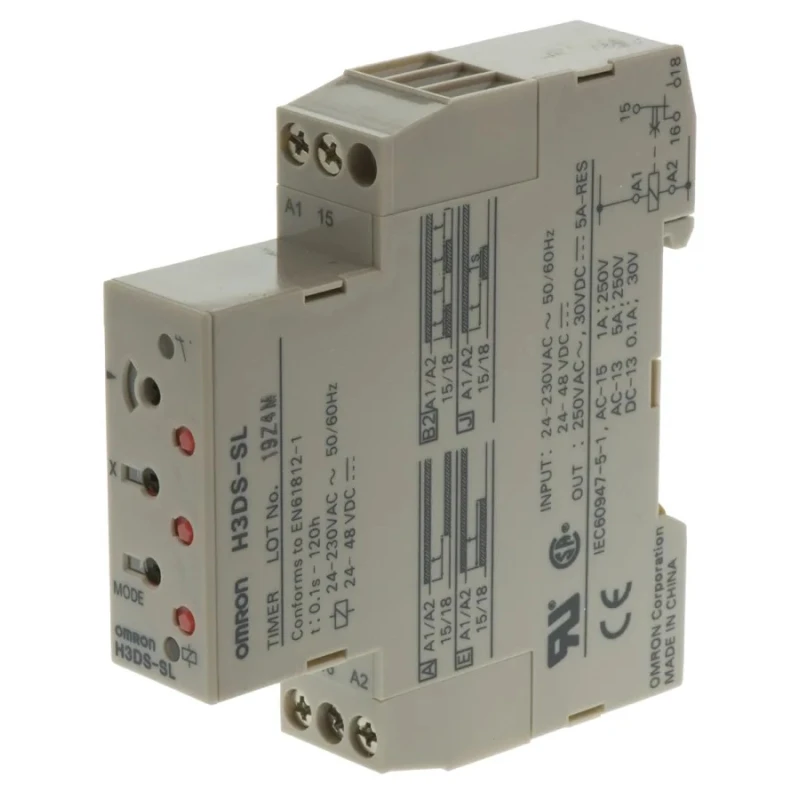

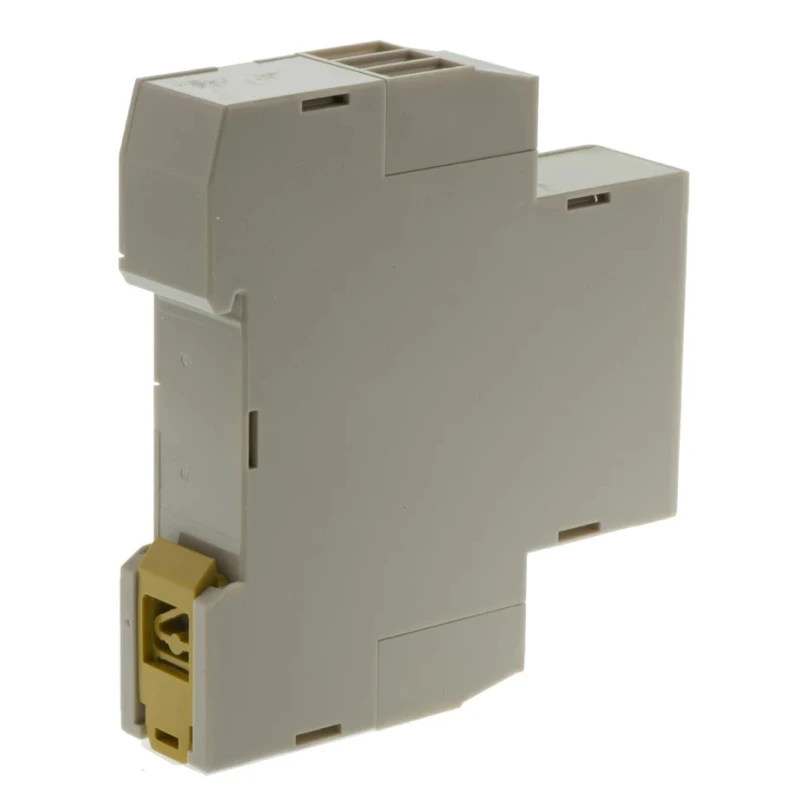

Omron DIN Rail Timer Relay Multifunction, SPDT, 1-Contact, 24 to 230 V AC/DC, 0.1 s to 120 h H3DS

Omron presents the H3DS Series DIN Rail Timer Relay, model H3DS-SL AC/DC, designed for reliable multifunction timing in automation and control systems. This timer relay supports a wide supply voltage range from 24 V to 230 V AC and 48 V DC, making it suitable for varied industrial applications.

The device features one SPDT (Single Pole Double Throw) contact, enabling versatile switching operations. Its multifunction timing capability offers adaptability with a time range spanning from 0.1 seconds to 120 hours, allowing precise control over time-dependent processes.

The compact form factor with dimensions of 80mm length, 73mm height, and 17.5mm width fits standard DIN rail panels, facilitating easy and space-saving installation. Screw terminals provide secure wiring connections ensuring reliable electrical contacts in demanding environments.

This timer relay is rated to handle up to 5 amperes of contact current, suitable for typical automation and control panel circuits. It is designed to operate in ambient temperatures ranging from -10°C to 55°C, ensuring performance stability across a range of industrial settings.

Safety and quality are assured through compliance with international standards including EN, CSA, and UR certifications. The IP30 rating protects the relay internals from solid objects greater than 2.5 mm, suitable for enclosed electrical cabinet environments.

Applications for the Omron H3DS timer relay include integration into industrial automation systems, HVAC control units, lighting control circuits, and motor control operations to manage time-sensitive functions accurately.

Designed for DIN rail mounting for convenient integration in control panels. Single SPDT contact ensures versatile switching capability. Wide timing range from 0.1 seconds to 120 hours supports multiple timing needs. Multifunction mode enhances operational flexibility.

Compatible with supply voltages of 24 to 230 V AC and 48 V DC. Screw terminal type ensures secure connections. Operating temperature range from -10°C to 55°C suits industrial use. Contact current up to 5 amperes for typical control load capacity.

Compact dimensions for efficient panel space utilization. Compliance with EN, CSA, and UR standards for safety and reliability. Explore the wide selection of high-quality Timer Relays and other relay products at EnvMart for your industrial and automation requirements.
