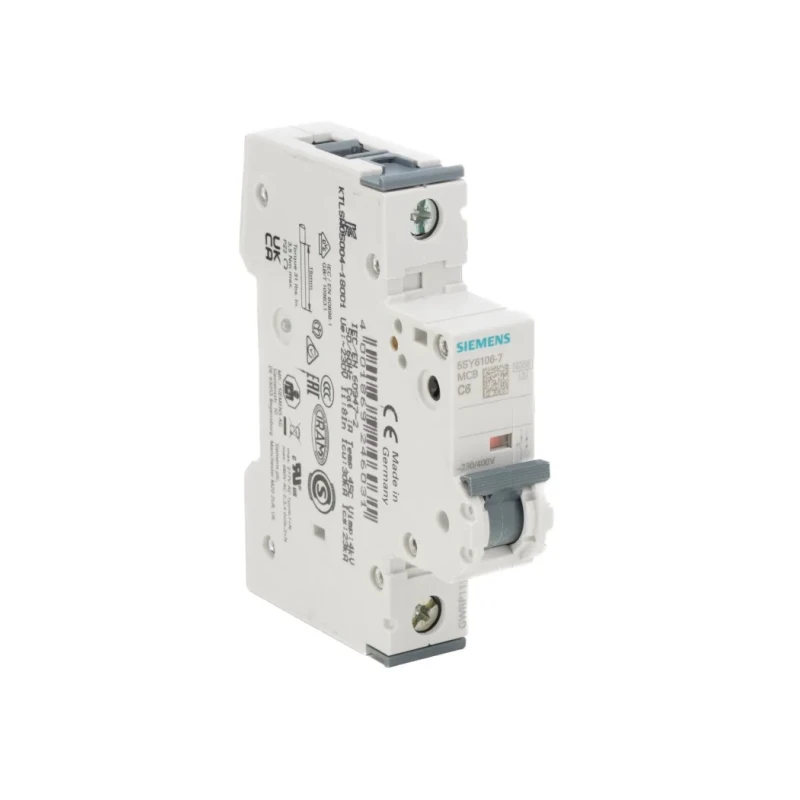

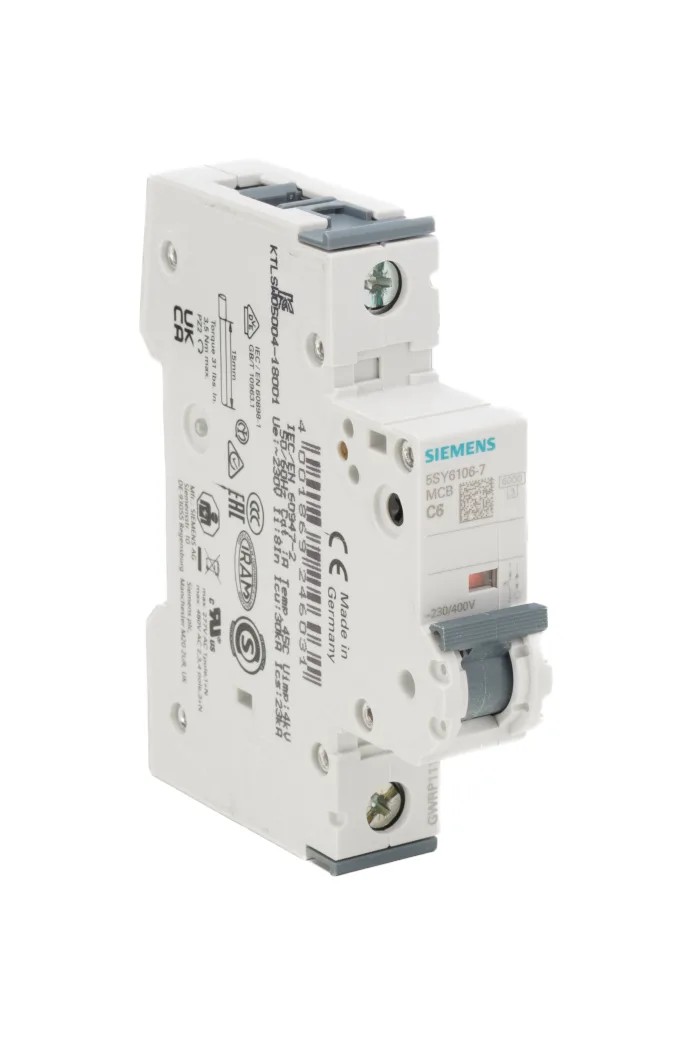

RS PRO SENTRON Miniature Circuit Breaker 1-Pole 6A Type C 400V AC 72V DC 6 kA Breaking Capacity 5SY6106-7

Siemens 5SY6106-7 SENTRON Miniature Circuit Breaker is a 1-pole breaker rated for 6 amps with Type C trip characteristics, suitable for protecting electrical equipment from short circuits and overloads. It is designed for AC voltage of 400V and DC voltage of 72V, with a breaking capacity of 6kA, making it robust for industrial and commercial electrical installations.

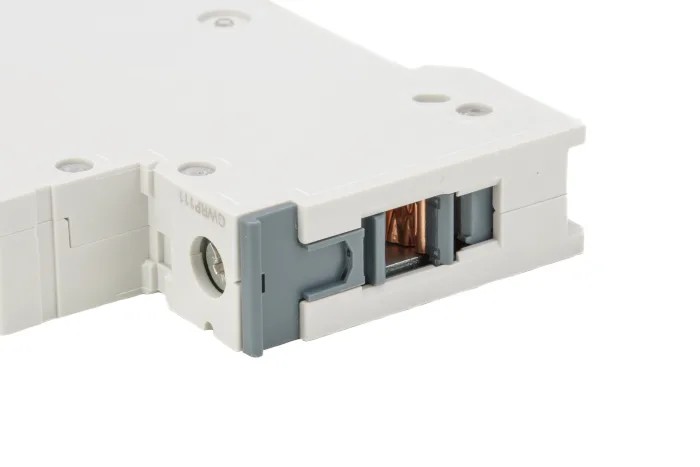

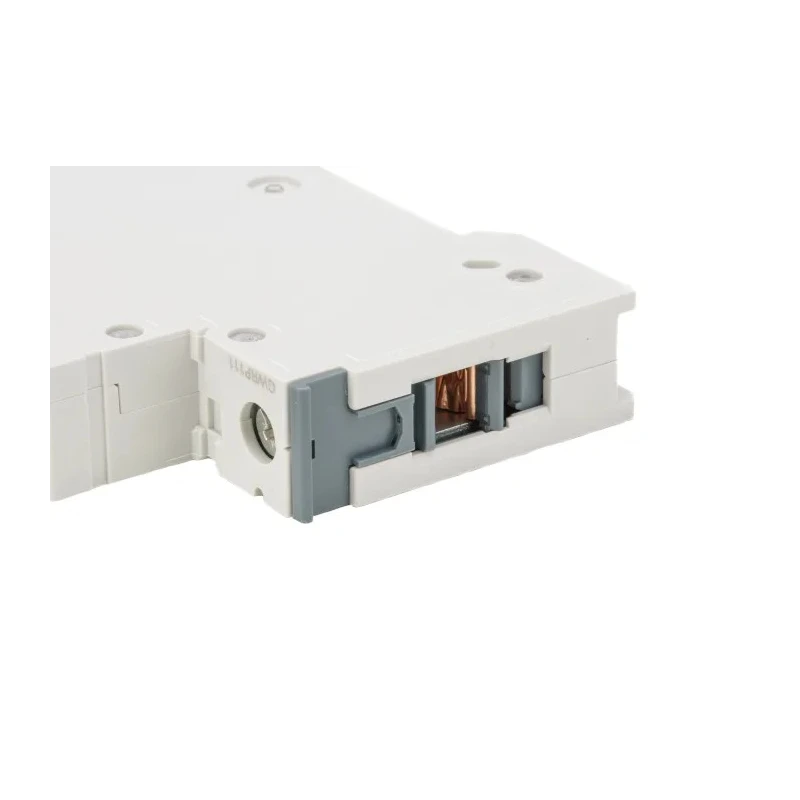

The device installs easily on DIN rails and features a screw terminal type for secure electrical connections. Its compact size (17.5mm width, 76mm height, and 76mm depth) allows installation in limited panel space. The breaker operates reliably between -25°C and +55°C, covering a wide range of environmental conditions.

With an IP20 ingress protection rating, the breaker is protected against solid foreign objects greater than 12mm, making it safe for indoor electrical panels. The product’s lightweight design at just 162 grams reduces mechanical stress on mounting structures.

The mechanical durability is assured with 20,000 switching cycles, ensuring a long service life, while the reset switch provides straightforward operation without special tools. Compliance with international standards such as EN 60898, VDE 0641 part 11, and IEC 60898 highlights its quality and safety credentials.

This Miniature Circuit Breaker is ideal for electrical distribution systems in manufacturing plants, commercial buildings, and industrial maintenance, providing essential protection for circuits against electrical faults. Its quick assembly design streamlines installation, enhancing maintenance efficiency in electrical panels.

Designed to trip at 5 to 10 times rated current for surge protection. Breaking capacity of 6kA ensures durability against short circuits. Supports both 400V AC and 72V DC rated voltages. Compact design with dimensions 17.5mm width, 76mm height, and 76mm depth.

Features quick assembly and DIN rail mount for easy installation. Operating temperature range from -25°C to +55°C for versatile environment use. IP20 rating provides touch protection and resistance to objects larger than 12mm.

Lightweight at 162 grams minimizes system strain. Long mechanical lifespan of 20,000 switching cycles guarantees longevity. Reset switch enables user-friendly operation. Explore more Siemens electrical protection devices and circuit breakers on EnvMart for comprehensive industrial and commercial electrical safety solutions.
