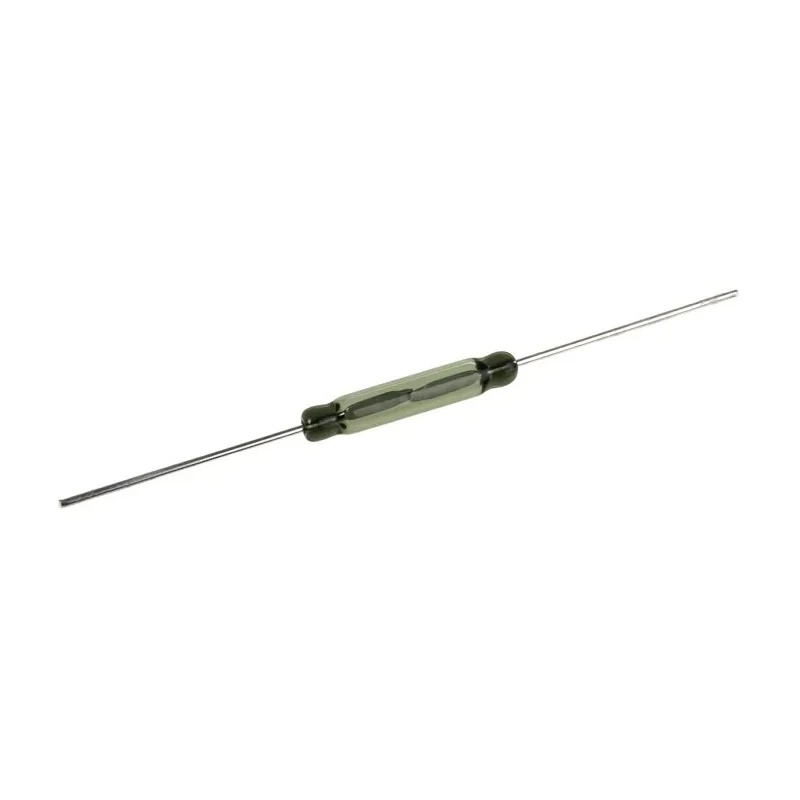

Assemtech SPST PCB Reed Switch 500 mA 200 V dc RI-03A

Free Delivery in India | Lowest Global Shipping Charges

Assemtech SPST PCB Reed Switch 500 mA 200 V dc RI-03A

Name: Assemtech SPST PCB Reed Switch 500 mA 200 V dc RI-03A
Brand: Assemtech
SKU: 328363
Price: 75.21 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Netherlands
Brand	Assemtech
Length	14.5mm
Model	RI-03A
Width	2.54mm
Mount Type	PCB
Contact Material	Rhodium
Series	RI
Maximum Switching Current	500mA
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Minimum Operating Temperature	-55°C
Terminal type	Wire
Contact Resistance	120mΩ
Maximum Switching Power	10W
Standards/Approvals	ISO
Maximum Switching Voltage	200V dc
Maximum Release Time	30μs
Operating Time Including Bounce	0.15ms
AT Value Range	18 to 32 AT
Assemtech SPST PCB Reed Switch 500 mA 200 VBrand	Assemtech

Key Features

Hermetically sealed in a gas-filled glass envelope for durability and reliability.
Maximum switching current of 500 mA and maximum voltage of 200 V dc ensures efficient operation.
Contact resistance of 120 mΩ with rhodium-plated contacts for enhanced conductivity.
Fast switching times with a maximum release time of 30 microseconds and operating time including bounce at 0.15 milliseconds.
Operates reliably over a temperature range from -55°C to 125°C for versatile industrial use.
Compact dimensions of 14.5 mm length and 2.54 mm width, suitable for PCB mounting.
Complies with ISO standards and is manufactured in the Netherlands.

Product Description

Assemtech RI-03A SPST PCB Reed Switch 500 mA 200 V dc is a high-quality reed switch hermetically sealed inside a gas-filled glass envelope, designed for precise switching applications in industrial, electrical, and automation systems.

This switch features a single pole, single throw (SPST) normally open contact configuration with rhodium plated contacts to ensure superior contact performance and reliability. With a maximum switching current of 500 mA and a maximum switching voltage of 200 V dc, it can efficiently handle moderate power loads in PCB mounted circuits.

The device provides fast operating characteristics with a maximum release time of 30 microseconds and an operating time including bounce of 0.15 milliseconds. These fast switching times are suitable for timing-critical applications.

Its robust construction tolerates extreme temperatures ranging from -55°C to 125°C, allowing operation in harsh industrial environments.

The compact form factor, with a length of 14.5 mm and width of 2.54 mm, along with wire terminals and PCB mounting style, facilitates easy integration into existing electronic assemblies.

Manufactured under ISO standards in the Netherlands, this reed switch ensures consistent quality and long mechanical life rated at 10^8 operations. Hermetically sealed gas-filled glass envelope for enhanced durability. Single pole, single throw (SPST) contact configuration.

Maximum switching current of 500 mA and power of 10 W. Rhodium plated contacts for low contact resistance of 120 mΩ. Fast switching release time of 30μs and operating time including bounce of 0.15 ms. Wide operating temperature range from -55°C to 125°C.

Compact dimensions of 14.5 mm length and 2.54 mm width. Complies with ISO standards and manufactured in the Netherlands.

This Reed Switch is ideal for industrial, electrical automation, HVAC, manufacturing, and electronic device applications requiring reliable, precision switching with low current and voltage capacities.

Explore more precision switches and electrical components in EnvMart’s Electronics & Electricals Switches category for comprehensive solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum switching current for this model is 500 mA, and it can handle a maximum voltage of 200 V dc.

This reed switch features a single pole, single throw (SPST) normally open contact configuration.

The dimensions of this model are 14.5 mm in length and 2.54 mm in width, making it suitable for PCB mounting.

It has a contact resistance of 120 mΩ, which is achieved through rhodium-plated contacts for enhanced conductivity.

The operating temperature range for this reed switch is from -55°C to 125°C, allowing it to function in harsh environments.

The maximum release time for this switch is 30 microseconds, and the operating time including bounce is 0.15 milliseconds.

This reed switch is manufactured in the Netherlands and complies with ISO standards.

It features wire terminals, which facilitate easy integration into electronic assemblies.

The maximum switching power of this reed switch is 10 W, suitable for moderate power loads.

This reed switch is ideal for applications in industrial, electrical automation, HVAC, manufacturing, and electronic devices requiring reliable switching.

The mechanical life of this model is rated at 10^8 operations, ensuring long-term reliability in use.

The contact material is rhodium, which enhances conductivity and performance in switching applications.
