Crydom 1 Series Solid State Relay Panel Mount, 110 A Load, 280 Vrms Load, 280V Control A24110PG

The Crydom A24110PG 1 Series Solid State Relay is engineered for demanding industrial applications requiring reliable and efficient AC load switching. This relay supports a maximum load current of 110 amperes and a load voltage up to 280 Vrms, making it suitable for high power control applications. It is designed for panel mounting with secure screw terminal connections, facilitating easy integration into control panels.

The device operates with control voltages between 90V AC and 280V while requiring a minimum load voltage of 24V AC. Its zero voltage switching functionality ensures switching occurs at the zero-crossing point of the AC waveform, minimizing electromagnetic interference and extending load life. The rugged design supports an operating temperature range from -40°C to 80°C, allowing deployment in harsh industrial environments.

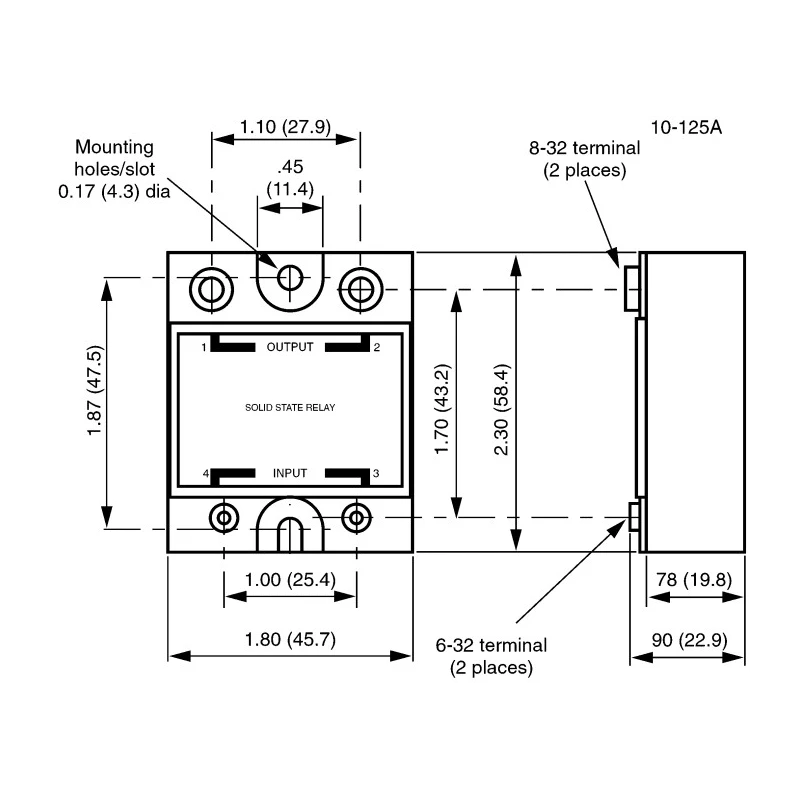

With compact dimensions (22.9 mm height, 22.6 mm width, 58.4 mm length), this panel mount relay fits efficiently within limited spaces. The 10mA off-state leakage current contributes to lower power loss during the off state. It integrates built-in overvoltage and transient protection to safeguard connected equipment against electrical spikes.

The relay utilizes a Silicon Controlled Rectifier (SCR) as output, providing durable and stable switching performance. An input-to-output capacitance of 8 pF helps minimize noise and signal interference in sensitive control circuits. Certified to comply with RoHS standards, the product aligns with global environmental and safety regulations.

This solid state relay is suitable for a wide range of industrial, automation, electrical, and control panel applications where efficient and silent AC switching is critical. Its robust design and technical features meet the demands of manufacturing, HVAC control, machinery automation, and industrial process control systems.

Capable of handling maximum load current of 110 amperes effectively. Panel mount type with screw terminals ensures secure installation. Operates with minimum load voltage of 24V AC and control voltage range from 90V AC up to 280V.

Features zero voltage switching function for reliable AC load switching. Compact dimensions of 22.9mm height, 22.6mm width, and 58.4mm length suitable for panel integration. Explore more Solid State Relays and related control products in the Electronics & Electricals category on EnvMart.
