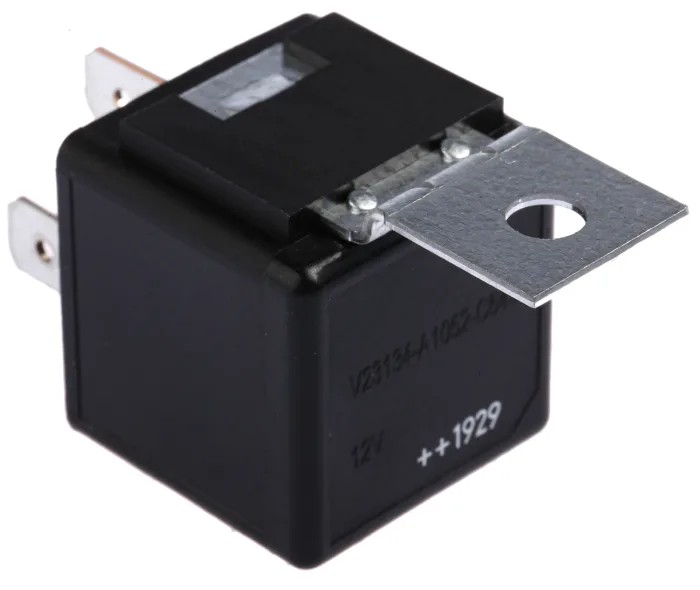

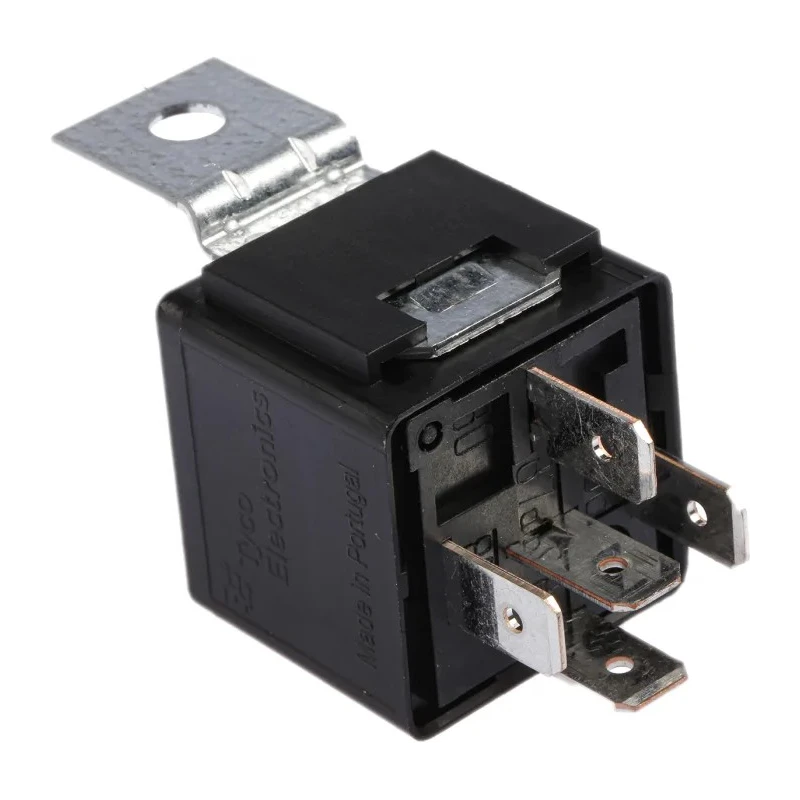

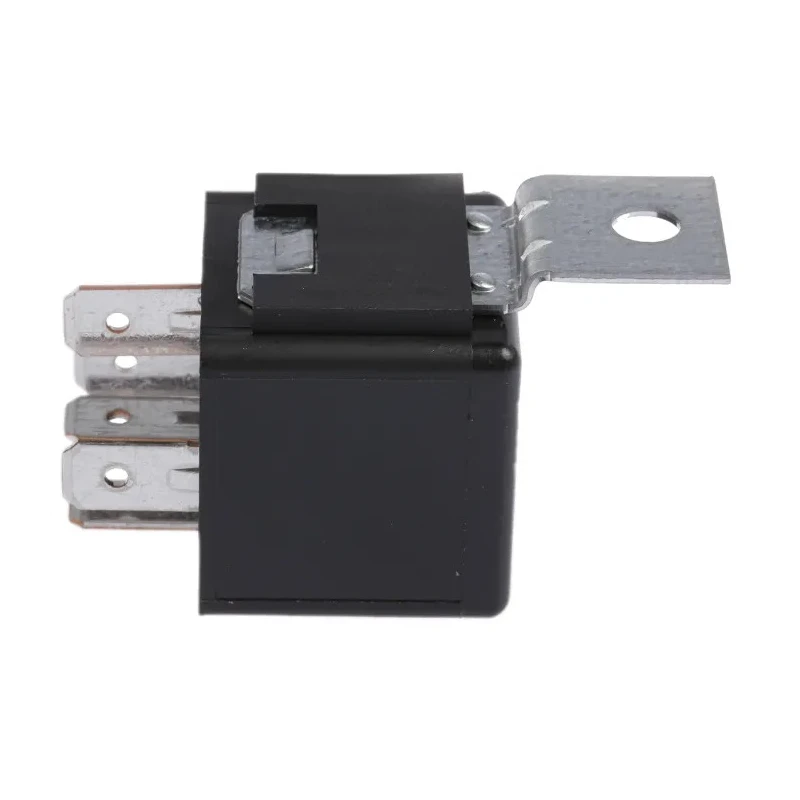

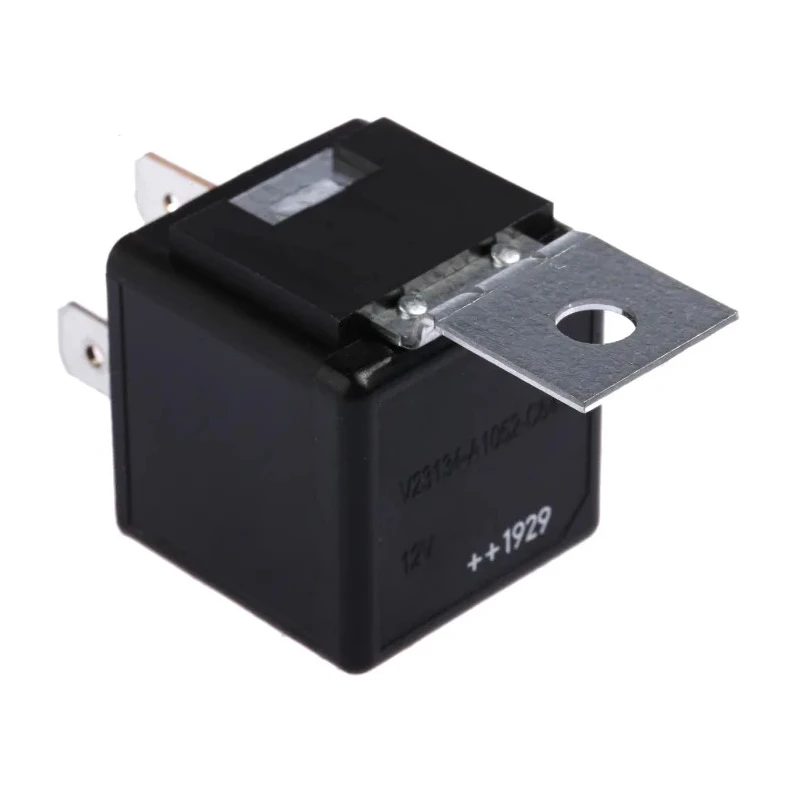

TE Connectivity Automotive Relay 12V DC Coil Voltage 40A Switching Current SPDT V23134A1052C643 5-1393302-8
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 51.9mm |
| Length | 25.9mm |
| Model | V23134A1052C643 5-1393302-8 |
| Depth | 29.9mm |
| Contact Material | Silver |
| Series | F4 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 90Ω |
| Coil Power | 1.6W |
| Isolation Coil To Contact | 500V |
| Panasonic Automotive Relay, 12V dc Coil, 40A Switching Current, SPDTBrand | Panasonic |
Key Features
- Compact automotive relay designed for versatile vehicle electrical applications.
- Features quick connect terminal types for easy installation and reliable connections.
- Operates reliably between -40°C and 125°C temperature range.
- F4 series relay with integrated components and silver contact material for durability.
- Offers isolation coil to contact withstand voltage of 500V for safety and performance.
- Ideal for automotive use in ignition lock, lamp load, exhaust emission control, ABS, fuel pump, and steering systems.
- Mini ISO automotive relay design with dimensions 51.9mm height, 29.9mm depth, and 25.9mm length.
- Non-latching monostable relay ensuring stable operation across applications.
Product Description
TE Connectivity V23134A1052C643 5-1393302-8 is a high-quality automotive relay engineered for various vehicle electrical control systems. This relay operates at 12V DC coil voltage and supports a switching current of up to 40A with a reliable SPDT contact configuration, making it suitable for robust automotive usage.
The relay is part of the F4 series of Mini ISO automotive relays, designed to withstand harsh automotive environments. Featuring integrated components and protected against dust to IP54 standards, it ensures longevity and stable operation in demanding conditions.
Key technical specifications include a coil power rating of 1.6W and coil resistance of 90 ohms. The contact material is silver, chosen for its excellent conductivity and durability. The relay maintains stable performance within temperature ranges from -40°C up to 125°C, suitable for diverse automotive climates.
Installation is simplified by quick connect terminal types that facilitate plug-in connections without the need for soldering. The relay dimensions (Height: 51.9mm, Depth: 29.9mm, Length: 25.9mm) allow for compact mounting in tight spaces typical of automotive assemblies.
This relay’s applications include ignition lock systems, headlamp control, exhaust emission regulation, ABS, fuel pump management, electric power steering, wiper control, car alarm systems, and blower fans. As a non-latching (monostable) relay, it ensures default safe operation modes in vehicle circuits.
The relay boasts an isolation voltage of 500V between coil and contacts, ensuring operational safety and electromagnetic compatibility within vehicle electronics. Manufactured in Portugal, it meets ISO 7880 and ISO 7588 automotive standards.
Compact design with integrated components for automotive reliability. Quick connect terminals enable easy, secure installation. Durable silver contacts for long service life and performance. Temperature tolerance ranges from -40°C to 125°C for diverse environmental use.
High isolation coil-to-contact voltage of 500V for safety. Versatile applications in ignition, lighting, steering, and safety systems. Non-latching, monostable operation for fail-safe automotive circuits. Mini ISO F4 series series compliant with automotive standards.
Explore more Automotive Relays and electrical components in EnvMart’s extensive catalog to find solutions tailored to your vehicle's requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive relay operates at a coil voltage of 12V DC.
It supports a maximum switching current of up to 40A.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
The relay has dimensions of 51.9mm in height, 25.9mm in length, and 29.9mm in depth.
It operates reliably within a temperature range of -40°C to 125°C.
The isolation voltage between the coil and contacts is 500V.
It utilizes quick connect terminal types for easy installation.
The coil resistance is 90 ohms.
The contacts are made from silver, which provides excellent conductivity and durability.
This relay is manufactured in Portugal.
This relay is suitable for applications such as ignition lock systems, headlamp control, and fuel pump management.
It belongs to the F4 series of Mini ISO automotive relays.
