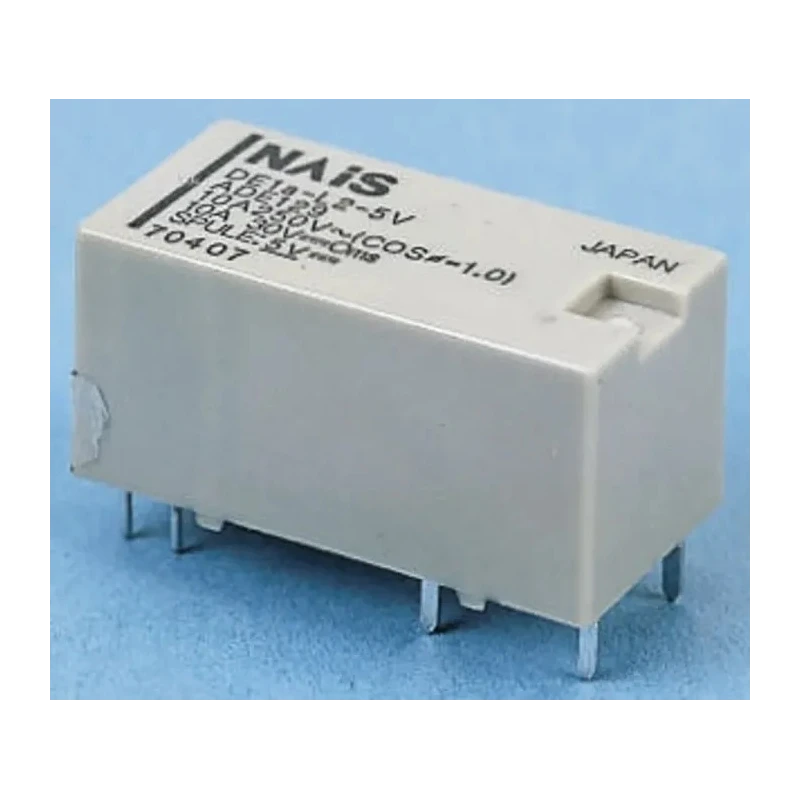

Panasonic PCB Power Relay 5V DC Coil 8A Switching Current SPST DE1AL25D

Panasonic DE1AL25D PCB Power Relay features a 5V DC coil voltage and an 8A switching current rating in a compact and robust package suitable for various electrical and automation applications.

This relay utilizes a single pole single throw (SPST) contact configuration and is designed for PCB mounting with through-hole terminals for secure and reliable connections. The device measures 25mm in length, 12.5mm in width, and 12.5mm in height, making it suitable for compact printed circuit board designs.

Designed to operate efficiently within a temperature range of -40°C up to 70°C, it ensures reliable switching performance under diverse environmental conditions. The contact material is silver alloy, providing excellent conductivity and durability for extended relay life.

The DE1AL25D relay supports switching powers up to 2.5kVA and can handle switching voltages up to 230V DC and 440V AC, which enables it to manage a wide range of electrical loads in industrial and commercial contexts.

Its bistable 2-coil design allows direct control of strip lights, air conditioning units, and similar electrical devices. The relay provides galvanic separation between inputs and outputs with an 8 mm leakage path, enhancing safety by preventing unwanted electrical conduction.

This product meets internationally recognized safety and quality certifications including VDE, IEC, RoHS, CE, UL, and TUV, assuring compliance with industrial standards. Coil voltage is 5 volts DC ensuring compatibility with low voltage circuits.

Single pole single throw (SPST) contact configuration for straightforward switching. Maximum switching current rating of 8 amperes suitable for moderate loads. Compact PCB mount through-hole design measuring 25mm length by 12.5mm width and height.

Operates safely between temperature ranges from -40°C to 70°C. Silver alloy contact material ensures excellent conductivity and wear resistance. Switching capacity includes up to 2.5 kVA and voltages of 230V DC and 440V AC.

Bistable 2-coil relay enables direct control of strip lighting and air conditioning circuits. Complies with international standards including VDE, IEC, RoHS, CE, UL, and TUV for quality assurance.

This Panasonic PCB power relay is an ideal choice for industrial, automated control, HVAC systems, and general electronics applications where reliable switching at low voltages and moderate currents is essential. Explore our extensive Power Relay category on EnvMart for compatible components and related products.
