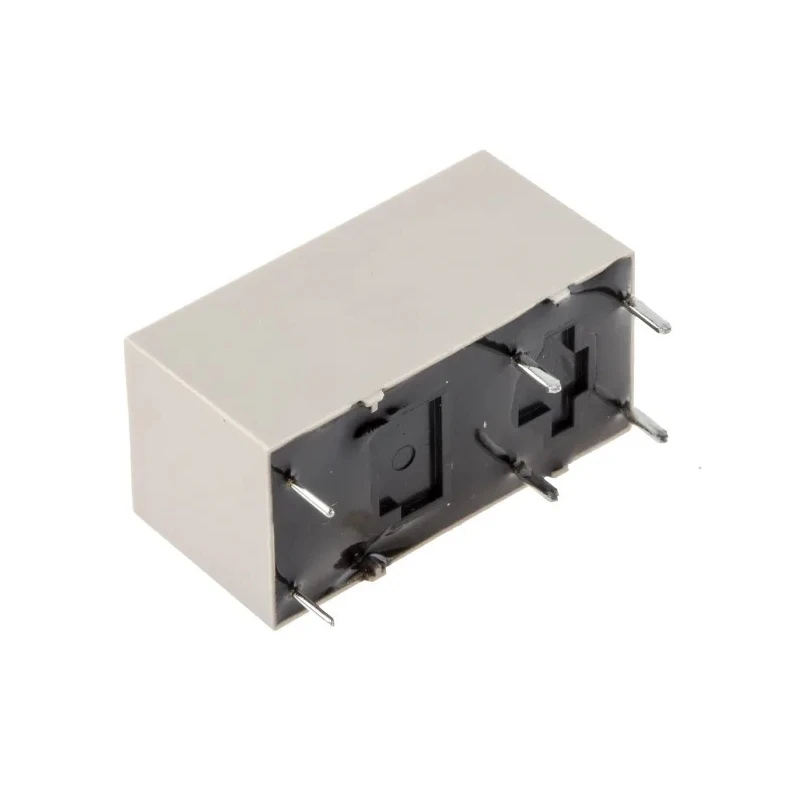

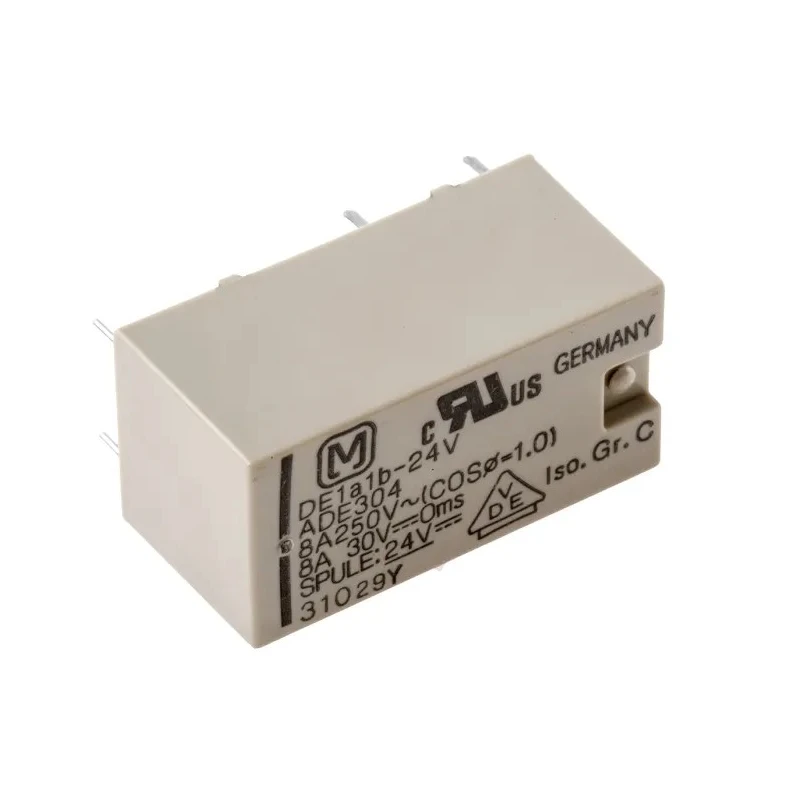

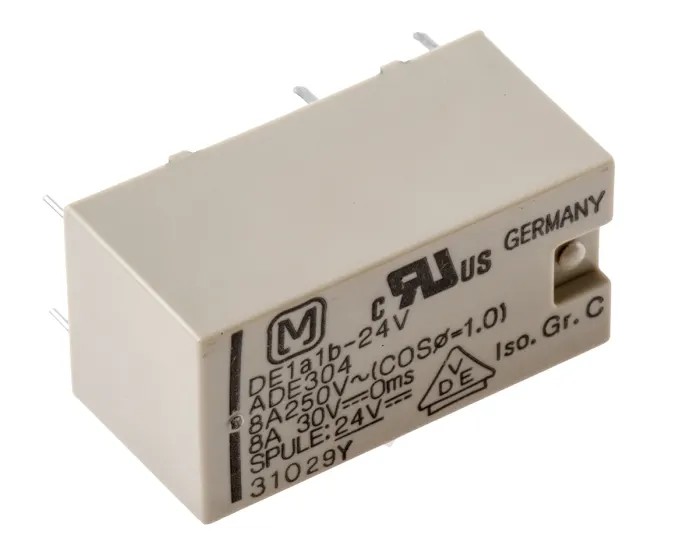

Panasonic DE Series Power Relay PCB Mount DPST Through Hole Terminal Type DE1A1B24D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 12.5mm |
| Length | 25mm |
| Model | DE1A1B24D |
| Width | 12.5mm |
| Mount Type | PCB |
| Series | DE |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
Key Features
- Compact DE series relay designed for direct control of strip lights and air conditioning systems.
- Provides galvanic separation between input and output with an 8 mm leakage path for safety.
- Features linked contacts to prevent malfunctions and ensure enhanced safety.
- Breaking contacts are engineered to never close simultaneously, ensuring safe operation.
- Mount type is designed for PCB mounting with a through hole terminal configuration for reliable connections.
- Complies with RoHS standards confirming environmental safety and component compliance.
- Physical dimensions include a length of 25mm, width and height of 12.5mm each.
- Suitable for automation, electrical, and signal conditioning applications.
Product Description
Panasonic DE1A1B24D power relay from the DE series is a compact, high-performance device designed for PCB mounting and direct control of electronic devices like strip lights and air conditioning units.
This DPST relay features through hole terminals and delivers galvanic isolation between coil input and output with an 8 mm leakage path, ensuring compliance with safety standards and robust operation.
Operating temperature ranges from -40°C to 70°C, allowing reliable performance in various environmental conditions. Enhanced safety is provided by linked contacts that eliminate malfunction risks and breaking contacts that cannot be closed simultaneously, maintaining operational integrity.
The relay complies with RoHS environmental regulations, guaranteeing adherence to industry norms for hazardous substances. Physical dimensions are compact with a length of 25mm, and width and height of 12.5mm each, optimizing PCB space usage.
Compact DE series relay for direct strip light and air conditioning control. Galvanic isolation with 8 mm leakage path ensures safety. Linked contacts prevent contact malfunctions. Breaking contacts cannot be closed simultaneously.
PCB mount with through hole terminal type. RoHS compliant for environmental safety. Operating temperature range from -40°C to 70°C. Dimensions: 25mm length, 12.5mm width and height. Suitable for automation and electrical control applications.
This power relay suits industrial, automation, and electrical applications including HVAC controls and signal conditioning setups. Explore EnvMart's broad range of Power Relays and related products for optimized system integration and dependable electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay features a Double Pole Single Throw (DPST) contact configuration, allowing it to control two separate circuits.
This model has a length of 25mm, and both a width and height of 12.5mm, making it compact for PCB mounting.
The relay operates within a temperature range of -40°C to 70°C, suitable for various environmental conditions.
It is designed for PCB mounting with a through hole terminal configuration, ensuring reliable connections.
Yes, the DE1A1B24D relay complies with RoHS standards, confirming its adherence to regulations regarding hazardous substances.
It provides galvanic isolation between input and output with an 8 mm leakage path, linked contacts to prevent malfunctions, and breaking contacts that cannot close simultaneously.
This relay is suitable for automation, electrical control, and signal conditioning applications, including HVAC controls and strip lights.
The DE1A1B24D relay is manufactured in India.
The maximum operating temperature for this model is 70°C, allowing it to function effectively in high-temperature environments.
The minimum operating temperature for this relay is -40°C, enabling reliable performance in cold conditions.
Key features include DPST contact configuration, galvanic isolation, linked contacts for safety, and compliance with RoHS standards.
It has through hole terminals, which provide secure and reliable connections for PCB mounting.
