Dold DIN Rail Force Guided Relay 24V DC Coil Voltage 2-Pole DPDT OA 5669.12/983/61 DC24V

Free Delivery in India | Lowest Global Shipping Charges

Dold DIN Rail Force Guided Relay 24V DC Coil Voltage 2-Pole DPDT OA 5669.12/983/61 DC24V

Name: Dold DIN Rail Force Guided Relay 24V DC Coil Voltage 2-Pole DPDT OA 5669.12/983/61 DC24V
Brand: Dold
SKU: 325450
Price: 1963.16 INR
Availability: InStock



Category Force Guided Relay Brand Dold Condition New

Specifications

Country of Origin	Germany
Brand	Dold
Height	25.5mm
Length	29mm
Model	OA 5669.12/983/61 DC24V
Depth	13mm
Mount Type	DIN Rail
Series	OA 5669.12
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Terminal type	Through Hole
Number of Poles	2
Coil Resistance	210Ω
As per IEC 664/VDE 0110 (1 / 89)	Rated voltage: 250 V, pollution degree

Key Features

This force guided relay features forcibly guided contacts for rated reliability.
Coil resistance is 210 ohms ensuring stable operation at 24V DC.
The relay operates reliably in temperatures from -40°C to 60°C.
It offers robust electrical isolation with dielectric withstand voltage of 4 kV.
Designed to meet DIN EN 50205 and multiple IEC and VDE standards for safety and performance.
Suitable for industrial automation, safety circuits, and control applications.

Product Description

Dold OA 5669.12/983/61 DC24V Force Guided Relay is a high-performance electrical relay designed for DIN rail mounting. It features a 24V DC coil voltage and a 2-pole double pole double throw (DPDT) contact configuration with forcibly guided contacts to ensure critical safety functions and reliability in industrial control systems.

This relay is engineered with a coil resistance of 210 ohms for efficient operation at 24V DC and is capable of withstanding a wide operating temperature range from -40°C to 60°C, making it suitable for harsh industrial environments.

It offers a high dielectric withstand voltage of 4 kV, ensuring robust insulation between contacts and the coil, thereby improving long-term operational stability and safety against electrical surges.

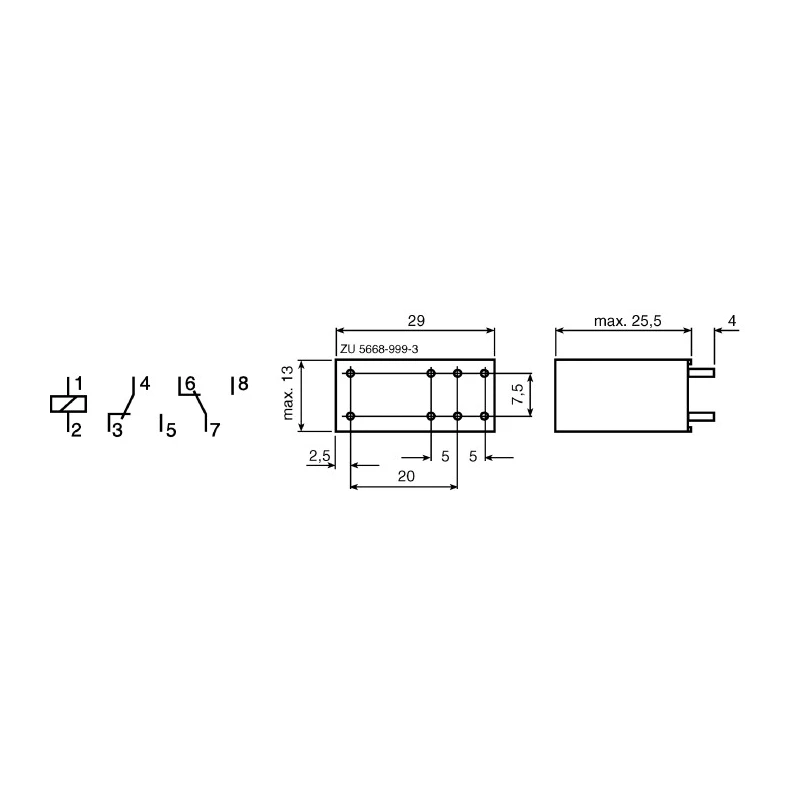

The relay dimensions are compact and space-saving, with measurements of 29 mm in length, 25.5 mm in height, and 13 mm in depth, allowing for easy integration into DIN rail-mounted control panels and enclosures.

Designed according to rigorous DIN EN 50205 ZH 1 / 457 standards and compliant with IEC 664/VDE 0110, as well as other safety certifications like TÜV and UL, this relay is ideal for use in safety-critical circuits such as emergency stop functions, automation equipment, manufacturing systems, and industrial process controls.

This relay has forcibly guided contacts that maintain a minimum contact opening of greater than 0.5 mm throughout its service life, including during malfunctions and electrical endurance tests.

It has an air gap and creepage distance of at least 8 mm, enhancing its dielectric isolation properties. The relay supports a large voltage range from 0.7 to 1.6 times the nominal coil voltage, ensuring flexibility in various applications.

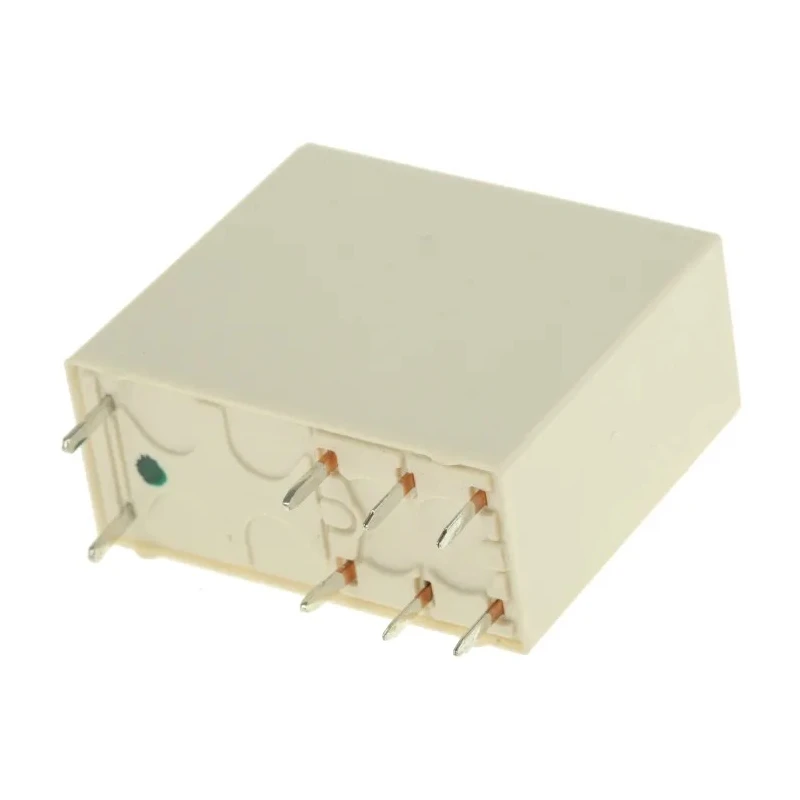

PCB mount option with through-hole terminal type provides secure and reliable electrical connections. The product is made in Germany, reflecting high manufacturing quality standards.

This device is widely used in the fields of electrical automation, industrial manufacturing, process control, HVAC systems, and safety relay applications where reliable forced guidance of contacts is critical for operator and equipment safety.
