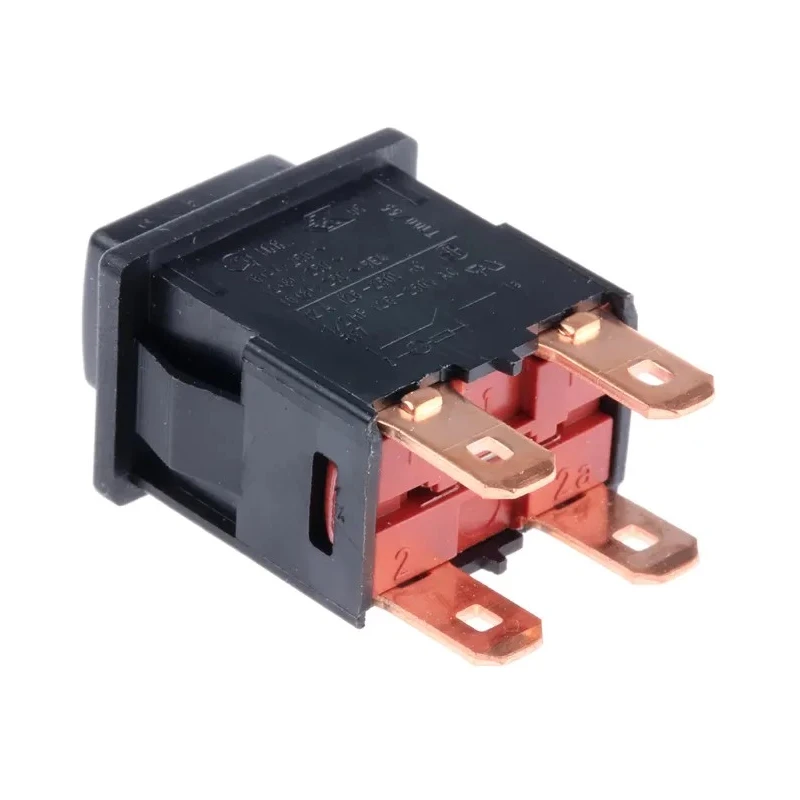

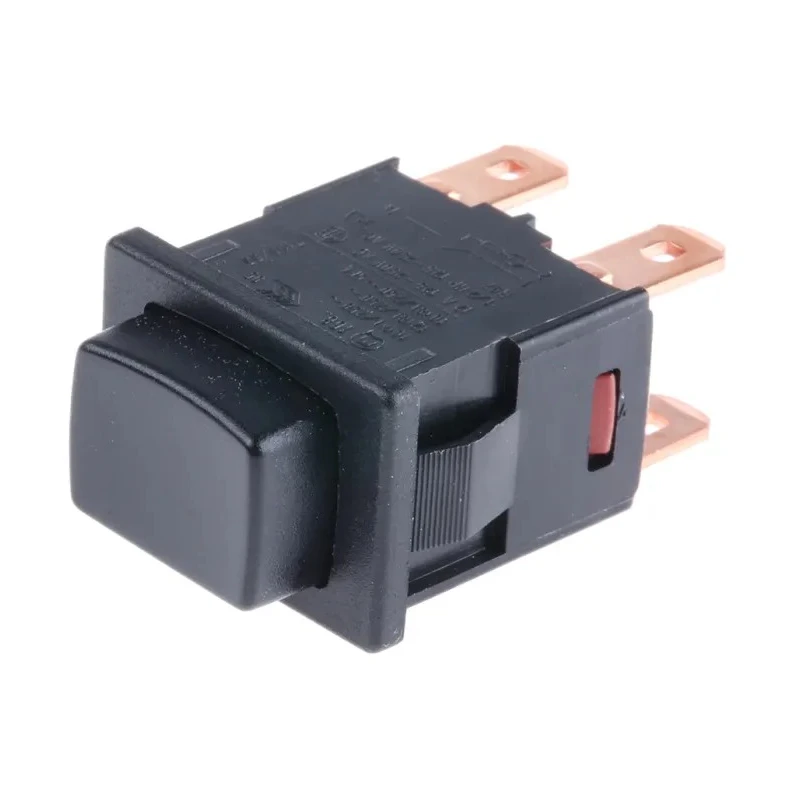

Arcolectric (Bulgin) Ltd 1683 Series Push Button Switch, Latching, Panel Mount, DPDT, IP67, 250 V ac, 16 A Contact 1684.1101
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | Arcolectric (Bulgin) Ltd |
| IP Rating | IP67 |
| Width | 12.9mm |
| Mount Type | Panel |
| Series | 1683 |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 12.9 x 19.2 mm |
| Terminal type | Tab |
| Standards/Approvals | UL, CSA |
| Switch Operation | Latching |
| Actuator Colour | Black |
| Actuator Style | Button |
| Switch Contact Current | 16A |
| Contact AC Voltage | 250V ac |
| Arcolectric (Bulgin) Ltd DPST, On-Off On-Off Rocker Switch PanelBrand | Arcolectric (Bulgin) Ltd |
| UL 94 flammability (actuator | V-0, socket: V-1, housing: V-2) |
Key Features
- This push button switch features a latching switch operation for reliable on-off control.
- The actuator color is black with a button style actuator for easy use.
- The panel cutout size measures 12.9 x 19.2 mm ensuring compatibility with standard mounting panels.
- It has a robust IP67 rating suitable for protection against dust and water ingress in industrial environments.
- The switch supports a double pole double throw (DPDT) contact configuration for versatile switching applications.
- Designed for a wide operating temperature range from -20°C to 120°C to ensure durability.
- High contact AC voltage of 250 V ac with a contact current rating of 16 A allows for heavy-duty usage.
- Compact width of 12.9 mm fits tightly in control panels without wasting space.
Product Description
Marquardt 1684.1101 Push Button Switch is part of the 1683 series, designed for panel mounting with a latching switch operation. This DPDT switch offers dual pole double throw contacts suitable for industrial and automation control circuits.
The switch is rated for 250 V ac with a high contact current capacity of 16 A, making it ideal for switching heavy loads reliably. The actuator is black in color, button style, and the panel cutout size is 12.9 x 19.2 mm, facilitating easy integration into control panels.
Featuring an IP67 rating, this switch provides strong protection against dust and water ingress, suitable for harsh industrial, manufacturing, and automation environments including HVAC systems and electrical panels.
It supports a wide operating temperature range from -20° Celsius to 120° Celsius, ensuring consistent performance in varying environmental conditions. The switch terminals utilize 4.8 mm Faston/Quick Connect style tabs for rapid connections.
Marquardt 1683 Series Push Button Switches have silver contacts and offer multiple switching formats including SPNO, SPST, DPST, and DPNO variants, all with high switching capabilities. This particular model is non-illuminated, fitting applications where indicator light is not necessary.
The product adheres to UL and CSA approvals, assuring compliance with stringent international safety and quality standards. Its actuator, socket, and housing meet UL 94 flammability ratings of V-0, V-1, and V-2 respectively, ensuring fire resistance and safety.
The switch delivers up to 100,000 mechanical life operations, supporting reliable long-term use in industrial, laboratory, and commercial electrical installations. This switch is widely used in electrical panels for automation and control applications.
Robust for construction, manufacturing, and HVAC system use. Ideal for engineers and technicians requiring reliable push button switch components with high IP rating. Explore more Marquardt Push Button Switches and other switch components in the Electronics & Electrical category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile switching applications.
It has an IP67 rating, providing strong protection against dust and water ingress, suitable for harsh industrial environments.
The switch is rated for a maximum contact AC voltage of 250 V and can handle a contact current of 16 A, making it suitable for heavy-duty usage.
The required panel cutout size for this switch is 12.9 x 19.2 mm, ensuring compatibility with standard mounting panels.
It operates effectively within a temperature range of -20°C to 120°C, ensuring performance in various environmental conditions.
The switch terminals utilize 4.8 mm Faston/Quick Connect style tabs for rapid connections.
The actuator is a button style and is colored black, designed for easy use.
This model adheres to UL and CSA approvals, ensuring compliance with international safety and quality standards.
It is designed to deliver up to 100,000 mechanical life operations, supporting long-term use in various applications.
The width of this model is 12.9 mm, allowing for compact installation in control panels.
This particular model is non-illuminated, making it suitable for applications where an indicator light is not necessary.
It is widely used in electrical panels for automation and control applications, particularly in industrial, laboratory, and commercial settings.
