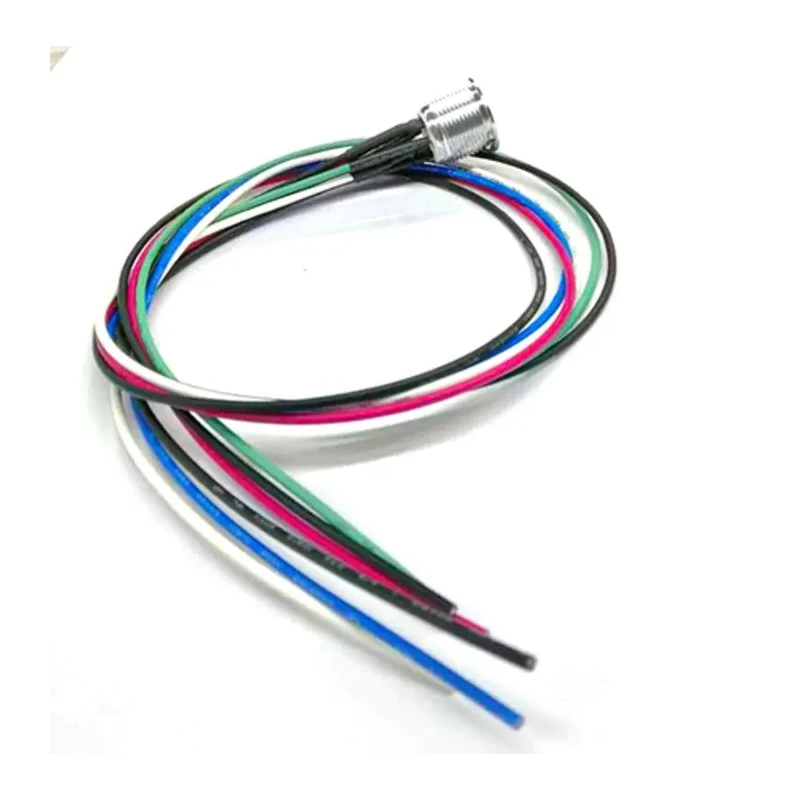

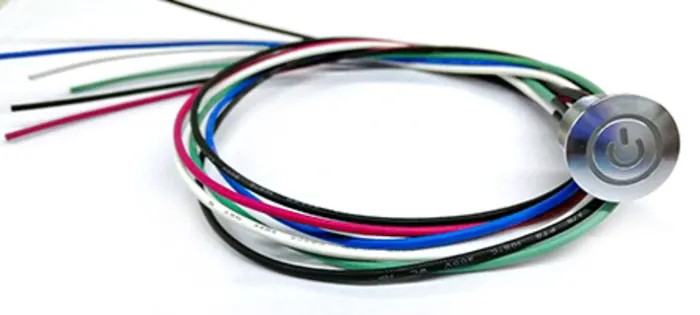

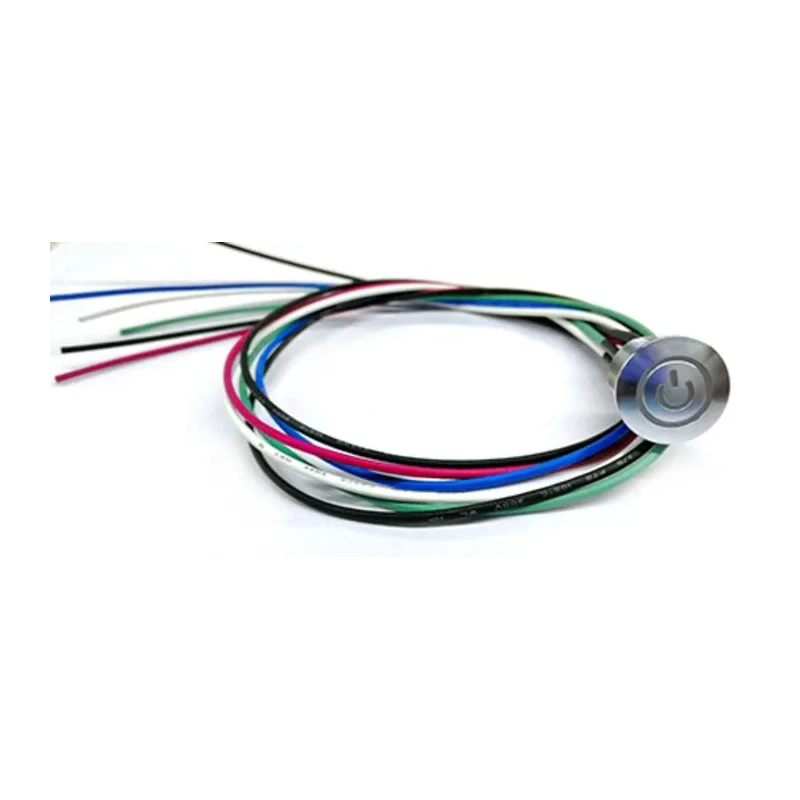

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 16 mm Cutout, SPST, RGB LED, IP67, 36 V dc Model 175-9133

RS PRO 175-9133 is a premium illuminated momentary push button switch designed for panel mounting with a precise 16 mm cutout. It features a single-pole single-throw (SPST) contact configuration suitable for applications requiring simple on/off control.

The switch illumination is accomplished through durable RGB LED colors including blue, green, and red, providing versatile status indication for various control functions. Engineered to IP67 protection rating, it delivers water and dust resistance making it ideal for harsh industrial environments.

Operating at a DC voltage of 36 V and supporting a contact current of up to 2 amps, the switch ensures reliable switching performance. The round actuator design enhances ergonomic use and aesthetic appeal. The switch is built to function within a wide operating temperature range from -20°C to +70°C, ensuring durability under diverse conditions.

This product complies with UL 94 V-0 and UL 94 V-2 flammability standards, certifying fire resistance suitable for safety-critical installations. Its robust metal construction offers high strength, corrosion resistance, and efficient heat dissipation, which are hallmarks of RS PRO metal switches.

Applications for this switch include industrial control instruments, medical equipment, security systems, vehicle peripherals, and audio-visual equipment where dependable push button control and clear visual feedback are essential.

Features SPST contact configuration for simple on-off control. Illuminated with RGB LED colors: blue, green, and red for versatile indication. Designed to meet IP67 rating for water and dust resistance. Operates at a contact DC voltage of 36 V dc with a contact current rating of 2A.

Round actuator style providing ergonomic and aesthetic function. Operates reliably within a temperature range of -20°C to 70°C. Complies with UL 94 V-0 and UL 94 V-2 standards for flame retardancy. Suitable for industrial control, medical, security, vehicle, and audio-visual equipment applications.

The RS PRO brand is known for producing high-quality, reliable industrial components engineered to meet rigorous performance and safety standards. Explore more quality switches and components in the Push Button Switches category on EnvMart for diverse industrial solutions.
