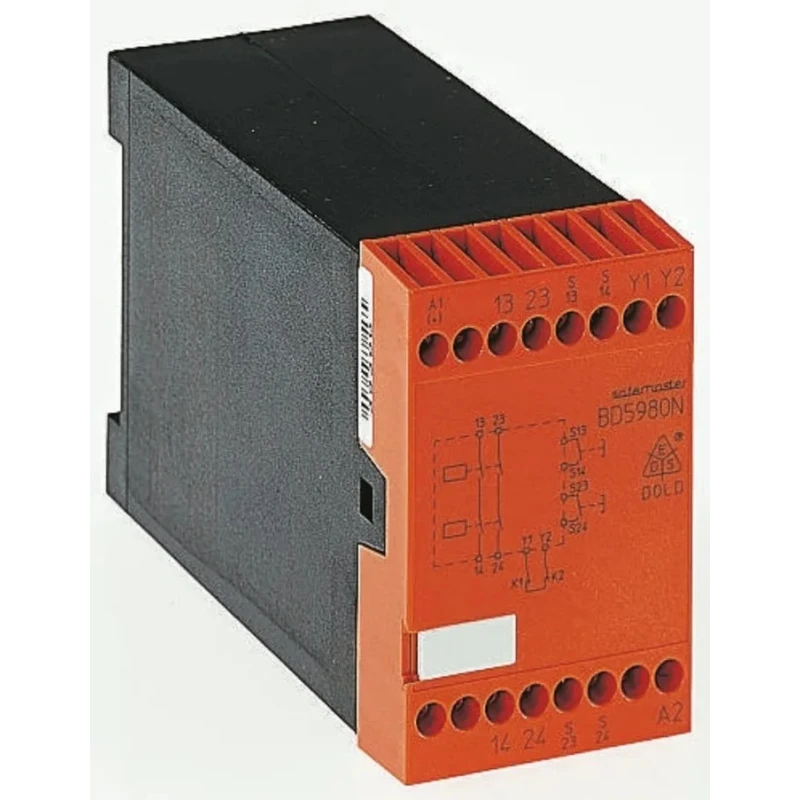

Dold 230V AC Safety Relay 2 Safety Contacts BD5980N.02 AC50/60Hz 230V

Dold BD5980N.02 AC50/60Hz 230V Safety Relay is designed for use in controls of metal working presses and other processing machines with hazardous lock movements. This relay meets the EC directive for machines 89/392/EEC, ensuring compliance with safety regulations for two-hand circuits on power-driven metal work presses.

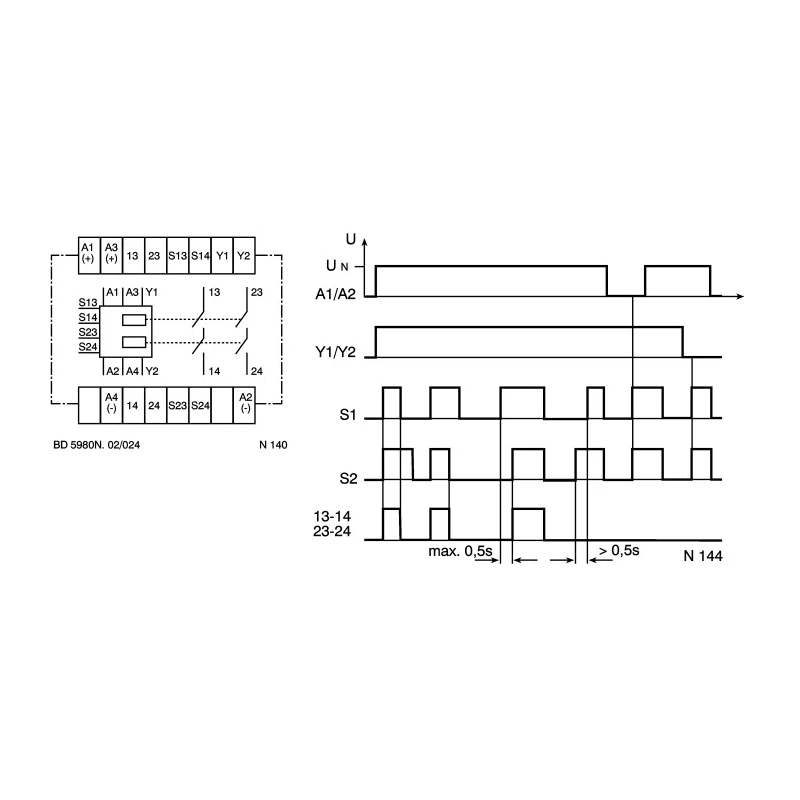

Operating at 230V AC coil voltage, the safety relay includes two normally closed (2 NC) safety contacts arranged for safety-critical switching functions. It features a 0.5 second time delay, ensuring controlled activation and deactivation times for enhanced protection.

The relay is designed for DIN Rail mounting and uses screw type terminals for secure electrical connections. It has an overall width of 45 mm, making it compact yet fully functional. IP40 and IP20 ratings assure reasonable protection against dust, and the device performs reliably within a temperature range spanning -15°C to a maximum of 55°C.

Equipped with a feedback loop for external contactor monitoring, the BD5980N relay supports continuous safety supervision. Its design complies with various safety standards including IEC/EN 60068-2-6, IEC/EN 62061, EN ISO 13849-1, and others to conform with industrial safety requirements. Approvals from BG, SUVA, and Arbejdstilsynet confirm its acceptance for workplace safety in different regulatory environments.

This product is manufactured in Germany, ensuring high quality and reliability. Ideal for industrial, manufacturing, metalworking, and automation applications requiring secure safety relay solutions.

Operates with 230V AC coil voltage for industrial safety control. Incorporates 2 normally closed safety contacts configured to 2 NC for secure switching. Equipped with a 0.5 second time delay for safe activation. Mounts easily on DIN Rail with screw terminal type connections.

Compact design with 45 mm overall width for space-efficient installation. Designed with IP40 and IP20 ratings protecting against dust ingress. Operating temperature range from -15°C to 55°C suits diverse industrial environments.

Conforms to multiple international safety standards including IEC/EN and UL certification variants. Includes feedback loop for monitoring external contactors enhancing safety. Manufactured in Germany ensuring premium quality and compliance.
