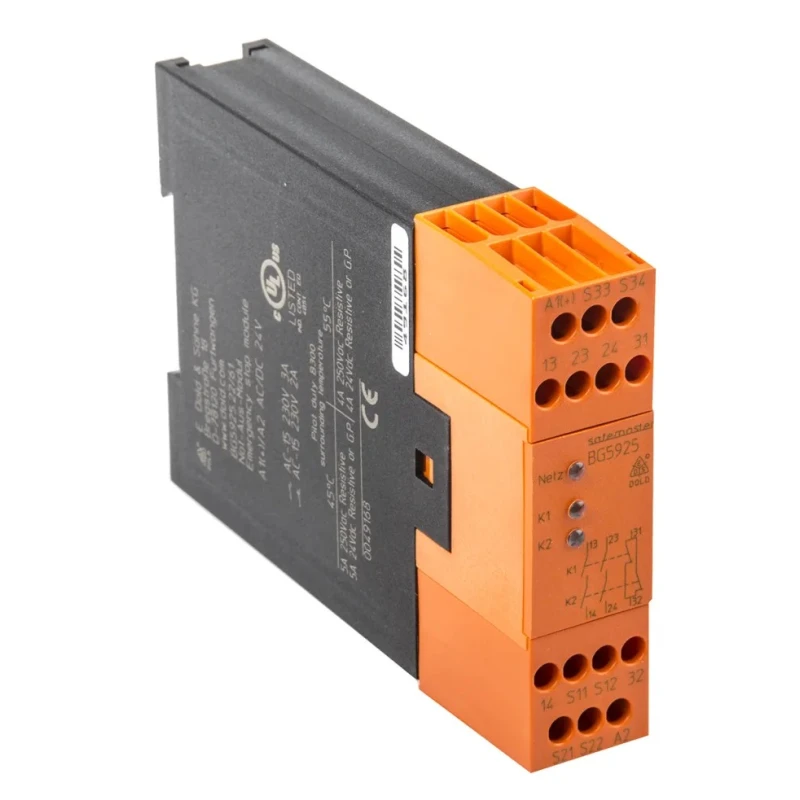

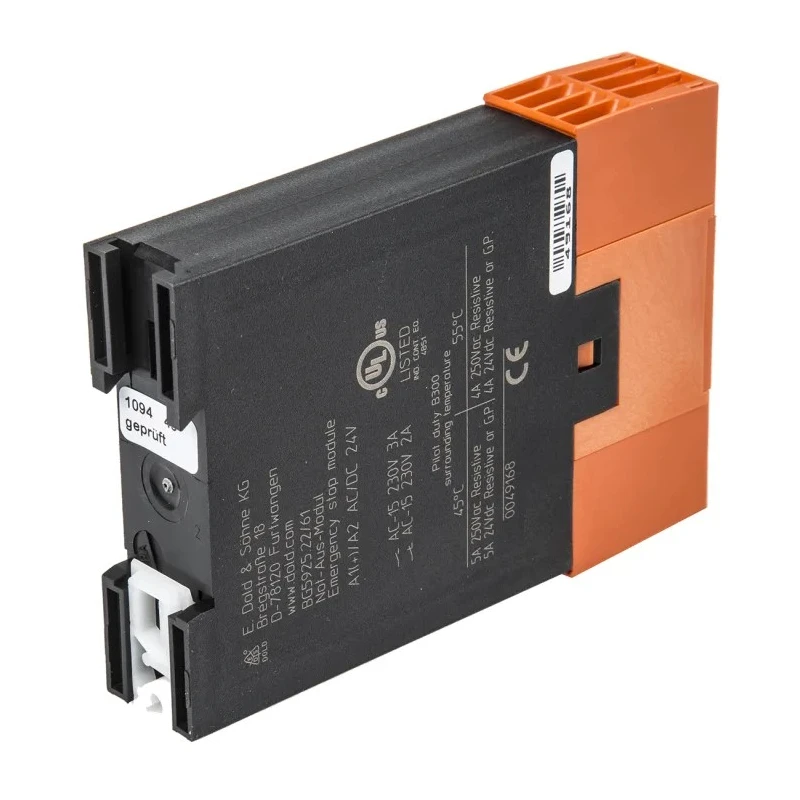

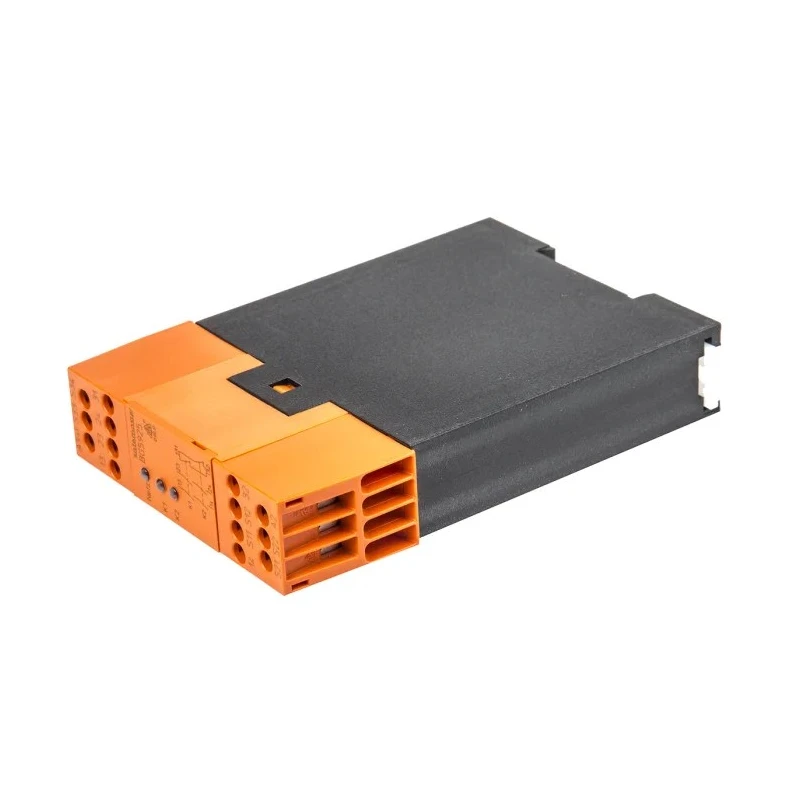

Dold 24V Safety Relay with 3 Safety Contacts, Automatic Reset, 2W Power Consumption BG5925.22 AC/DC24V

Dold BG5925.22 AC/DC24V Safety Relay is a robust device designed for high safety and reliability in industrial automation, manufacturing, and safety systems. It operates with a 24V coil voltage and consumes 2 watts, making it efficient for continuous use. With a compact slim-fit design and DIN rail mount, it integrates easily into control cabinets.

The relay features three safety contacts configured as 2 normally open and 1 normally closed, rated for 5 amperes, and capable of switching DC voltage of 24V and AC voltage up to 250V. This model supports automatic reset methods and includes programmable activation via the ON button or automatic ON when voltage is applied, offering user-configurable operational flexibility.

Designed for Safety Category 4 according to EN ISO 13849-1, it ensures maximum reliability in emergency stop circuits and safety functions. The device's gold-plated contacts are especially suited for low voltage, low current switching applications, maintaining contact integrity and longevity. It includes features like cross-fault detection options, line termination detection, and compatibility with IT networks with insulation monitoring.

Industrial applications include use in factory automation, safety interlocks, HVAC control, manufacturing machinery safety, and process control systems. It complies with international standards such as UL508, IEC/EN 62061, CSA, IEC/EN 61508, and IEC/EN 60947-5-1.

The relay features automatic reset for reliability. Compact DIN rail mount and slim 22.5 mm width. 3 safety contacts rated for 5A current. Gold-plated contacts suitable for sensitive low voltage switching. Protection class IP40 and IP20 for industrial use.

Wide operating temperature range -15°C to 55°C. Status indicated by LED indicators. Conforms to Safety Category 4 EN ISO 13849-1 standards. Programmable activation via ON button or automatic ON function. Includes cross-fault detection and insulation monitoring compatibility.

The Dold BG5925.22 AC/DC24V Safety Relay represents a high-quality choice for rigorous safety applications requiring reliable switching and monitoring. EnvMart offers this product to professionals demanding certified Safety Relays for control and emergency stop systems.
