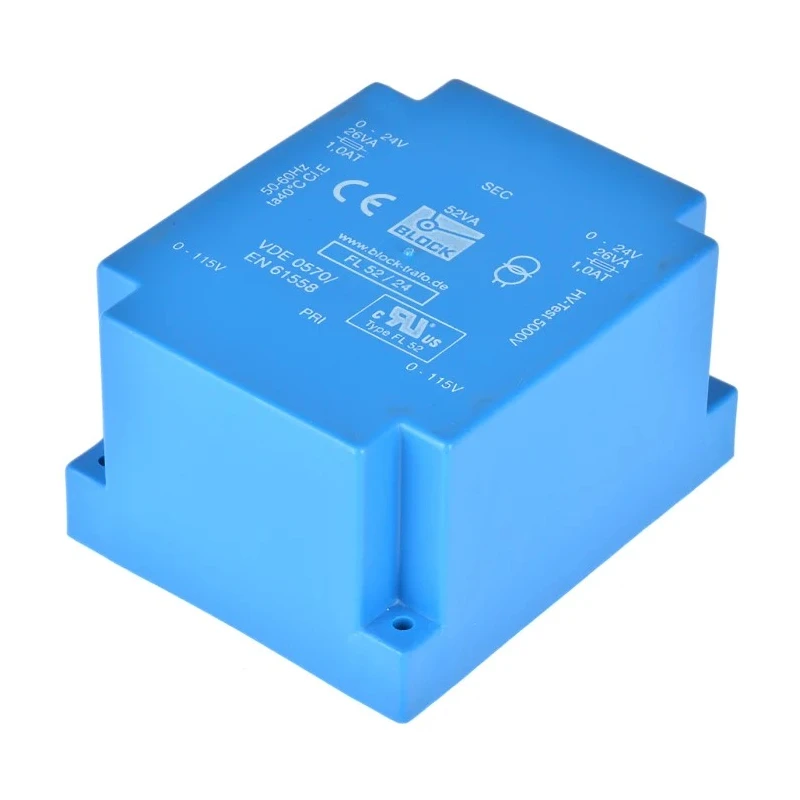

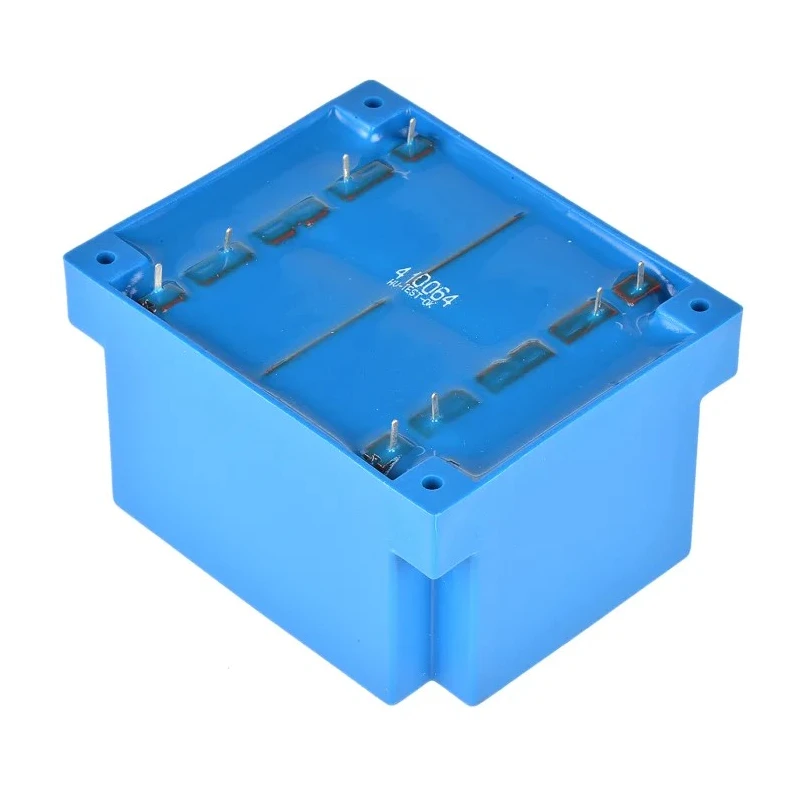

Block PCB Transformer 24 V ac Dual Primary Dual Secondary 52 VA Through Hole Mount FL 52/24

Block FL 52/24 PCB Transformer is designed for efficient power conversion in electronic assemblies requiring two 24 V ac outputs. This dual primary and dual secondary winding transformer supports 115 V and 230 V ac primary voltages at 50 to 60 Hz, making it versatile for various power supply configurations.

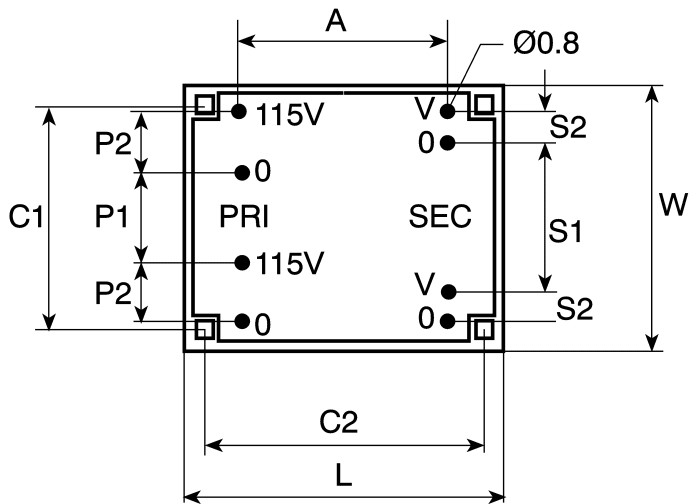

The transformer features a compact low profile through hole mount design with dimensions of 86.5 mm (length) by 49 mm (width) by 70 mm (depth), enabling easy integration on printed circuit boards. Its construction includes vacuum epoxy resin moulding to UL94-V0 standard and double section glass fibre reinforced polyamide bobbins, offering excellent electrical insulation and mechanical stability.

With an efficiency of 81% and a maximum operating temperature of 40°C, it ensures reliable and energy-efficient operation under normal industrial environments. The 980 g weight makes it manageable for automated assembly processes.

The transformer is thoroughly tested for electrical and flash safety and provides low inter-winding capacitance to reduce signal interference, along with low radiated noise for clean electronic environments. Extra fixing holes are included for secure and stable PCB mounting.

This product complies with international standards including EN60742, VDE 0551, IEC 61558, and holds VDE and UL approvals to ensure trustworthy quality and safety standards. It is manufactured in Germany to the highest quality controls.

This transformer features a through hole mount design optimized for PCB applications. It supports dual primary voltage inputs of 115 V and 230 V ac at 50-60 Hz frequency. Efficiency is rated at 81%, ensuring energy-efficient performance.

The compact dimensions of 86.5 mm length, 49 mm width, and 70 mm depth allow low profile PCB integration. It is vacuum epoxy resin moulded to UL94-V0 standard for flame retardancy and electrical safety. The transformer operates at a maximum temperature of 40°C with a weight of 980 grams.

It includes extra fixing holes for secure board mounting and has low radiated noise and inter-winding capacitance. Approved under standards EN60742, VDE 0551, IEC 61558 with UL and VDE certifications. Manufactured in Germany to ensure high-quality construction.

Suitable for industrial, electronic component, and power supply applications requiring reliable low-profile PCB Transformers.

This Block FL 52/24 transformer is ideal for use in industrial and electronic component manufacturing, power supplies, and PCB-based assembly lines. Its low noise and high efficiency make it suitable for commercial and laboratory electronic power applications. Explore more transformers and PCB mounting solutions in the Electronics & Electricals category on EnvMart.
