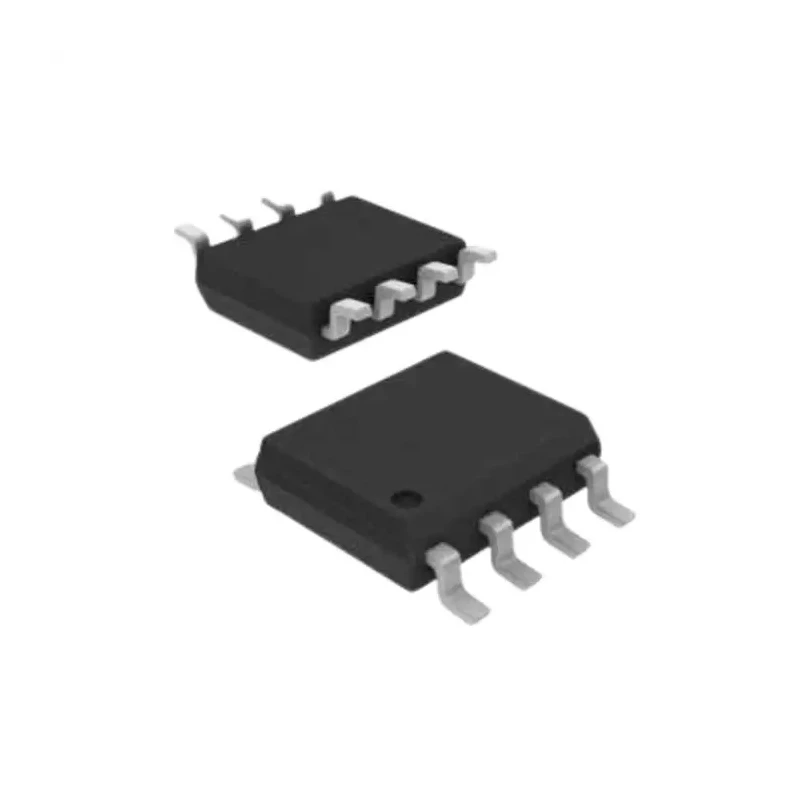

Nisshinbo Micro Devices Operational Amplifier 8 MHz 8-Pin 18V DMP NJM4556AM-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM4556AM-TE1 |
| Mount Type | Surface |
| Series | NJM4556A |
| Maximum Operating Temperature | 85°C |
| Package Type | DMP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2V |
| GBP - Gain Bandwidth Product | 8MHz |
| Input Bias Current | 500 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 3V/μs |
| Input Offset Current | 60 nA |
Key Features
- This amplifier features bipolar technology suitable for audio, telecommunications, and instrumentation applications.
- Operates at a minimum supply voltage of 2V and a maximum of 18V.
- Offers a gain bandwidth product (GBP) of 8 MHz and a slew rate of 3 V/μs.
- Has low input offset voltage of 6 mV and input bias current of 500 nA, ensuring signal accuracy.
- Supports operation in temperature ranges from -40°C to 85°C.
- Designed to drive loads as low as 150 Ω effectively.
- Complies with RoHS standards ensuring environmental safety.
- Contains 2 operational amplifiers within a compact 8-pin surface mount package.
Product Description
Nisshinbo Micro Devices NJM4556AM-TE1 operational amplifier is a robust dual-channel device engineered for surface mount applications. It operates over a broad supply voltage range from 2V to 18V, making it highly adaptable for various low voltage electronic designs.
The device offers a gain bandwidth product of 8 MHz and a high slew rate of 3 V/μs, providing excellent dynamic response required in audio amplification, telecommunications circuits, and precision instrumentation.
This operational amplifier features bipolar transistor technology, delivering low noise performance and the ability to drive low impedance loads down to 150 Ω without degradation.
With an input offset voltage of 6 mV and an input bias current of 500 nA, it ensures precision signal processing and minimal error. The device is designed to operate reliably across a wide temperature range from -40°C up to 85°C, suitable for industrial environments.
This amplifier features bipolar technology suitable for audio, telecommunications, and instrumentation applications. Operates at a minimum supply voltage of 2V and a maximum of 18V. Offers a gain bandwidth product (GBP) of 8 MHz and a slew rate of 3 V/μs.
Has low input offset voltage of 6 mV and input bias current of 500 nA, ensuring signal accuracy. Supports operation in temperature ranges from -40°C to 85°C. Designed to drive loads as low as 150 Ω effectively. Complies with RoHS standards ensuring environmental safety.
Contains 2 operational amplifiers within a compact 8-pin surface mount package.
This model, NJM4556AM-TE1, belongs to the NJM4556A series and is not intended for automotive use. It is compliant with RoHS standards, ensuring environmental safety and regulatory compliance.
It is ideal for integration in industrial, audio processing, communications, instrumentation, and embedded electronic systems. The low noise and offset characteristics make it particularly suited for precision analog signal conditioning applications.
Explore other Operational Amplifiers and related electronic components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NJM4556AM-TE1 has a gain bandwidth product (GBP) of 8 MHz.
It operates with a minimum supply voltage of 2V and a maximum of 18V.
This model supports operation in temperature ranges from -40°C to 85°C.
The slew rate of this operational amplifier is 3 V/μs.
The NJM4556AM-TE1 contains 2 operational amplifiers within its compact 8-pin surface mount package.
It features a low input offset voltage of 6 mV.
The input bias current for this model is 500 nA.
This operational amplifier uses a surface mount type for installation.
It is designed to drive loads as low as 150 Ω effectively.
This model complies with RoHS standards, ensuring environmental safety.
This model belongs to the NJM4556A series.
It is suitable for audio, telecommunications, and instrumentation applications.
