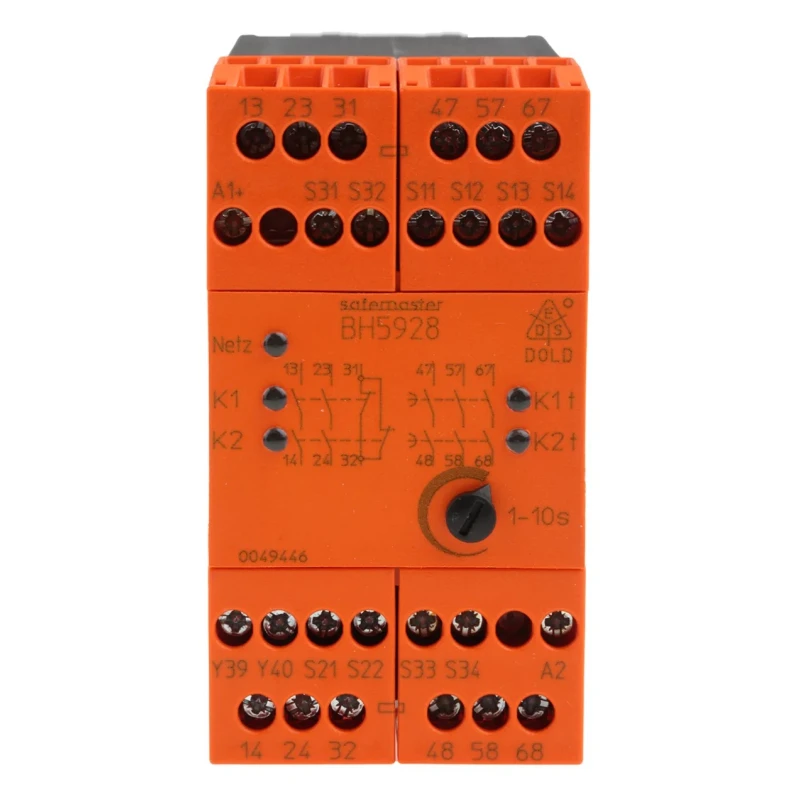

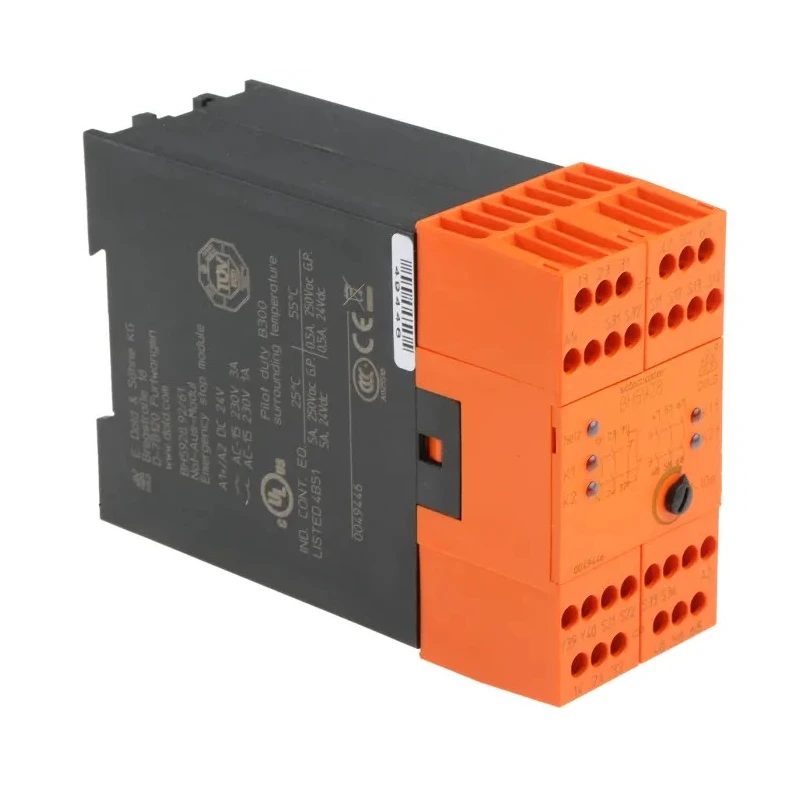

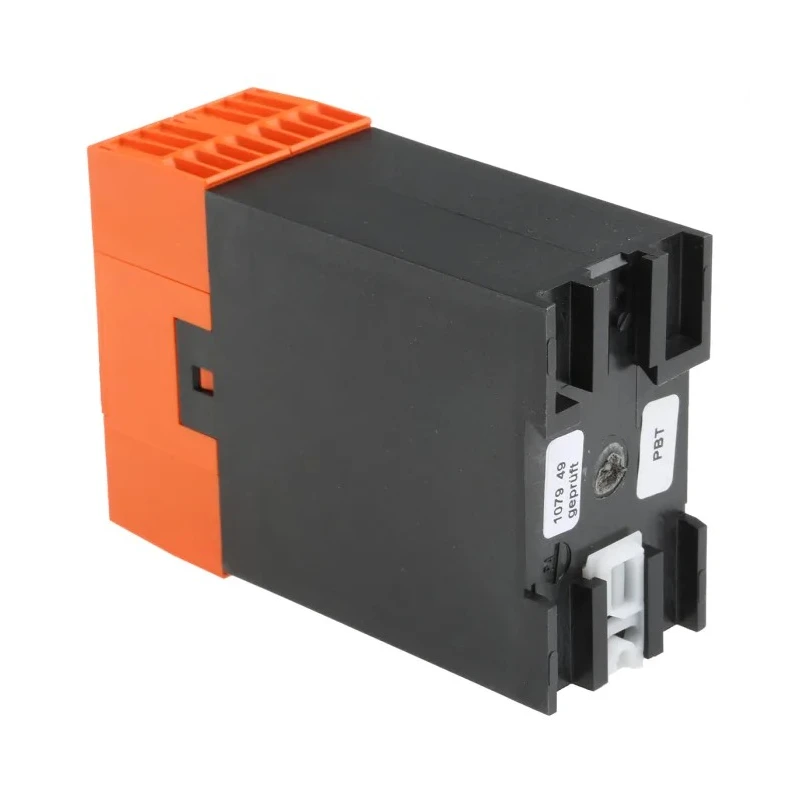

Dold 24V Safety Relay with 3 Safety Contacts, DIN Rail Mount, Model BH5928.92 DC24V 1-10S

Dold BH5928.92 DC24V 1-10S Safety Relay is a high-performance emergency stop module equipped with 3 safety contacts, designed for industrial safety applications. The relay provides both automatic and manual reset functionality, making it adaptable for various control systems. It is mounted on a DIN rail, supporting seamless integration into existing electrical panels.

The device consumes only 3.5W of power and can operate reliably within a wide temperature range from -25°C to 55°C. Its compact size, with dimensions of 84mm x 84mm x 45mm, ensures minimal footprint inside control enclosures.

Certified to meet a broad set of standards including UL94 V0, EN 50005, IEC/EN 60668, UL508, EN ISO 13849-1, IEC/EN 61511, IEC/EN 60947-5-1, and IEC/EN 62061, the BH5928 model delivers high safety integrity suitable for critical industrial environments.

This safety relay features output contacts comprising 2 normally open (N/O) and 1 normally closed (N/C) immediate contacts in addition to 3 off-delay N/O contacts. Programmable options are included to enable or disable cross-fault detection within the emergency stop control loop.

Additional benefits include line termination detection on the ON button, optional activation via the ON button or automatically upon reaching operating voltage, and LED indicators for network status, channel status, and time delay, providing diagnostic clarity.

Built with gold-plated contacts, the BH5928 is suitable for low-voltage switching applications within the ranges of 0.1 to 60 V and currents from 1 to 300 mA, ensuring long-term reliability. The relay also features internal fusing with positive temperature coefficient (PTC) and voltage-dependent resistor (VDR) components to protect the device and connected circuits.

Applications of this safety relay include industrial automation, manufacturing safety circuits, emergency stop functions in machinery, and other hazardous environment controls requiring high category safety functions.

Set includes one Dold BH5928.92 DC24V 1-10S Safety Relay unit with removable terminal clamps for ease of wiring. For related products, consider comparable safety relays like the Pilz PNOZ XV2 24V DC Safety Relay with 2 safety contacts.
