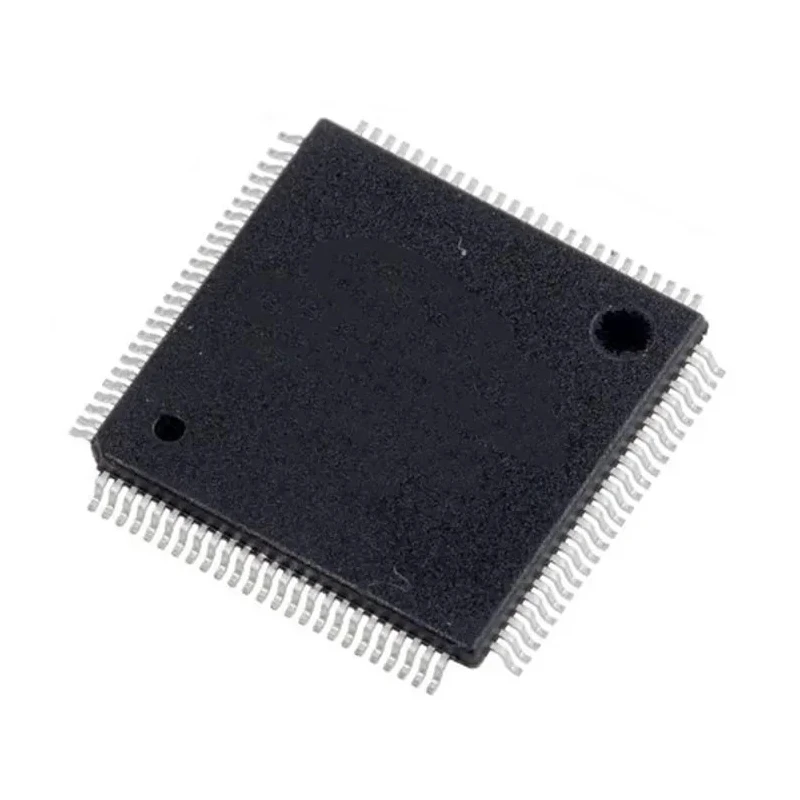

Renesas Electronics 32 bit RX RX631 Microcontroller 100 MHz 768kB FLASH 100-Pin LQFP R5F5631ADDFP

Renesas Electronics R5F5631ADDFP is a 32 bit RX RX631 microcontroller featuring a high-performance 100 MHz CPU core designed for fast and efficient processing. It houses 768kB of FLASH memory, ideal for complex embedded applications requiring significant program storage. The device comes in a 100-pin LQFP surface-mount package, measuring 13.9 mm by 13.9 mm, with a height of 1.4 mm, which is suitable for compact PCB layouts.

This microcontroller includes 128kB of RAM to support demanding firmware and data operations, and 78 programmable I/O pins that allow for flexible interfacing with external devices. It supports multiple serial communication protocols including SPI, I²C, USB, CAN, and Ethernet, enabling connectivity in diverse industrial and electronics systems.

The R5F5631ADDFP operates across a wide voltage supply range from 2.7V to 3.6V and can function in harsh environments with operating temperatures ranging from -40°C to +85°C. It incorporates 29 analog-to-digital converters (ADCs) with 10 and 12-bit resolution, 2 digital-to-analog converters (DACs) of 10-bit resolution, and 4 timers for accurate event timing and pulse generation.

Energy efficiency is enhanced through various low power modes such as sleep, all-module clock stop, software standby, and deep software standby modes, extending battery life in embedded systems. The device architecture utilizes a CISC Harvard instruction set, optimized for embedded control applications.

Applications for this microcontroller include automotive electronics, industrial control systems, communication equipment, and high-speed data processing tasks. It integrates features like a temperature sensor, CRC Calculator, and real-time clock, providing comprehensive control and monitoring capabilities.

768kB FLASH program memory for advanced applications. 100 MHz 32-bit RX core for high-speed operation. 128kB RAM to support complex firmware needs. 78 programmable I/O pins for system flexibility. Multiple communication interfaces including SPI, I²C, USB, CAN, and Ethernet.

Wide operating temperature range from -40°C to +85°C suitable for industrial use. Supports low-power states enhancing energy efficiency. Includes 29 ADC channels, 2 DACs, and 4 timers for analog/digital control. Compact 100-pin LQFP surface-mount package for efficient PCB space usage.

Utilizes CISC Harvard architecture optimized for embedded control.

The Renesas Electronics R5F5631ADDFP microcontroller is an exceptional choice for engineers focusing on embedded processing in industries such as automotive, industrial automation, and networked communication. Browse the Electronics & Electricals category on EnvMart for more advanced Microcontrollers and components to elevate your electronic system designs.
