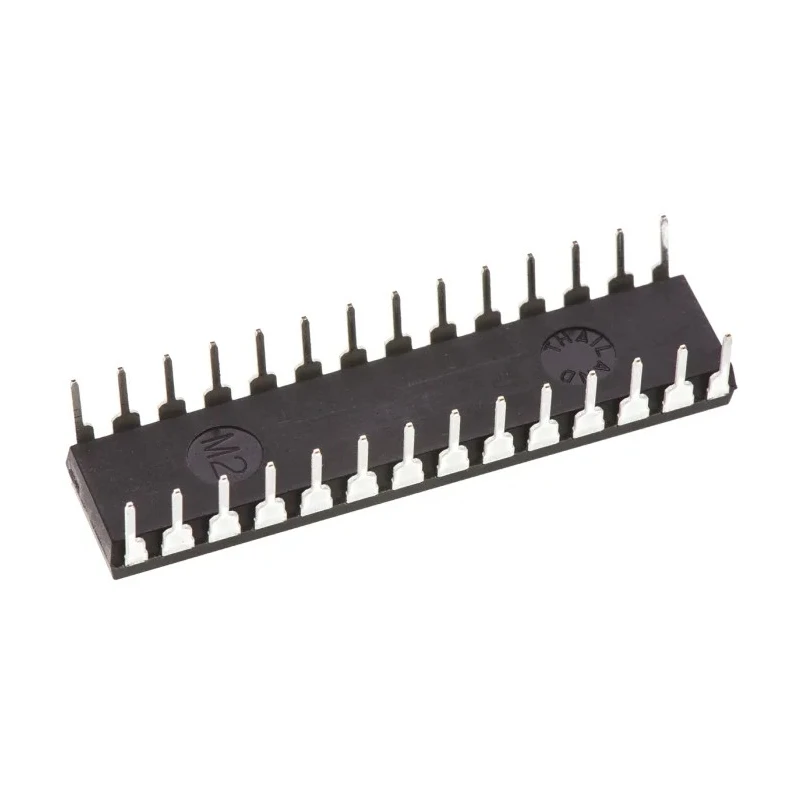

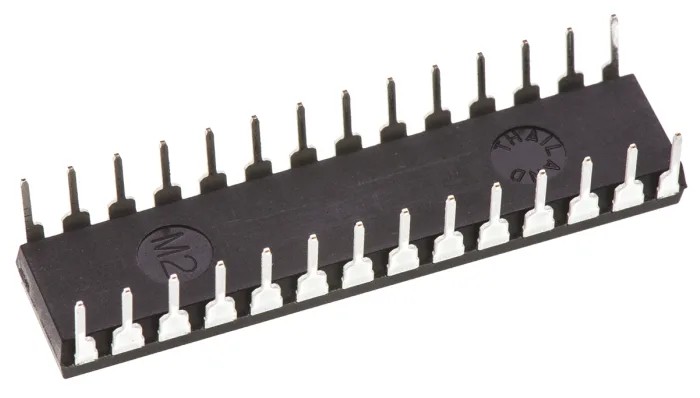

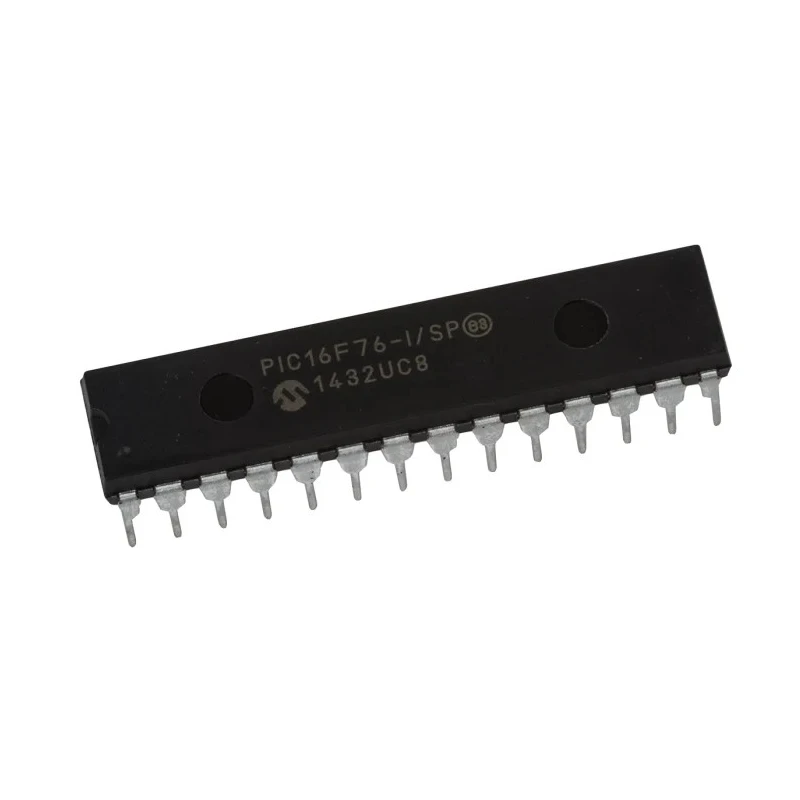

Microchip 8 bit PIC Microcontroller PIC16F76-I/SP 20 MHz 14kB FLASH 28-Pin SPDIP PIC16F76-I/SP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.43mm |
| Length | 35.18mm |
| Model | PIC16F76-I/SP |
| Width | 7.49mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 368bit |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 22 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 8 Bit |
| Program Memory Type | FLASH |
| Microchip PIC16C76/JW MicrocontrollerBrand | Microchip |
Key Features
- Utilizes Microchips PIC architecture with an 8-level deep hardware stack and 35 instructions.
- Provides up to 5 MIPS performance for efficient processing.
- Features 22 programmable I/O pins and 5 ADC channels for varied applications.
- Operates within a supply voltage range of 2 V to 5.5 V with maximum power dissipation of 1W.
- Designed for temperatures from -40°C up to 85°C suitable for diverse environments.
- Includes three timers, synchronous serial port with SPI and I2C, and USART for serial communication.
- Supports In-Circuit Serial Programming (ICSP) and In-Circuit Debug (ICD) for development convenience.
- Compliant with RoHS standards ensuring environmental and safety requirements.
Product Description
Microchip PIC16F76-I/SP is an 8 bit PIC microcontroller built on Microchips PIC16F family architecture, featuring a 20 MHz maximum clock frequency and 14kB of FLASH program memory. Housed in a 28-Pin SPDIP through-hole package, this controller is designed for embedded systems demanding moderate memory and speed.
This MCU incorporates a Mid-range core architecture with an 8-level hardware stack and a 35-instruction set, delivering up to 5 MIPS. It offers 22 programmable I/O pins and 5 channels of 8-bit Analog to Digital Converters (ADC), suitable for sensor interfacing and data acquisition tasks.
The PIC16F76-I/SP operates from a minimum supply voltage of 2V up to a maximum of 5.5V and supports a maximum power dissipation of 1W, making it energy efficient for portable and embedded applications. Operating temperature range from -40°C to 85°C suits it for automotive, industrial, and consumer electronics environments.
Key peripherals include three timers (two 8-bit and one 16-bit), two Capture/Compare/PWM modules, a Synchronous Serial Port (SSP) supporting SPI and I2C protocols, and USART for serial communication, enabling versatile interfacing options. Development is facilitated via In-Circuit Serial Programming (ICSP) and In-Circuit Debug (ICD) capabilities.
Utilizes Microchips Mid-range PIC16F architecture with enhanced instruction set. Capable of handling embedded applications requiring moderate processing speed. Supports multiple communication protocols including SPI, I2C, and USART.
Robust operating temperature and voltage range for industrial use cases. Designed with energy efficiency, featuring low power modes and limited power dissipation. RoHS compliant for environmental safety and regulatory standards.
This microcontroller is ideal for applications in industrial control, automotive systems, instrumentation, consumer electronics, and educational development boards. Engineers and designers can leverage its features to build reliable and compact embedded systems.
Browse our Microcontrollers category on EnvMart for a wide selection of Microchip PIC16F and related Microcontrollers to suit your technical requirements.
