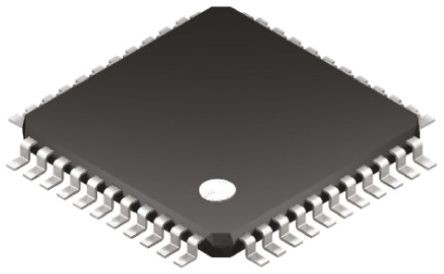

Microchip 16 bit PIC24FJ Microcontroller, 32 MHz, 16kB FLASH, 44-Pin TQFP PIC24FJ16GA004-I/PT

Microchip PIC24FJ16GA004-I/PT is a high-performance 16-bit PIC microcontroller operating at a maximum clock frequency of 32 MHz, designed for industrial, embedded system, and general-purpose applications. This model incorporates a 16kB FLASH memory with 4kB RAM, housed in a 44-pin TQFP surface mount package, ensuring compact footprint and reliable surface mounting.

Built on a modified Harvard architecture, it provides efficient program execution and data handling. The device supports a wide voltage supply range from 2 V to 3.6 V, making it compatible with various power systems.

Suitable for operation in harsh conditions, it operates within a temperature range from -40°C up to 85°C. The microcontroller integrates 13 analog-to-digital converters (ADCs) with 10-bit resolution and two analog comparators, enabling precise sensor interface and signal processing.

Equipped with five independent timers, it is ideal for timing, counting, and scheduling functions in embedded projects. The physical dimensions of 10 mm by 10 mm by 1.05 mm fit well in compact devices and applications.

Operates on a 16-bit PIC architecture with modified Harvard instruction set. 44-Pin TQFP surface mount package suitable for dense PCB layouts. Memory includes 16kB FLASH and 4kB RAM for efficient program and data storage.

Wide operating temperature range from -40°C to 85°C for industrial use. Maximum operating voltage of 3.6 V and minimum of 2 V supports varied applications. Includes 13 x 10 bit ADCs and 2 analog comparators for precise analog interfacing.

Five timers enable complex timing and control operations. Compact dimensions allow integration in small form-factor designs.

This microcontroller is well suited for industrial control, embedded computing, automotive systems, and automation applications. Its robust specifications ensure reliability and performance in demanding environments.
