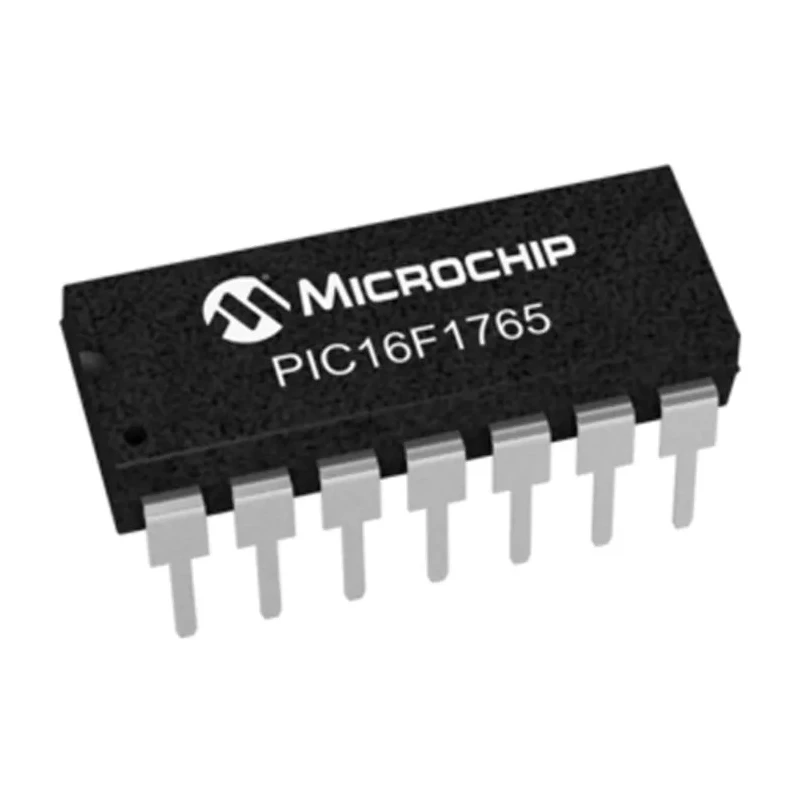

Microchip 8-bit PIC Microcontroller, 32 MHz, 14kB FLASH, 14-Pin PDIP PIC16F1765-I/P

Microchip PIC16F1765-I/P 8-bit PIC Microcontroller is a versatile semiconductor device engineered for a broad range of industrial, commercial, and embedded applications. Operating at a maximum clock frequency of 32 MHz, this microcontroller integrates 14kB of Flash program memory and 1.024kB of RAM within a compact 14-pin PDIP package, optimized for through-hole board mounting.

Constructed on Microchip's enhanced mid-range architecture, it delivers a robust 8 MIPS CPU speed with efficient power management features including low current power-on reset, brown-out reset with selectable trip point, and extend watchdog timer for enhanced system reliability. The device supports a supply voltage range from 2.3V to 5.5V, making it adaptable to flexible power environments.

Its peripheral-rich design incorporates advanced analogue blocks such as 8 channels of 10-bit analog-to-digital converters, digital-to-analog converters, operational amplifiers, and high-speed comparators that enable precise signal conditioning and processing. Digital peripherals include configurable logic cells, pulse-width modulators, capture/compare modules, and multiple serial communication interfaces like enhanced USART, SPI, and I2C, empowering integration with complex control systems.

This microcontroller supports three timers, two analogue comparators, and features peripheral pin select allowing customizable pin assignments, facilitating closed-loop control systems without additional PCB area. Its operating temperature range of -40°C to 85°C ensures dependable performance in industrial and automotive contexts, although this model is not rated for automotive standards.

Compliant with RoHS standards, the PIC16F1765-I/P enables environmentally responsible product designs. It is ideal for applications in industrial automation, HVAC controls, commercial equipment, instrumentation, and power management systems.

Operates at up to 32 MHz clock speed with 8 MIPS performance. Offers 14kB Flash memory and 1.024kB RAM capacity. Includes 12 programmable I/O pins and 14-pin PDIP package support. Contains advanced analog peripherals including ADCs, DACs, and comparators.

Supports multiple communication protocols: USART, SPI, I2C. RoHS compliant for environmental safety. Enhanced power management for extended device reliability. Operating temperature range -40°C to 85°C suitable for industrial use.
