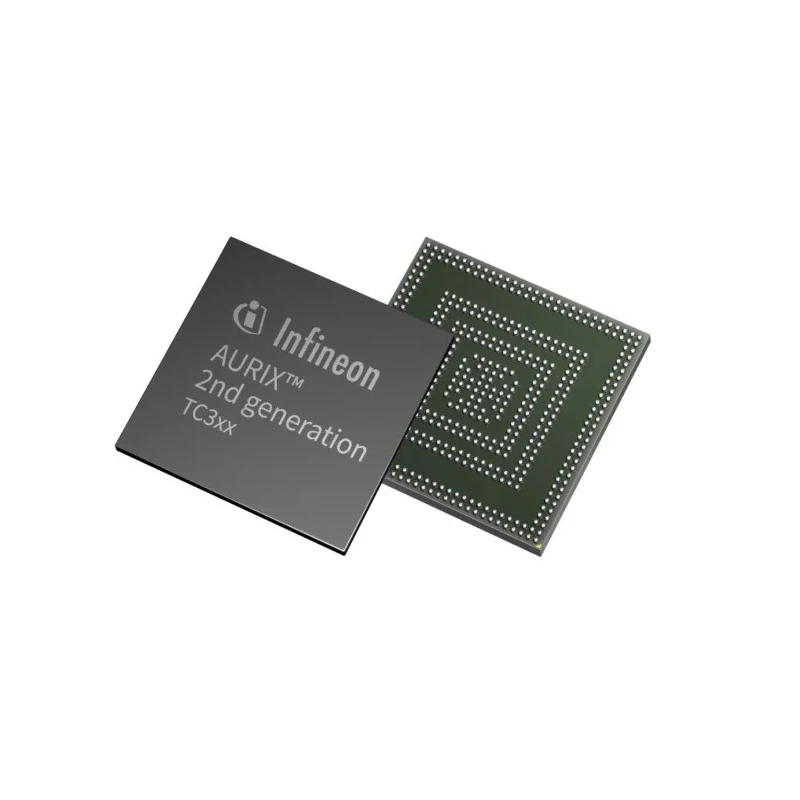

Infineon 32 bit TriCore AURIX Microcontroller 300 MHz, 10.24MB FLASH, 292-Pin LFBGA TC3E7QG160F300SAAKXUMA1

Infineon TC3E7QG160F300SAAKXUMA1 is a 32 bit TriCore microcontroller from the AURIX TC3Ex second generation family. It features a high-performance 300 MHz clock and 10.24MB of FLASH program memory, making it suitable for demanding embedded industrial and automotive applications.

This microcontroller integrates 1.5MB of SRAM and is housed in a 292-pin LFBGA surface mount package, facilitating compact and efficient PCB designs. Its architecture includes 4 TriCore cores running at 300 MHz, complemented by 2 additional checker cores providing a combined processing power of 2700 DMIPS.

The device supports extensive connectivity options such as 1 Gbit Ethernet, up to 20 CAN FD channels, 4 FlexRay channels, 24 LIN interfaces, and 6 QSPI communication ports. These interfaces enable complex domain control and connected gateway electronic control units (ECUs).

Designed with safety and security in mind, the microcontroller complies with ISO 26262 ASIL-D functional safety standards and includes eVita full Hardware Security Module (HSM) for enhanced protection. Additionally, it supports AUTOSAR 4.2 for standard automotive software architecture.

With a high junction temperature rating of 165°C, the product demonstrates robustness for operation in harsh environments common in automotive and industrial sectors. The embedded FLASH memory offers flexibility for firmware management and updates.

This microcontroller caters to industrial, automotive, and embedded system applications requiring high-performance processing, extensive communication interfaces, and stringent safety and security standards.

EnvMart offers this advanced Infineon AURIX microcontroller for applications demanding top-level reliability and functionality. Part of the AURIX second generation family offering increased performance and scalability. Equipped with 1.5MB SRAM to support complex software tasks.

Features 292-pin LFBGA surface mount package for high-density PCB integration. Supports multiple communication interfaces including up to 20 CAN FD and 1 Gbit Ethernet for automotive and industrial applications. Compliance with ISO 26262 ASIL-D safety standard and AUTOSAR 4.2 ensures robust automotive-grade operation.

Incorporates eVita full HSM for future-proof security measures. Operates reliably up to 165°C junction temperature for harsh environments. Includes 4 TriCore cores at 300 MHz plus 2 additional checker cores delivering 2700 DMIPS processing power.

Designed for use in advanced automotive domain control and connected gateway ECUs. Program memory is FLASH type enabling firmware updates and flexibility. Explore more advanced Microcontrollers and industrial-grade semiconductor solutions on EnvMart.
