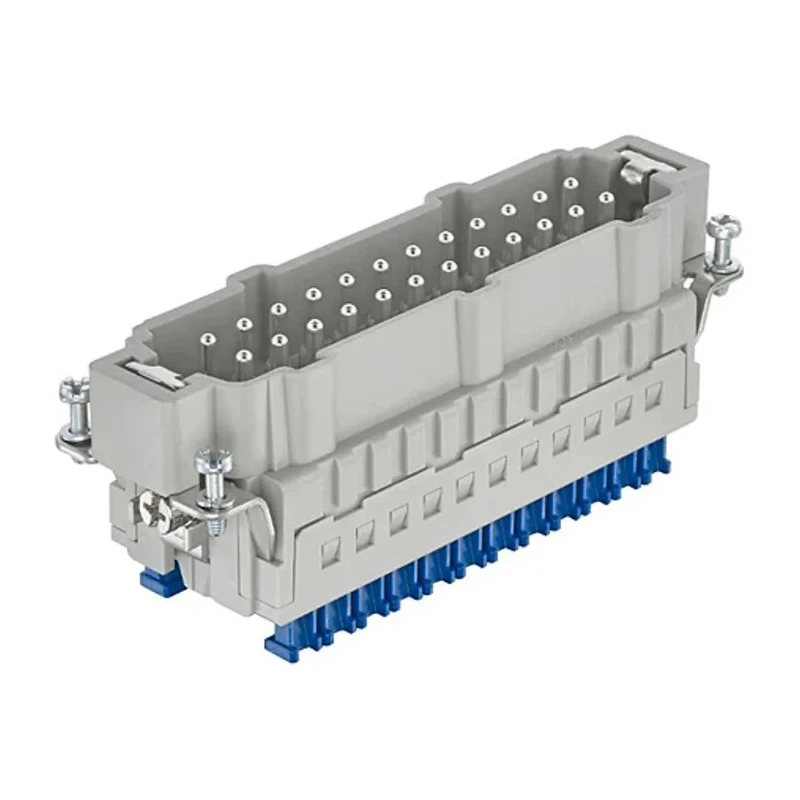

Harting Power Connector Insert 16A Han ES Press Series Male Panel Mount 48 Contacts 09330242688

Harting 09330242688 Power Connector Insert is a male connector insert from the Han ES Press series designed for heavy duty power connector systems. Rated for 16 amperes and operating at up to 500 volts, this 48-contact insert provides reliable and high-quality connection solutions for industrial applications. It features a vibration proof construction that ensures stable electrical contact even in demanding environments.

The insert uses cage clamp terminations, enabling quick and straightforward wiring without the need for additional tooling. This allows efficient assembly and maintenance in industrial, manufacturing, and automation settings. The contacts are made from copper alloy and are silver plated, which improves conductivity and resistance to corrosion over the product's life.

This connector insert supports wire sizes ranging from 0.14 mm² to 2.5 mm², providing flexibility to accommodate various wiring requirements. Optional ES Press plug-in jumpers can be utilized to bridge contacts directly inside the connector, facilitating star and delta motor connections for advanced motor control applications.

The insert is designed for panel mounting and features 48 poles arranged in 2 rows, with a thread size of M3 x 10 for secure installation. Compatible with a broad range of Harting hoods and housings including Han B, Han M, Han EMC, Han Easy Hood, and Han HPR models, this connector insert integrates seamlessly into established heavy duty connector systems.

Manufactured in Germany, the Harting 09330242688 maintains excellent quality and durability, making it suitable for industrial, automation, and power distribution applications. Its robust design and versatility make it an ideal choice for heavy duty connector needs.

Designed for heavy duty power connector applications. Features a vibration proof design for reliable connection. Accepts wire sizes from 0.14 mm² to 2.5 mm². Silver plated copper alloy contacts ensure robust conductivity.

Cage clamp terminations allow quick and easy wiring without additional tools. Supports optional plug-in jumpers for contact bridging and motor connections. Panel mount type with 48 poles and 2 rows configuration. Operates at a maximum voltage of 500V.

Manufactured in Germany with high-quality standards. Compatible with Han B, Han M, Han EMC, Han Easy Hood, and Han HPR housings. Explore the wide range of Harting heavy duty power connectors and related components at EnvMart for your industrial connection needs.
