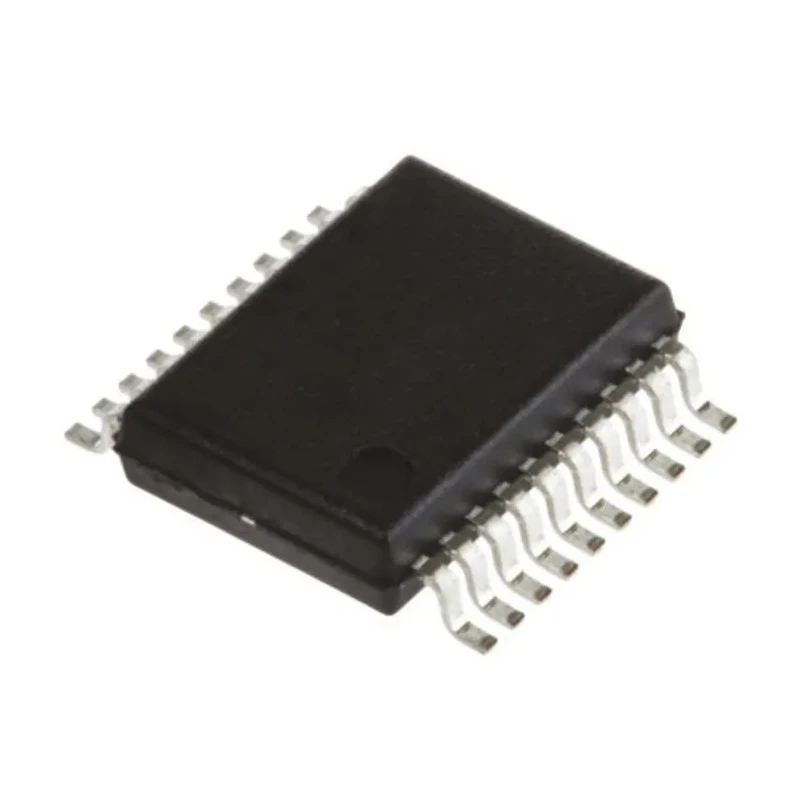

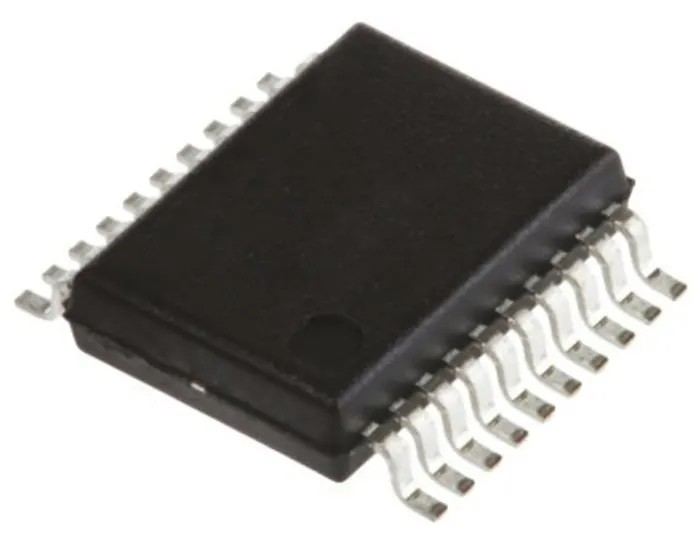

Infineon 8 bit PSoC M8C Microcontroller 24 MHz 16kB FLASH 20-Pin SSOP CY8C27243-24PVXIT

Infineon CY8C27243-24PVXIT is an 8 bit PSoC microcontroller featuring the efficient M8C Harvard-architecture processor running at a maximum clock frequency of 24 MHz. It includes 16kB FLASH program memory and 256 bit RAM memory designed for versatile embedded control applications across industrial, automotive, and consumer electronics.

Operating voltage range is 3.0 V to 5.25 V with an automotive-grade temperature range of -40°C to +85°C, ensuring reliable performance in harsh environments. The device comes in a compact 20-pin SSOP surface mount package and supports multiple interfaces including API, SPI, and UART for flexible communication.

This microcontroller provides advanced on-chip analog peripherals such as a 1 x 9 bit digital-to-analog converter (DAC), four analog comparators, and a 1 x 14 bit analog-to-digital converter (ADC) for precision analog signal handling. Two internal timers and rich digital peripherals such as pulse width modulators, counters, CRC, and pseudo-random sequence modules enhance its applicability in embedded designs.

Additional features include programmable pin configurations with drive modes (pull-up, pull-down, high Z, open drain), an internal ±5% 24 MHz oscillator, watchdog and sleep timers for power management, and EEPROM emulation within flash memory. The microcontroller supports in-system serial programming for flexible product development.

The product is RoHS compliant and designed for industrial, automotive, and embedded system applications requiring small form-factor, low power consumption, and high integration. This microcontroller is supported by free development tools including the PSoC Designer™ software and a full-featured in-circuit emulator and programmer, facilitating rapid prototyping and debugging.

Powerful Harvard-architecture M8C processor at 24 MHz. 16kB flash program storage with 256 bit RAM. Multiple analog and digital peripherals included. Wide operating voltage and temperature ranges. Compact 20-pin SSOP surface mount package.

Flexible communication via API, SPI, and UART interfaces. Low power consumption with sleep and watchdog timers. Supports in-system serial programming and EEPROM emulation. Fully RoHS compliant and automotive temperature rated.

Complete development toolchain with free software provided. Discover this and other Microcontrollers at EnvMart for your electronics design and embedded system needs.
