Panasonic S Relays 250V AC PCB Relay Socket for Use with S Series Relay AG3801

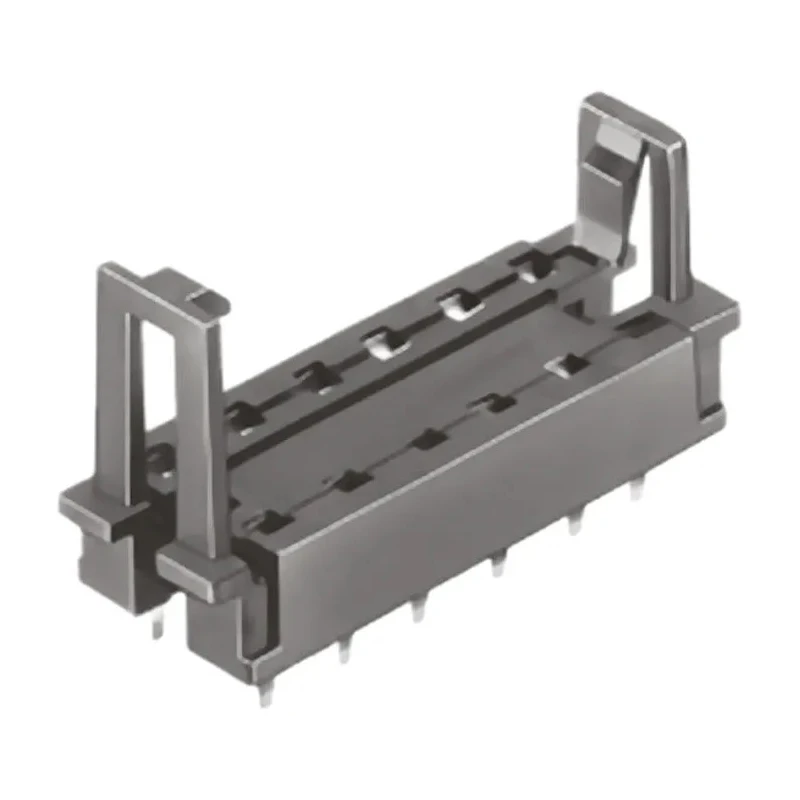

Panasonic AG3801 PCB Relay Socket is a robust relay socket designed specifically for compatibility with Panasonic S Series relays. Operating at a voltage of 250V AC and a current of 4A, this socket ensures reliable electrical connections within your control systems.

The socket features a PCB terminal type with a DIL terminal array configured for a 2.54mm pitch grid, facilitating straightforward mounting on printed circuit boards. The compact dimensions of 10 mm height, 28 mm width, and 12 mm depth allow for efficient use of PCB space in industrial and automation applications.

Manufactured in Japan, the AG3801 socket adheres to high-quality standards and complies with essential certifications such as RoHS, CSA, IEC, and UL, ensuring safety and durability under demanding environmental conditions.

This relay socket exhibits excellent mechanical resistance to vibration and shock, making it suitable for rugged industrial environments. The design also benefits from a low thermal electromotive force of approximately 0.3 μV, which contributes to maintaining signal integrity and reducing interference during operation.

Ideal for electrical automation, control gear, and relay mounting applications, the Panasonic AG3801 ensures secure and efficient signal conditioning in relay assemblies. The product supports enhanced control capabilities for industrial equipment, manufacturing processes, and electrical distribution systems.

Specifically engineered for Panasonic S Series relays. Supports a maximum voltage of 250V AC for reliable circuitry operation. Current rating is 4A ensuring adequate power handling. PCB terminal type allows easy mounting and integration on printed circuit boards.

Compliant with RoHS, CSA, IEC, and UL standards for safety and quality assurance. Compact design with dimensions 10 mm height, 28 mm width, and 12 mm depth. Manufactured in Japan assuring high quality standards. DIL terminal array fits standard 2.54 mm grid for PCB compatibility.

Excellent mechanical resistance to vibration and shock for durable performance. Low thermal electromotive force improves signal integrity during operation. Explore the Relay Sockets category on EnvMart for more industry-leading relay accessories and mounting solutions.
