onsemi High-Speed CMOS Logic Surface Mount Shift Register 74HC TSSOP 16-Pin MM74HC595MTCX

onsemi MM74HC595MTCX is a surface mount shift register featuring 74HC high-speed CMOS logic technology in a 16-pin TSSOP package. It operates over a voltage range of 2 to 6 volts and supports both input and output CMOS compatibility, making it suitable for diverse digital circuit designs.

This shift register implements a positive edge trigger type and operates reliably at temperatures up to 85°C. Its compact size with dimensions 5 mm in length, 4.4 mm width, and 1.1 mm height allows for efficient PCB space utilization in electronic assembly and manufacturing processes.

Designed as a single element shift register within the 74HC family, it is ideal for use in electronics and electrical semiconductor applications where high-speed logic performance is required.

The device does not comply with automotive standards but meets the needs of industrial, laboratory, and commercial electronic systems for signal and data management. Operates between 2 V and 6 V supply voltage with positive edge trigger.

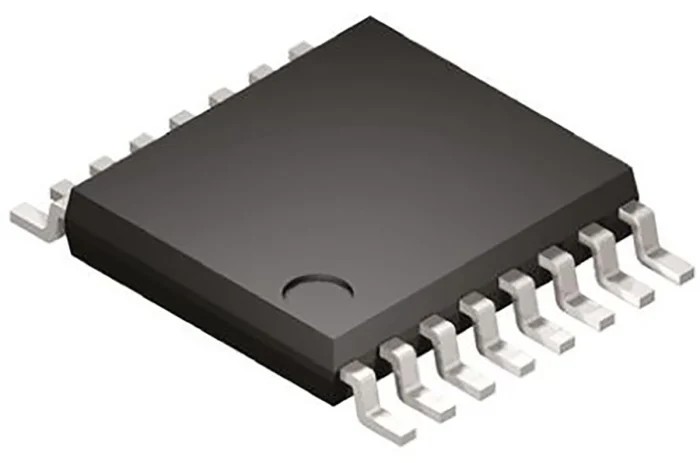

Compact 16-pin Thin Shrink Small Outline Package (TSSOP) with dimensions 5 x 4.4 x 1.1 mm. Compatible with Input CMOS and Output CMOS logic levels ensuring broad application. Supports maximum operating temperature of 85°C, suitable for typical industrial environments.

Single element 74HC595 Shift Register for efficient serial data line management. Surface mount technology facilitates automated PCB assembly.

Applications include use in industrial electronics for data shifting and temporary storage tasks, digital control systems, and other electronics requiring reliable serial-in parallel-out data handling.
