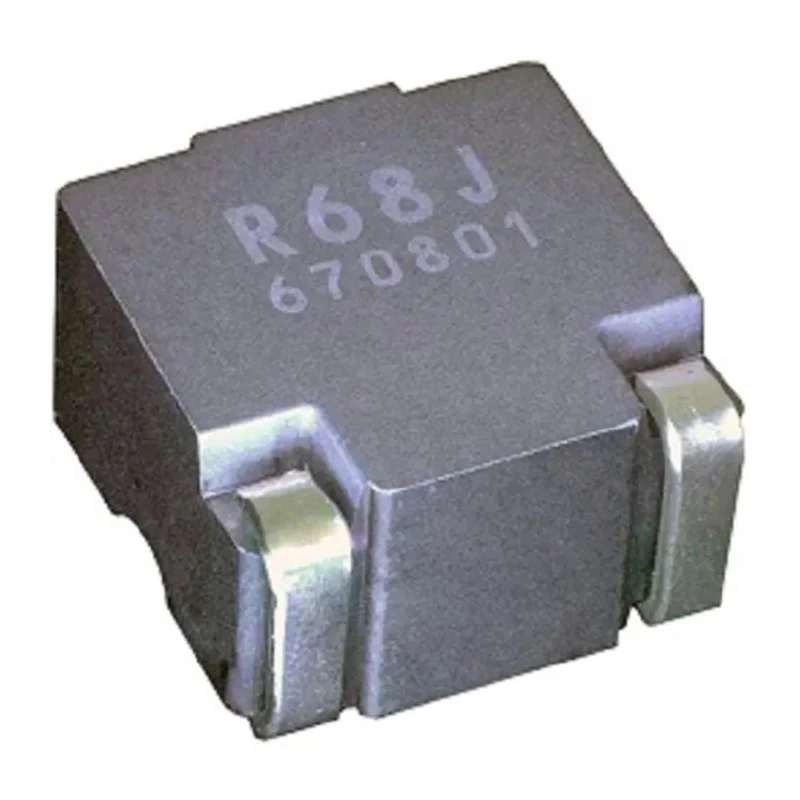

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 680 nH ±20% 42.6 A Idc ETQP8M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 8mm |
| Length | 12.6mm |
| Model | ETQP8M |
| Depth | 13.2mm |
| Packaging | Tape & Reel |
| Series | ETQP8M |
| Maximum Operating Temperature | 160°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 680nH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 42.6A |
| Pin Count | 2 |
| Maximum DC Resistance | 1.21mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- High heat resistance operation up to 160°C including self heat.
- Shielded construction reduces electromagnetic interference.
- Wirewound inductor construction ensures inductance stability.
- Certified to AEC-Q200 for automotive applications.
- Low audible noise for noise-sensitive electronics.
- Integral construction offers vibration resistance.
- Maximum DC resistance is 1.21 mΩ for efficiency.
- Surface mount termination style for SMT applications.
Product Description
Panasonic ETQP8M shielded wirewound surface mount inductor features a metal composite core with a nominal inductance of 680 nH and an inductance tolerance of ±20%. Designed for operation up to 160°C, this inductor supports a high maximum DC current of 42.6 A, making it ideal for demanding power electronics applications.
The inductor benefits from a shielded construction that minimizes electromagnetic interference, providing stable performance in sensitive electronic circuits. Its wirewound construction and ferrous alloy magnetic material contribute to excellent inductance stability under thermal and mechanical stress.
This component complies with the automotive AEC-Q200 standard, confirming its suitability for automotive and industrial environments requiring high reliability and vibration resistance. Its integral moulded design further enhances its durability against mechanical shocks and vibrations.
With a low maximum DC resistance of 1.21 mΩ, the ETQP8M is highly efficient and aids in reducing energy losses. The inductor's height is 8 mm, length 12.6 mm, and depth 13.2 mm, designed for surface mount assembly with 2 pins and tape & reel packaging to support high-volume automated manufacturing.
The Panasonic ETQP8M serves as an effective noise filter for various drive circuitry requiring high temperature operation and peak current handling capability. It also delivers low audible noise and excellent temperature stability, critical for precision electronic applications.
High heat resistance operation up to 160°C including self heat. Shielded construction reduces electromagnetic interference. Wirewound inductor construction ensures inductance stability. Certified to AEC-Q200 for automotive applications.
Low audible noise for noise-sensitive electronics. Integral construction offers vibration resistance. Maximum DC resistance is 1.21 mΩ for efficiency. Surface mount termination style for SMT applications. Packaged on tape & reel for automated assembly.
Metal composite core enhances performance under stress.
This Panasonic Surface Mount Inductor is ideal for industrial, automotive, electronic manufacturing, and power supply applications where high current handling, temperature stability, and noise reduction are critical. Discover more high-quality inductors and electronic components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of the Panasonic ETQP8M inductor is 680 nH with an inductance tolerance of ±20%.
This model has a maximum DC current rating of 42.6 A, making it suitable for high current applications.
The ETQP8M inductor can operate at a maximum temperature of 160°C.
It features a wirewound construction, which ensures inductance stability under various conditions.
The dimensions of the ETQP8M inductor are 8 mm in height, 12.6 mm in length, and 13.2 mm in depth.
The termination style of this inductor is surface mount, designed for SMT applications.
Yes, the ETQP8M is certified to the AEC-Q200 standard, confirming its suitability for automotive applications.
The maximum DC resistance of the ETQP8M inductor is 1.21 mΩ, which contributes to its efficiency.
It is packaged on tape & reel, which supports high-volume automated manufacturing.
The minimum operating temperature for the ETQP8M inductor is -40°C.
The maximum self-resonant frequency of this inductor is 100 kHz.
The core material of the ETQP8M inductor is a metal composite, enhancing its performance under stress.
