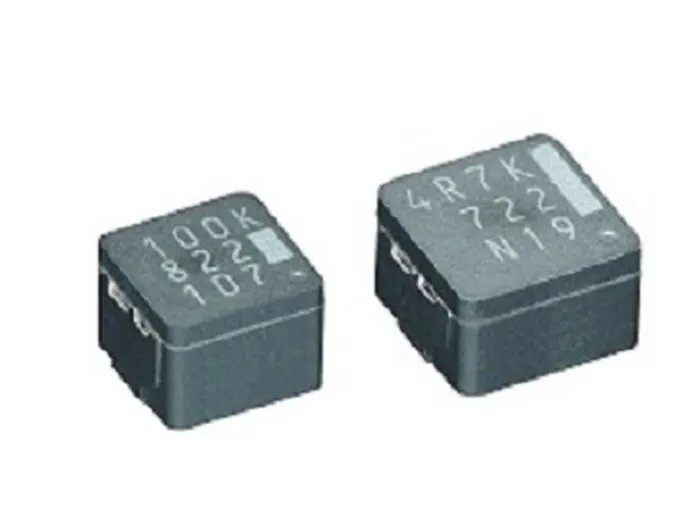

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 10μH ±20% 5.2A Idc ETQP4M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 4.8mm |
| Length | 6.4mm |
| Model | ETQP4M |
| Depth | 6mm |
| Packaging | Tape & Reel |
| Series | ETQP4M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 5.2A |
| Pin Count | 2 |
| Maximum DC Resistance | 44.44mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features high heat resistance and reliability with a metal composite core.
- Incorporates shielded construction to reduce electromagnetic interference.
- Operates at temperatures up to 150°C including self heating effects.
- Complies with automotive standard AEC-Q200 for demanding applications.
- Designed with low audible noise and high vibration resistance.
- Surface mount package ensures compact PCB footprint and assembly efficiency.
- Maximum DC resistance is 44.44mΩ for efficient performance.
- Constructed with wirewound inductor architecture ensuring inductance stability.
Product Description
Panasonic ETQP4M Shielded Wirewound Surface Mount Inductor with Metal Composite Core provides reliable inductance of 10μH with ±20% tolerance and supports a maximum DC current of 5.2 A. It is designed to operate effectively under harsh thermal conditions up to 150°C, making it suitable for industrial, automotive, and commercial electronics applications.
This Surface Mount Inductor benefits from a metal composite core and a wirewound construction that delivers excellent inductance stability and low audible noise. The shielded design minimizes electromagnetic interference, ensuring compliant and reliable operation in sensitive electronic circuits.
Meeting the automotive AEC-Q200 standard, this inductor is engineered for high vibration resistance and durability. Its surface mount package with a length of 6.4 mm, height of 4.8 mm, and depth of 6 mm provides a compact form factor compatible with automated PCB assembly lines.
High heat resistance and reliability through metal composite core design. Shielded construction to reduce interference and noise. Operational temperature up to 150°C including self heating allowances. Compliance with automotive grade AEC-Q200 for demanding environments.
Low audible noise suitable for noise filtering circuits. Tape and reel packaging enables efficient manufacturing integration. Maximum DC resistance of 44.44mΩ for efficient electrical performance. Wirewound inductor construction ensures stable inductance under bias.
This Panasonic ETQP4M inductor serves a wide range of electronic applications including power management, signal filtering, and automotive electronics, where robust performance and thermal stability are critical. The product's metal composite core and robust construction guarantee operation reliability in industrial and commercial electronics manufacturing environments.
Explore more high-quality Panasonic inductors and electronic components in the Electronics & Electricals category at EnvMart for your manufacturing and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10μH with a tolerance of ±20%.
It supports a maximum DC current of 5.2A.
This unit has dimensions of 6.4 mm in length, 4.8 mm in height, and 6 mm in depth.
The maximum operating temperature is 150°C, including self-heating effects.
It complies with the automotive standard AEC-Q200, making it suitable for demanding applications.
It features a wirewound construction which ensures inductance stability.
The shielded construction reduces electromagnetic interference, ensuring reliable operation in sensitive electronic circuits.
The maximum DC resistance is 44.44mΩ, which contributes to its efficient performance.
It is packaged in tape and reel format, which facilitates efficient manufacturing integration.
The minimum operating temperature is -40°C.
This inductor is suitable for applications in power management, signal filtering, and automotive electronics.
It complies with RoHS standards, ensuring it meets environmental regulations.
