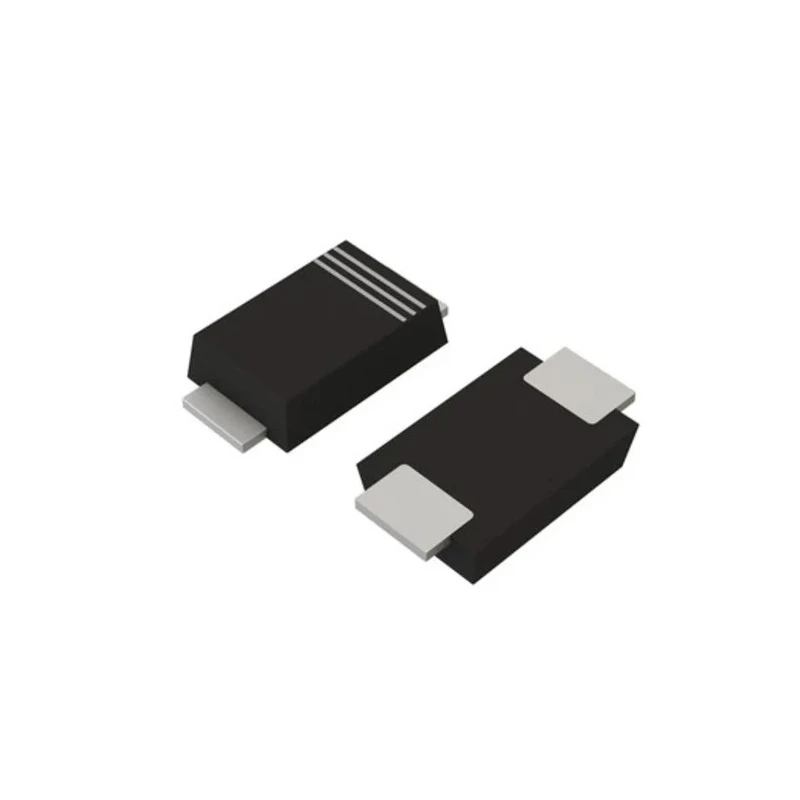

ROHM Schottky Diode SOD-128 Package, 100 V, 2 A, 2-Pin, RB068LAM100TFTR

ROHM RB068LAM100TFTR is a high-performance Schottky diode featuring a silicon epitaxial planar structure encapsulated in a compact SOD-128 surface mount package. Rated at 100 V peak reverse voltage and 2 A continuous forward current, this diode delivers excellent performance in rectification and switching applications often required in automotive, industrial, and consumer electronics sectors.

Its low forward voltage drop of 0.81 V minimizes power loss and heat generation, enhancing overall circuit efficiency. The diode supports a peak non-repetitive forward surge current of 70 A, allowing it to handle transient overloads effectively. Certified with the automotive standard AEC-Q101, it is suitable for automotive-grade applications requiring high reliability.

The device's physical dimensions of 4.7 mm length, 2.5 mm width, and 0.95 mm height combine to provide a space-saving solution for modern PCB layouts. Its maximum operating temperature is 175°C, ensuring stable performance under demanding thermal conditions common in industrial and automotive environments.

Designed as a single diode with 2 pins, the RB068LAM100TFTR simplifies assembly and integration into various semiconductor circuit designs. This reliable Schottky diode is ideal for use in power supplies, voltage clamping, and high-speed switching circuits, contributing to efficient power management and transient suppression.

Typical use cases include power rectification in DC-DC converters, solar inverters, battery management systems, and automotive electronic control units (ECUs). The diode's compact form factor and robust electrical characteristics make it a preferred choice for engineers designing cost-effective, space-efficient, and durable electronics.

Maximum continuous forward current of 2 A ensuring reliable conduction. Peak reverse repetitive voltage rated at 100 V for robust operation. Low forward voltage drop of 0.81 V improves efficiency. Small SOD-128 surface mount package with precise dimensions 4.7 mm x 2.5 mm x 0.95 mm.

Peak non-repetitive forward surge current up to 70 A handles surge conditions efficiently. Automotive certified to AEC-Q101 standard for enhanced reliability. Maximum operating temperature of 175°C suitable for harsh environments.

Single diode with 2 pins for straightforward PCB integration. Discover a wide range of semiconductor components and Schottky diodes at EnvMart for your industrial and electronic design needs.
