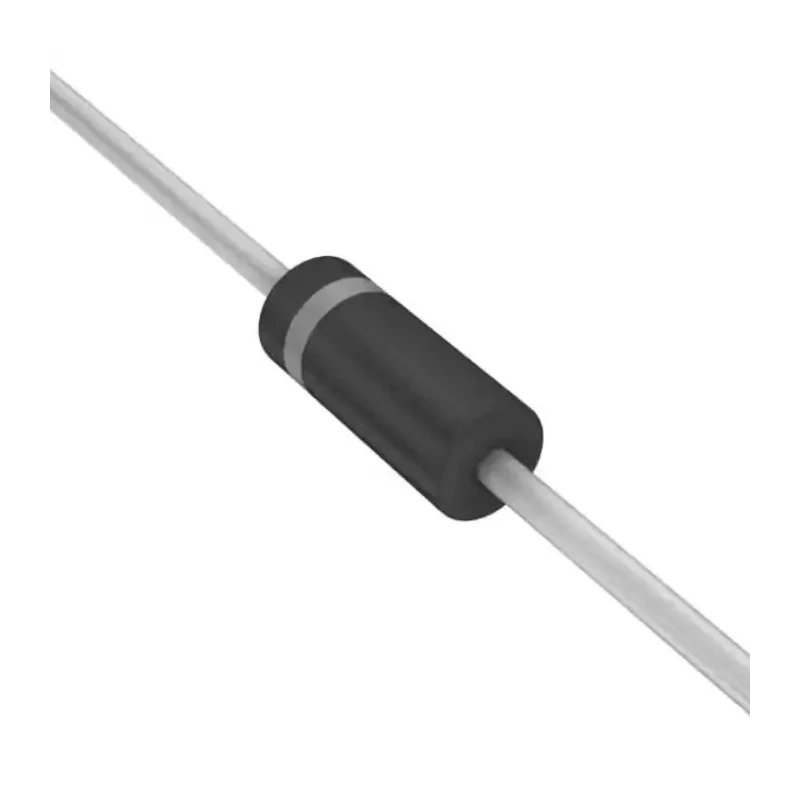

onsemi 27 V 5 W Through Hole Single Zener Diode Voltage Regulator 1N5361BG

The onsemi 1N5361BG is a 27 V nominal Zener diode designed for voltage regulation purposes, capable of dissipating up to 5 Watts of power in a robust through-hole axial package (Case 017AA). Manufactured with silicon-oxide passivated junctions, it delivers enhanced operational stability and electrical performance suitable for a variety of industrial electronic applications.

This single Zener diode maintains a tight voltage tolerance of ±5%, making it highly reliable for voltage regulation and surge protection circuits. It features a maximum Zener impedance of 5 ohms and a low reverse leakage current of 500 nanoamperes, ensuring high efficiency and minimizing leakage losses in sensitive electronic designs.

The device operates efficiently over a wide temperature range from -65°C to 200°C, which allows its use in demanding environments such as automotive, industrial, and power electronics sectors. The case is void-free, transfer-molded thermo-setting plastic, corrosion resistant with readily solderable leads for secure and long-lasting circuit connections.

Its polarity is clearly marked with a cathode color band, facilitating correct installation. The diode also supports any mounting orientation without impacting its performance. The product weighs approximately 0.7 grams, reflecting its compact axial size with dimensions of 8.89 mm length and 3.68 mm height.

Single diode configuration suitable for voltage regulation applications. Nominal Zener voltage of 27 V with ±5% tolerance. Maximum power dissipation of 5 Watts. 2-pin axial through-hole Case 017AA package. Low maximum reverse leakage current of 500 nA.

Wide operating temperature range from -65°C to 200°C. Corrosion-resistant finish and solderable leads. Cathode polarity indicated by color band. Compact dimensions suitable for industrial PCB designs.

This diode series is ideal for industrial power supply circuits, voltage reference and regulation, and other electronics requiring stable voltage control. It meets RoHS compliance and is manufactured in China. Explore additional voltage and power rating Zener Diodes to suit diverse application requirements on EnvMart.
