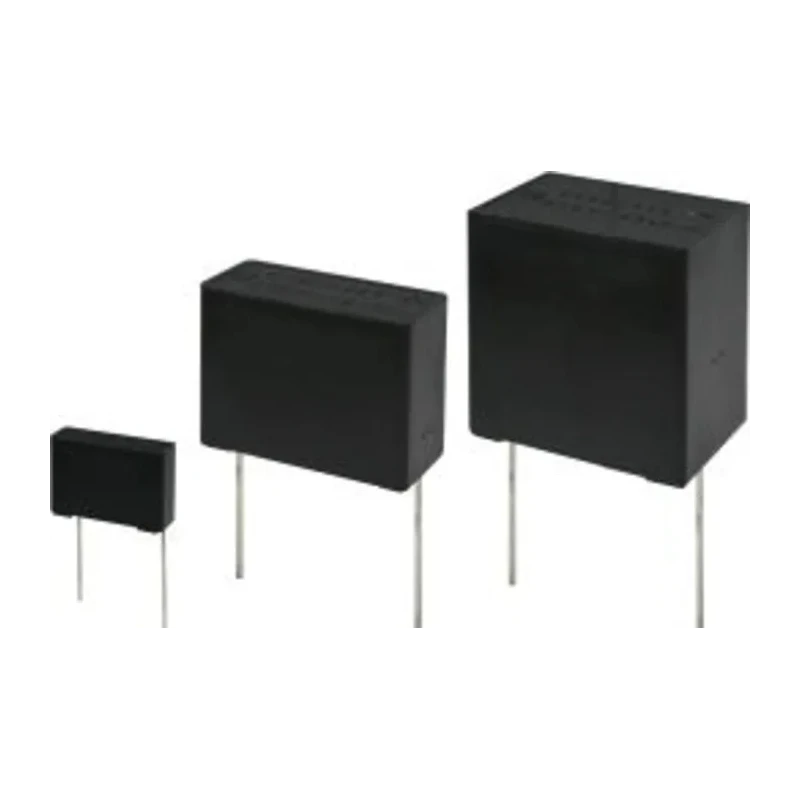

Panasonic ECQUA Film Capacitor X2, ±10 %, 330 nF, 275V AC, Through Hole Mount ECQUAAF334T1

Panasonic ECQUAAF334T1 is a high-safety X2 class film capacitor designed for interference suppression in automotive and industrial electronic circuits. It features a capacitance of 330 nF with a ±10% tolerance and is rated for AC voltages up to 275V. This capacitor utilizes a through hole mounting style with a 15 mm lead pitch, providing secure solder connections on printed circuit boards.

Engineered for harsh environments, it meets the AEC-Q200 automotive standard and withstands high humidity conditions (THB test: 85 °C, 85% RH, 240 VAC for 1000 hours) as well as extreme thermal shock cycles (-40°C to 85°C for 1000 cycles), ensuring reliable performance over extended usage.

The construction includes flame-retardant plastic casing and non-combustible resin materials, enhancing safety and durability in electronic assemblies, particularly in automotive electronics, industrial power systems, and suppression applications.

Physical dimensions are compact with 17.5 mm length, 9 mm width, and 16 mm height, accommodating a wide range of PCB layouts. The leads have a length of 20 mm and a diameter of 0.6 mm facilitating easy soldering.

This capacitor complies with international safety standards UL 60384-14, EN 60384-14, and CSA E60384-14 to meet regulatory requirements and quality assurance for industrial and automotive applications.

Capacitance of 330 nF with ±10% tolerance provides precise electrical characteristics. Rated for 275V AC ensuring compatibility with common industrial voltage levels. Through hole mounting style with 15 mm lead pitch for secure mechanical support.

Meets AEC-Q200 standard for automotive reliability and quality. High resistance to humidity and thermal shock guarantees longer operational life. Flame-retardant and non-combustible materials enhance safety in circuits. Operating temperature range from -40°C to 110°C suitable for demanding conditions.

Approved to UL, EN, and CSA safety standards.

This Panasonic film capacitor is ideal for use in automotive interference suppression circuits, industrial electronic assemblies, power supply filtering, and noise reduction in PCB designs. Its robust construction and compliance with automotive and safety standards enable confident application in manufacturing, automotive electronics, HVAC systems, and industrial machinery.
