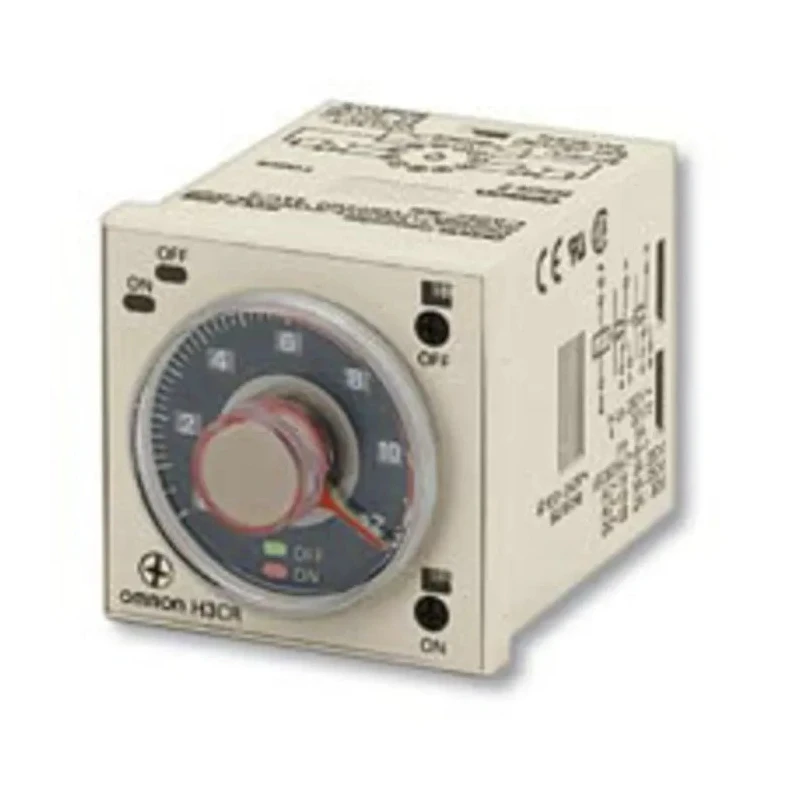

Omron H3CR Series DIN Rail Timer Relay, 11-Contact, DPDT Switch, Multifunction, 24V AC, 48V AC, 0.05 s to 30 h

Free Delivery in India | Lowest Global Shipping Charges

Omron H3CR Series DIN Rail Timer Relay, 11-Contact, DPDT Switch, Multifunction, 24V AC, 48V AC, 0.05 s to 30 h

Name: Omron H3CR Series DIN Rail Timer Relay, 11-Contact, DPDT Switch, Multifunction, 24V AC, 48V AC, 0.05 s to 30 h
Brand: Omron
SKU: 319026
Price: 174.72 USD
Availability: InStock



Category Timer Relay Brand Omron Condition New

Specifications

Country of Origin	Indonesia
Brand	Omron
Height	84mm
Function	Multifunction
Length	48mm
Model	H3CR
IP Rating	IP40
Mode	Star-Delta
Width	48mm
Mount Type	DIN Rail
Series	H3CR
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Minimum Operating Temperature	-10°C
Time Range	0.05 s to 30 h
Terminal type	Crimp
Standards/Approvals	CE, CSA C22.2 No.14, NK, Lloyds, EN61812-1, IEC60664-1, UL508, CCC
Number of Contacts	11
Number of Timer Functions	Multifunction
Switching Voltage	250V ac
Contact Current	5A
Timing Adjustment	Knob
Supply AC Voltage	24, 48V ac

Key Features

Operates on supply voltages of 24V and 48V AC.
Equipped with 11 contacts supporting DPDT configuration for versatile control.
Adjustable timing range spans 0.05 seconds up to 30 hours for flexible automation.
Designed for DIN rail mount with crimp terminal type for easy installation.
Supports a maximum contact current of 5A suitable for heavy-duty applications.
Temperature operating range from -10°C to 55°C ensures reliability in varied environments.
Robust multifunction timer suitable for industrial automation and control systems.
Multiple timer functions and star-delta mode enhance control versatility.

Product Description

Omron H3CR H3CR-FN AC24-48/DC12-48 is a high-performance DIN rail timer relay designed for industrial automation and timed control applications. It operates on 24V to 48V AC supply voltage and supports multifunctional timing operations from 0.05 seconds to 30 hours. With 11 contacts arranged in a DPDT configuration, this relay provides versatile connectivity and control options for complex industrial processes.

This timer relay is designed for secure mounting on standard DIN rails, featuring crimp type terminals to facilitate straightforward and reliable wiring. The device supports a maximum contact switching voltage of 250V AC and carries a contact current rating of 5A, making it suitable for robust operational demands.

Operating within an environmental temperature range from -10°C to +55°C and rated with IP40 ingress protection, this relay ensures dependable performance in a variety of industrial settings including automated machinery, HVAC control, lighting systems requiring flicker ON start operation, and other timed industrial applications.

Its compact form factor with dimensions of 48mm in width, 84mm height, and 48mm length allows efficient panel integration. The timer features an easy-to-use knob for precise timing adjustment and offers dual timer functions, including star-delta operating mode for enhanced functional flexibility.

The Omron H3CR timer relay complies with international standards and approvals including CE, CSA C22.2 No.14, NK, Lloyds, EN61812-1, IEC60664-1, UL508, and CCC certifications, testifying to its quality and safety for industrial deployment.

Operates with a timing range from 0.05 seconds to 30 hours. Includes 11 contacts with DPDT switch configuration. Supports supply voltages of 24V and 48V AC. Crimp terminal mounting on DIN rail for easy installation. Rated for 5A contact current and 250V AC switching voltage.

Environmental operation from -10°C to 55°C temperature range. Compact dimensions for space-efficient panel mounting. Designed for industrial automation, HVAC, and lighting control applications. Complies with multiple international safety and quality standards.

Explore more premium Timer Relays and automation components at EnvMart to optimize your industrial control systems.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The timing range of this model spans from 0.05 seconds to 30 hours, allowing for flexible automation applications.

It operates on supply voltages of 24V AC and 48V AC, making it suitable for various industrial applications.

This timer relay is equipped with 11 contacts arranged in a DPDT configuration, providing versatile control options.

The maximum contact current rating is 5A, which is suitable for heavy-duty applications.

This unit has compact dimensions of 48mm in width, 84mm in height, and 48mm in length, facilitating efficient panel integration.

It operates effectively within a temperature range of -10°C to 55°C, ensuring reliability in various environments.

It is designed for DIN rail mounting, featuring crimp type terminals for straightforward installation.

This model has an IP40 ingress protection rating, suitable for various industrial settings.

It supports multiple timer functions, including a star-delta mode for enhanced control versatility.

The maximum contact switching voltage is 250V AC, accommodating a range of industrial applications.

It complies with several international standards and approvals, including CE, UL508, and IEC60664-1, ensuring its quality and safety for industrial use.

Timing adjustment is made easy with a knob, allowing for precise control over the timing settings.
