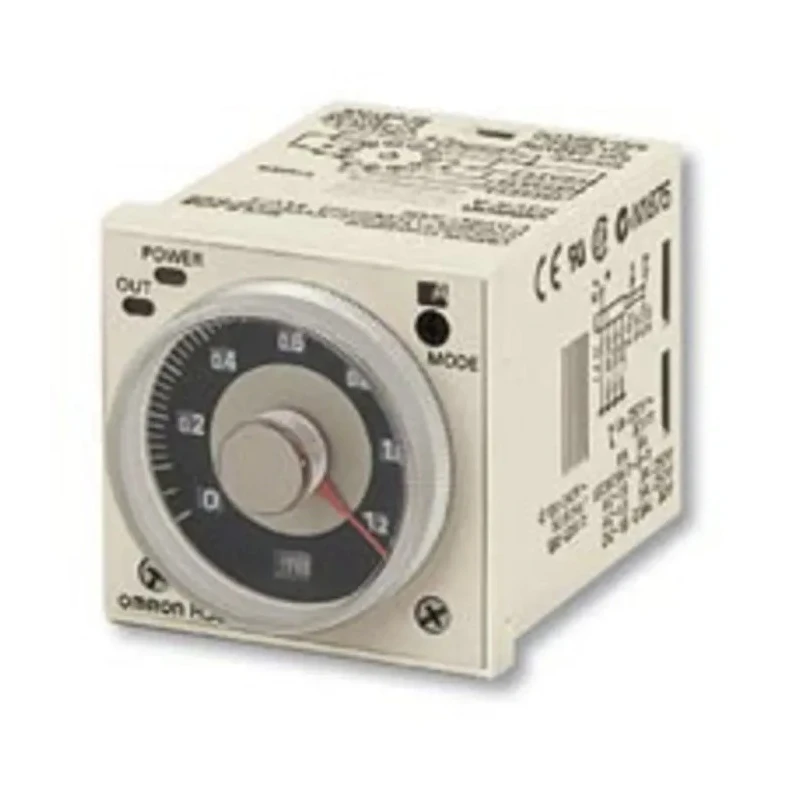

Omron Multifunction DIN Rail Timer Relay with 0.05 s to 300 h Range, 12 to 48 V DC / 24, 48 V AC Supply, 5A Contact H3CR

Free Delivery in India | Lowest Global Shipping Charges

Omron Multifunction DIN Rail Timer Relay with 0.05 s to 300 h Range, 12 to 48 V DC / 24, 48 V AC Supply, 5A Contact H3CR

Name: Omron Multifunction DIN Rail Timer Relay with 0.05 s to 300 h Range, 12 to 48 V DC / 24, 48 V AC Supply, 5A Contact H3CR
Brand: Omron
SKU: 319018
Price: 117.09 USD
Availability: InStock



Category Timer Relay Brand Omron Condition New

Specifications

Country of Origin	Indonesia
Brand	Omron
Height	81.6mm
Function	Multifunction
Length	48mm
Model	H3CR
IP Rating	IP40
Mode	ON Delay
Width	48mm
Mount Type	DIN Rail
Series	H3CR
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-10°C
Time Range	0.05 s to 300 h
Terminal type	Crimp
Standards/Approvals	EN61812-1, UL, CE, NK, Lloyds, CCC, IEC60664-1, CSA
Number of Timer Functions	Multifunction
Switching Voltage	250V
Contact Current	5A
Supply DC Voltage	12 to 48 V
Timing Adjustment	Knob
Supply AC Voltage	24, 48V ac

Key Features

Versatile time range enables precise process control in industrial automation.
Accepts both DC and AC supply voltages for flexible installation options.
Rated contact current of 5 amperes suitable for moderate load switching.
Compact DIN rail mount design with IP40 rating for indoor control panels.
Multifunction timer providing various timing modes to suit diverse applications.
Operating temperature range from -10 to 55 degrees Celsius accommodates typical factory environments.
Manual timing adjustment via front knob for straightforward setup.
Complies with international standards including EN61812-1, UL, CE, and CSA.

Product Description

Omron H3CR-AS AC24-48/DC12-48 multifunction DIN rail timer relay is engineered for reliable timing control in automation and industrial machinery. It operates over a wide time range from 0.05 seconds to 300 hours, allowing fine-tuned control over process sequences and machine functions.

The relay supports a range of supply voltages, accepting 12 to 48 V DC and 24 to 48 V AC, facilitating versatile power sourcing. It features a contact current rating of 5 amperes and a switching voltage maximum of 250 volts, making it suitable for moderate electrical loads found in production and control systems.

This device mounts easily onto standard DIN rails employing plug-in terminals for secure and quick installation. The IP40 enclosure rating provides protection for indoor applications, safeguarding against solid foreign objects while fitting compactly within control panels thanks to its 48 mm width and 81.6 mm height footprint.

Designed for multifunctional timing tasks, the relay enables a variety of operational modes adaptable to conveyor systems, motor start/stop sequences, interlocking controls, and PLC auxiliary timing functions. Its operating temperature rating from -10 to 55 degrees Celsius supports usage in typical factory and plant environments.

Versatile timer with adjustable range from 0.05 seconds to 300 hours. Compatible with both AC and DC supply voltages for application flexibility. Rated for 5A contact current and 250V switching voltage. Durable IP40 enclosure suitable for protected indoor use.

Compact DIN rail mounting with plug-in terminals for easy installation. Manual timing adjustment knob for quick and precise setup. Conforms to key international standards including UL, CE, and CSA. Ideal for use in conveyor sequence control, interlocks, and soft-start motor control.

Robust for industrial automation and control panel applications.

This timer relay is manufactured in Indonesia and is classified as a new product. It is a reliable choice for integrating timing functions in electrical automation systems, improving process control and operational safety.

Explore more from Omron and related Timer Relays to optimize your industrial automation setup here at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The timer relay operates over a time range from 0.05 seconds to 300 hours, allowing for precise control in various applications.

It accepts both DC and AC supply voltages, specifically 12 to 48 V DC and 24 to 48 V AC, providing flexible installation options.

The relay has a rated contact current of 5 amperes, making it suitable for moderate load switching.

The maximum switching voltage for this model is 250 volts, allowing it to handle typical electrical loads in industrial settings.

This model has an IP40 rating, which provides protection against solid foreign objects, making it suitable for indoor applications.

The timer relay has a compact design with dimensions of 48 mm in width, 48 mm in length, and 81.6 mm in height.

The timing adjustment is done manually via a front knob, allowing for straightforward setup and precise timing control.

The operating temperature range is from -10 to 55 degrees Celsius, accommodating typical factory environments.

It complies with several international standards, including EN61812-1, UL, CE, and CSA, ensuring safety and reliability.

This timer relay is designed for DIN rail mounting, which facilitates easy installation in control panels.

It is suitable for various applications including conveyor systems, motor start/stop sequences, interlocking controls, and PLC auxiliary timing functions.

This timer relay is manufactured in Indonesia, ensuring compliance with international manufacturing standards.
