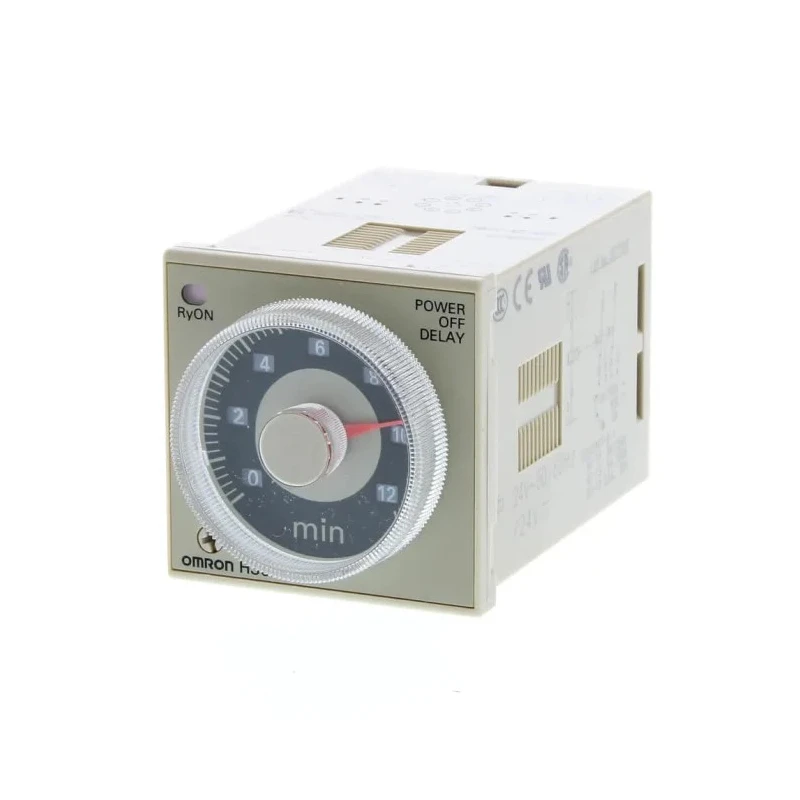

Omron Multifunction DIN Rail Timer, 2-Contact DPDT, 100 to 125 V dc 200-240 V ac, Time Range 0.05 s to 12 min, Plug-In H3CR

Omron H3CR-HRL AC200-240 M is a multifunction DIN rail timer designed for industrial control and automation applications. It features a dual voltage supply capability, accepting 100 to 125 V DC and 200 to 240 V AC input, enabling flexible integration into a variety of electrical and automation systems.

This timer provides precise timing control with selectable time ranges from 0.05 seconds to 12 minutes, making it suitable for delay, sequencing, and interlocking functions. The device is equipped with DPDT (Double Pole Double Throw) contacts rated at 5A, allowing it to switch control circuits reliably under typical industrial loads.

Designed for convenience, the timer mounts easily on a standard DIN rail using a plug-in terminal configuration. The timer adjustment knob allows on-site timing changes without the need for specialized tools, facilitating rapid on-site tuning and maintenance. The compact 48 mm width and length with a height of 93 mm save panel space while providing robust functionality.

With an IP40 rating, the enclosure protects the timer in protected indoor environments typically found in factory automation, electrical panels, and commercial controls. It operates reliably within an ambient temperature range from -10°C to 55°C, suitable for most industrial installation conditions.

The timer conforms to major international safety and performance standards such as EN 61812-1, UL 508, IEC 60664-1, CE marking, CSA C22.2 No.14, Lloyd’s and CCC certifications, ensuring compliance and trusted operation worldwide.

Operates with dual AC/DC supply voltage for versatile application. Compact DIN rail mounting with plug-in terminals. Precision timing from 0.05 seconds up to 12 minutes. Rated for 5A contact current with DPDT switching configuration.

IP40 protected enclosure for indoor use. Wide operating temperature range from -10°C to 55°C. Multipurpose timing functions suitable for industrial automation. Simple timing adjustments via knob control. Compliant with multiple international safety and quality standards.

This Omron H3CR-HRL AC200-240 M timer relay is widely used in industrial automation systems including motor control sequencing, conveyor timing, HVAC controls, laboratory equipment, test rigs, and electrical interlocking tasks. Its multifunction timing and robust design make it a reliable choice for process sequencing and time-dependent switching needs.
