Nexperia Low Leakage Switching Diode, Single 215 mA, 2-Pin 75 V, Surface Mount SOD-123 Package BAS116GWX

Category Discrete Semiconductor Brand Nexperia Condition New

Specifications

Country of Origin India
Brand Nexperia
Height 1.3mm
Length 2.8mm
Model BAS116GWX
Width 1.7mm
Mount Type Surface
Maximum Operating Temperature 150°C
Package Type SOD-123
Sub Type Switching Diode
Minimum Operating Temperature -55°C
Pin Count 2
Automotive Standard AEC-Q101
Maximum Power Dissipation Pd 600mW
Diode Configuration Single
Maximum Forward Voltage Vf 1.25V
Peak Reverse Recovery Time trr 3μs
Maximum Forward Current If 215mA
Maximum Peak Reverse Repetitive Voltage Vrrm 75V

Key Features

  • The diode has a maximum peak reverse voltage of 75 V ensuring robust reverse voltage tolerance.
  • Maximum power dissipation is 600 mW allowing stable operation at moderate power levels.
  • It offers a very low leakage current of 3 pA for energy-efficient circuit designs.
  • High switching speed with peak reverse recovery time of 3 microseconds enables fast switching applications.
  • Small dimensions of 2.8 mm length, 1.7 mm width, and 1.3 mm height facilitate space-saving PCB layouts.
  • SOD-123 plastic surface mount package provides reliable encapsulation suitable for automated assembly.
  • Operating temperature range from -55°C to 150°C supports use in harsh industrial environments.
  • The device is AEC-Q101 automotive qualified ensuring quality and reliability for automotive electronics.

Product Description

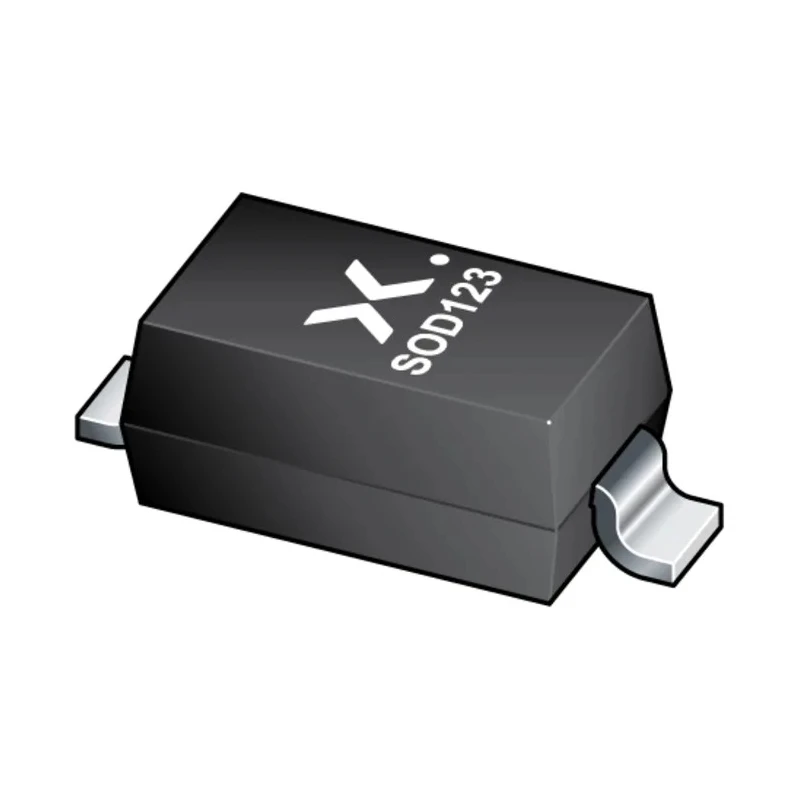

Nexperia BAS116GWX low leakage switching diode is a single diode configured semiconductor device designed for precise low leakage current applications. Packaged in a compact SOD-123 small surface-mounted device (SMD) plastic case, it offers excellent electrical performance with a maximum forward current rating of 215 mA and a maximum peak reverse voltage of 75 V. This diode is engineered for high switching speed with a peak reverse recovery time of 3 μs and maintains a low leakage current of just 3 pA, making it ideal for sensitive electronic circuits.

Due to its low capacitance of 2 pF, the diode is suitable for high-frequency and fast switching circuits. The compact dimensions (2.8 mm length, 1.7 mm width, 1.3 mm height) enable efficient PCB space utilization in industrial, automotive, and consumer electronics applications. It withstands harsh operating temperatures from -55°C up to 150°C, ensuring reliability in demanding environments.

This diode meets the automotive standard AEC-Q101, certifying its endurance and performance in automotive electronics systems. Its low leakage and quick recovery characteristics make it ideal for switching and protection circuits, signal processing, and other general-purpose semiconductor applications.

The diode is a surface mount device with 2 pins in SOD-123 plastic package. It supports maximum power dissipation of 600 mW. Low leakage current ensures minimal power loss in circuits. Designed for fast switching needs with 3 μs peak reverse recovery time.

Robust automotive qualification enhances its applicability in vehicle electronics. Compact size allows for optimized, space-constrained designs. Suitable for electronics manufacturing, industrial controls, and automotive circuits.

For professional engineers and designers seeking reliable and efficient low leakage switching diodes, the Nexperia BAS116GWX offers a high-quality component that meets stringent industrial and automotive standards. Explore more such semiconductor components and switching diodes in the EnvMart catalog for your industrial electrical and electronics projects.
