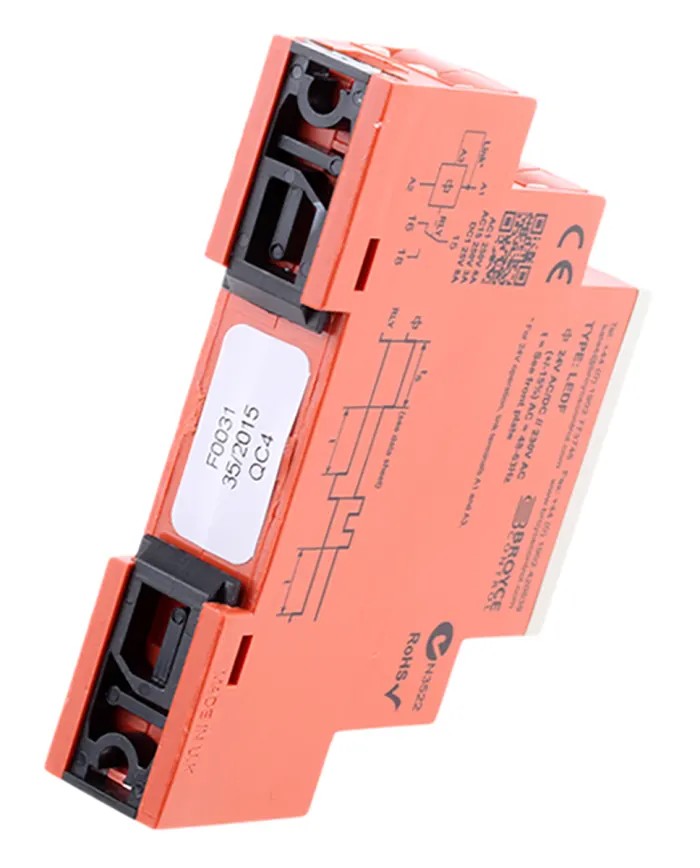

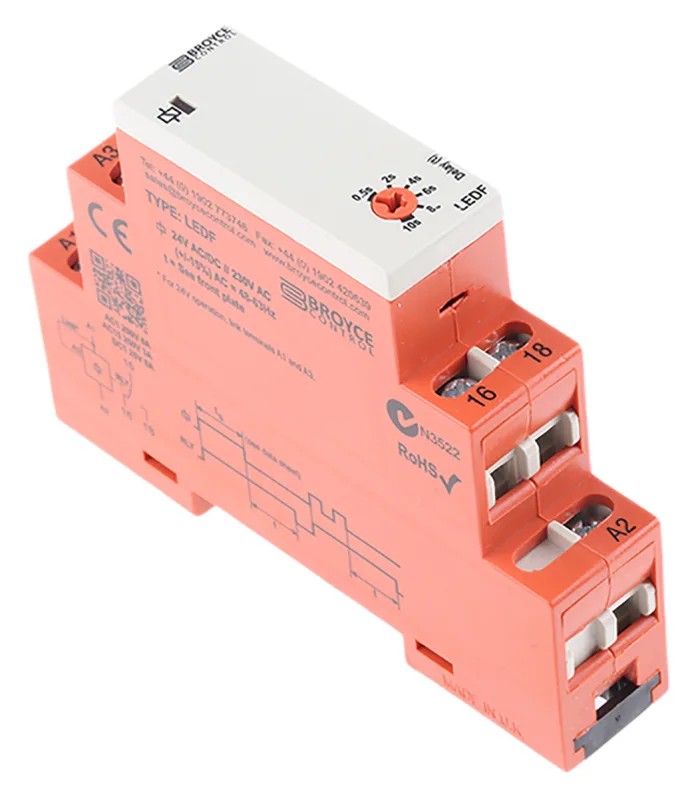

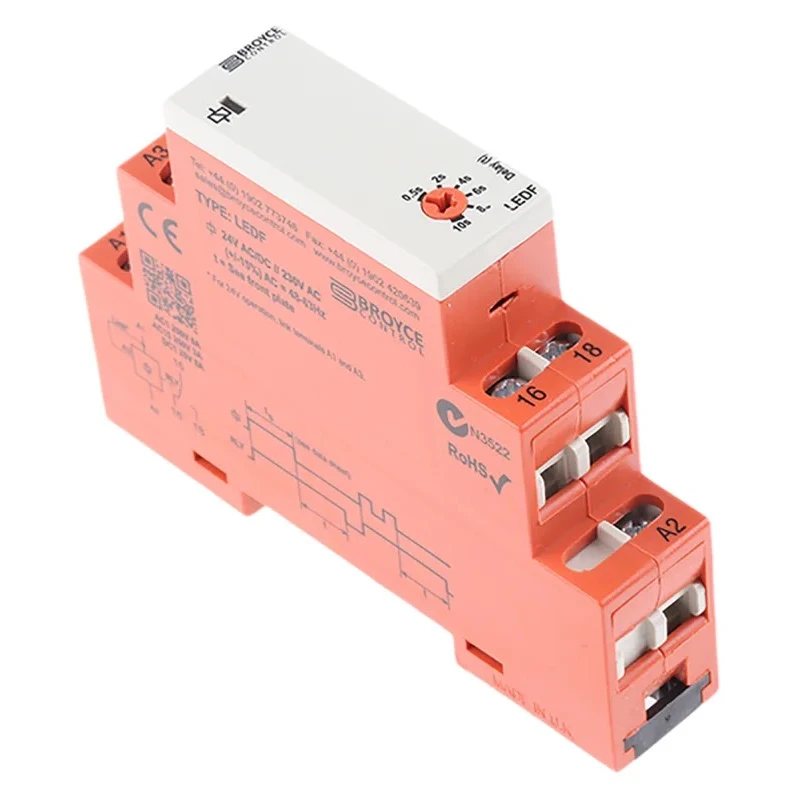

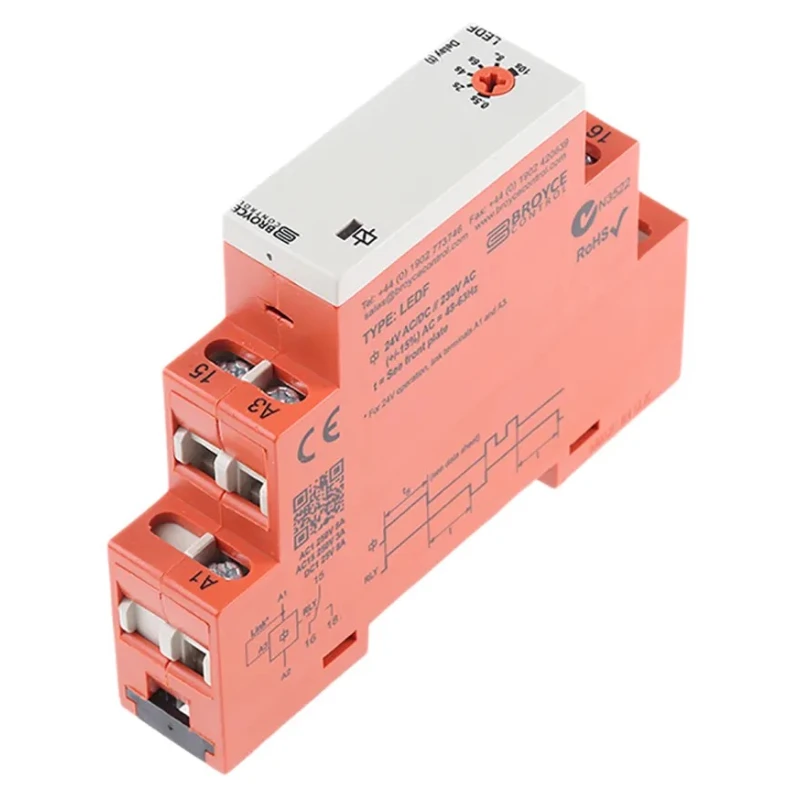

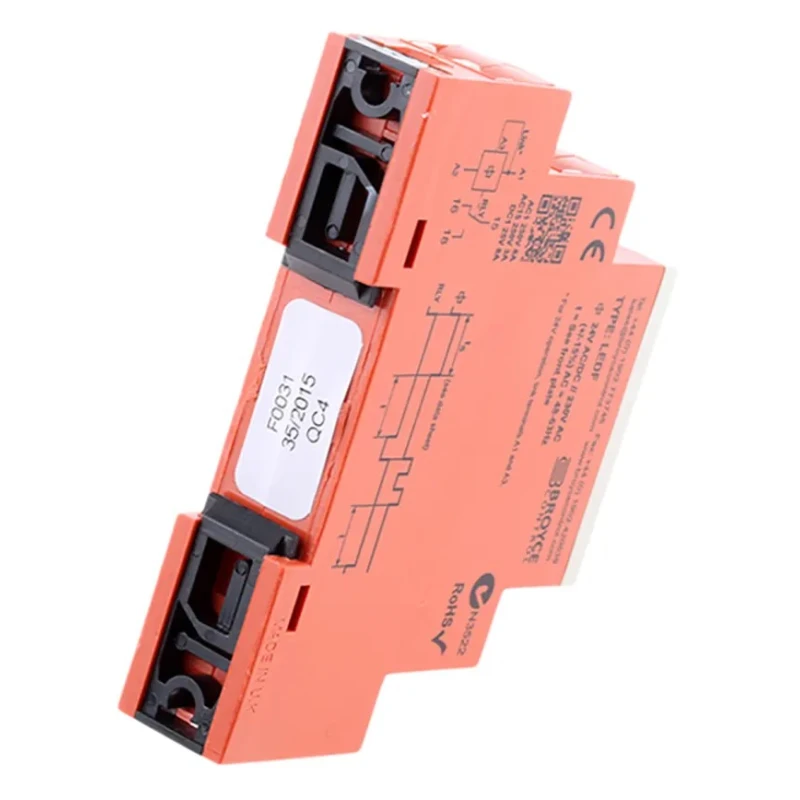

Broyce Control LEDF Series DIN Rail Timer Relay, 1-Contact, 24 V dc 230 V ac, 24 V ac, 0.5 LEDF 24VAC/DC/230VAC. 0.5-10 Sec

Broyce Control LEDF 24VAC/DC/230VAC. 0.5-10 Sec DIN Rail Timer Relay, a robust timing device, provides precise delay off functionality over a 0.5 to 10 second range. Ideal for industrial automation and electrical control systems, this relay utilizes a single-pole double-throw (SPDT) contact configuration for versatile switching applications.

Designed for DIN rail mounting with a slim 17.5 mm housing width, it ensures space-saving installation in control panels. The relay supports dual voltage operation with inputs for 24 V DC and 230/24 V AC, accommodating a wide variety of electrical environments.

The delay function triggers on power-off, allowing for controlled timing of equipment shutdowns or delayed disconnections. Timing adjustments are made accessible via a screwdriver slot, enabling fine tuning without removing the device from its mount.

Built for reliability, it operates within a temperature range from -20°C to 60°C, making it suitable for harsh industrial conditions. The green LED indicator continuously displays supply power status, enhancing system monitoring.

Connections are made using screw terminals for firm electrical contacts, ensuring safety and durability. The product dimensions are 89 mm in length, 66.5 mm in height, and 17.5 mm in width, adhering to common enclosure standards.

This timer relay meets recognized certifications including IEC, UL, and CE, assuring compliance with global safety and quality standards. This timer relay features a power-off delay function for delayed switching operations.

It mounts easily onto a DIN rail with a compact 17.5 mm width housing. Dual-voltage input supports both 24 V DC and 230/24 V AC supply voltages. Constructed with a single SPDT contact rated for 8 A current. Adjust timing conveniently using a screwdriver slot adjustment mechanism.

Operating temperature ranges from -20°C to 60°C for versatile environment use. Green LED supply status indicator provides clear operational feedback. Terminal connections use screw-type terminals for secure wiring. Dimensions of 89 mm length, 66.5 mm height, and 17.5 mm width fit standard electrical enclosures.

Suitable for use in industrial automation systems, electrical control panels, HVAC control, manufacturing processes, and any application requiring timed relay functions. Compatible with other Broyce Control timer relays and auxiliary devices.
