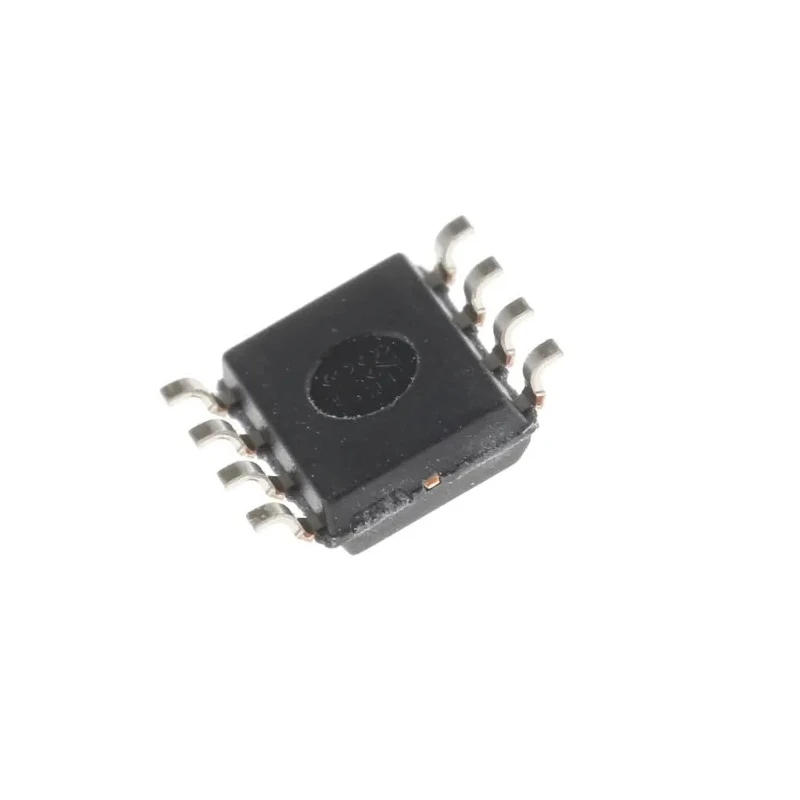

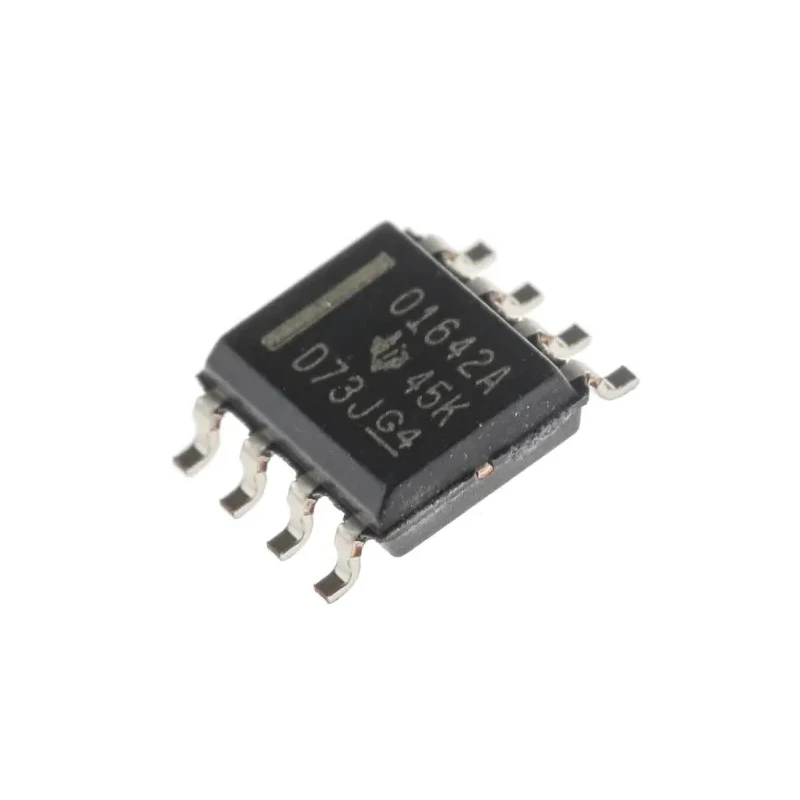

Texas Instruments Operational Amplifier 11 MHz, 8-Pin 18V SOIC OPA1642AID
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.5mm |
| Length | 5mm |
| Model | OPA1642AID |
| Width | 4mm |
| Mount Type | Surface |
| Series | OPA16 |
| Output Current | 36mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 4.5V |
| GBP - Gain Bandwidth Product | 11MHz |
| Input Bias Current | ±20 pA |
| Vos - Input Offset Voltage | 3.5 mV |
| Slew Rate | 20V/μs |
Key Features
- Offers dual channels with 8-pin SOIC package for surface mounting.
- Operates on a wide supply voltage range of 4.5V to 18V.
- Low input bias current of ±20 pA enhances precision.
- High slew rate of 20 V/μs ensures fast response times.
- Input offset voltage of 3.5 mV maintains signal accuracy.
- Output current capability up to 36 mA for driving 600 Ω loads.
- Automotive standard AEC-Q100 certified for high reliability.
- Operating temperature range from -40°C to 85°C allows versatile environment use.
Product Description
Texas Instruments OPA1642AID operational amplifier is a precision dual-channel device designed specifically for high-fidelity audio and other demanding analog circuits. Featuring an 11 MHz gain bandwidth product and delivered in an 8-pin SOIC package, it supports surface mount applications. The device operates over a wide supply voltage range from 4.5V to 18V, providing flexibility for various power configurations.
Its low input bias current of ±20 pA and input offset voltage of 3.5 mV help maintain signal integrity, while the high slew rate of 20 V/μs ensures rapid response to input changes. The output current capability of 36 mA enables it to drive low impedance loads such as 600 Ω audio lines.
Certified to meet the automotive AEC-Q100 standard, this amplifier is suitable for rugged industrial and automotive environments. It supports operation across a broad temperature range of -40°C to 85°C, ensuring reliability in diverse conditions. The compact physical dimensions (5 mm length, 4 mm width, 1.5 mm height) allow integration into space-constrained designs.
This operational amplifier is ideal for use in industrial, automotive, audio engineering, manufacturing, and laboratory instrumentation applications where precision analog amplification is required. Its robust electrical characteristics and certifications make it a reliable choice for demanding analog signal processing tasks.
Offers dual channels with 8-pin SOIC package for surface mounting. Operates on a wide supply voltage range of 4.5V to 18V. Low input bias current of ±20 pA enhances precision. High slew rate of 20 V/μs ensures fast response times.
Input offset voltage of 3.5 mV maintains signal accuracy. Output current capability up to 36 mA for driving 600 Ω loads. Automotive standard AEC-Q100 certified for high reliability. Operating temperature range from -40°C to 85°C allows versatile environment use.
Compact dimensions with 5 mm length, 4 mm width, and 1.5 mm height. Explore Operational Amplifiers and related semiconductor products at EnvMart for enhanced electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 11 MHz.
It operates over a wide supply voltage range from 4.5V to 18V.
This model can provide an output current capability of up to 36 mA.
The input bias current is specified at ±20 pA, enhancing precision in signal processing.
The input offset voltage is 3.5 mV, which helps maintain signal accuracy.
It has a high slew rate of 20 V/μs, ensuring fast response times.
The dimensions of this model are 5 mm in length, 4 mm in width, and 1.5 mm in height.
It operates within a temperature range of -40°C to 85°C, suitable for various environments.
The OPA1642AID is delivered in an 8-pin SOIC package for surface mounting applications.
Yes, it is certified to meet the automotive standard AEC-Q100, ensuring high reliability.
This operational amplifier features dual channels, making it suitable for various applications.
The operational amplifier is manufactured in India.
