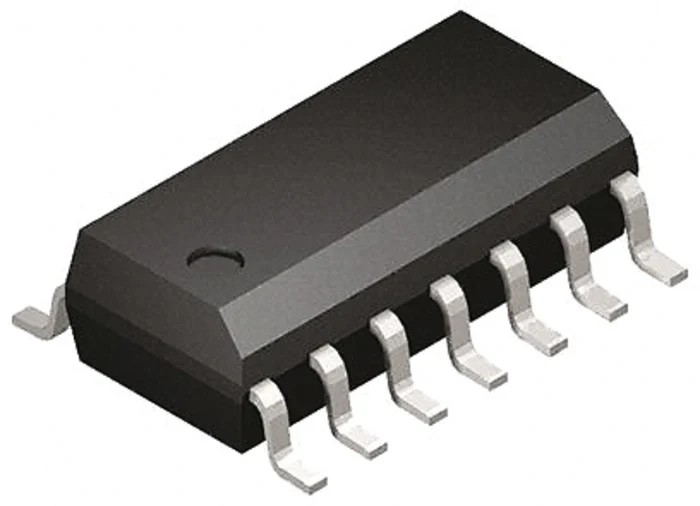

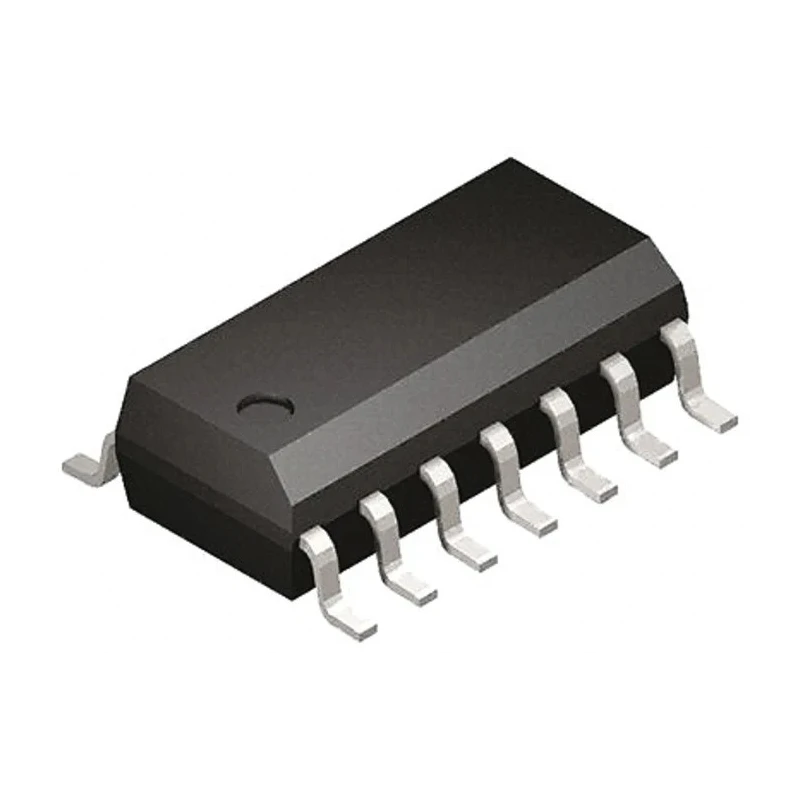

STMicroelectronics Operational Amplifier 4 MHz 14-Pin SOIC 12V TS924AIDT

STMicroelectronics TS924AIDT is a high-performance operational amplifier designed for industrial and electronic applications, featuring a 4 MHz Gain Bandwidth Product for efficient signal processing. This 14-pin SOIC package contains four amplifier channels optimized for low-voltage 12V operation, delivering excellent audio performance with low distortion and noise.

It offers a precision input offset voltage of 1.8 mV and a slew rate of 1.3 V/μs, enabling accurate and rapid signal amplification. The amplifier's high output current of 80 mA allows it to drive loads as low as 32 ohms, making it suitable for audio, instrumentation, and general-purpose amplification circuits.

Operating reliably over a wide temperature range from -40°C to 125°C, and conforming to automotive standard AEC-Q100, the TS924AIDT is well suited for demanding environments including automotive electronics, industrial controls, and communications systems.

The compact SOIC form factor with dimensions of 8.75 mm length, 4 mm width, and 1.65 mm height allows for efficient PCB layout in dense assemblies. Compliance with RoHS directives ensures environmentally responsible manufacturing and use.

4 MHz Gain Bandwidth Product (GBP) supports high-speed applications. Four channels integrated in a single 14-pin SOIC package. 12V supply voltage for versatile industrial applications. Low input offset voltage of 1.8 mV for accuracy.

Slew rate of 1.3 V/μs for fast response. High output current of 80 mA supports low impedance loads. Wide operating temperature range from -40°C to 125°C. RoHS compliant and meets automotive AEC-Q100 standard. Low input bias current (100 nA) and offset current (30 nA) reduce power consumption.

This Operational Amplifier is ideal for industrial, automotive, audio, and electronic circuit designs requiring compact, efficient, and reliable amplification. Explore other semiconductor and amplifier products on EnvMart for comprehensive solutions.
