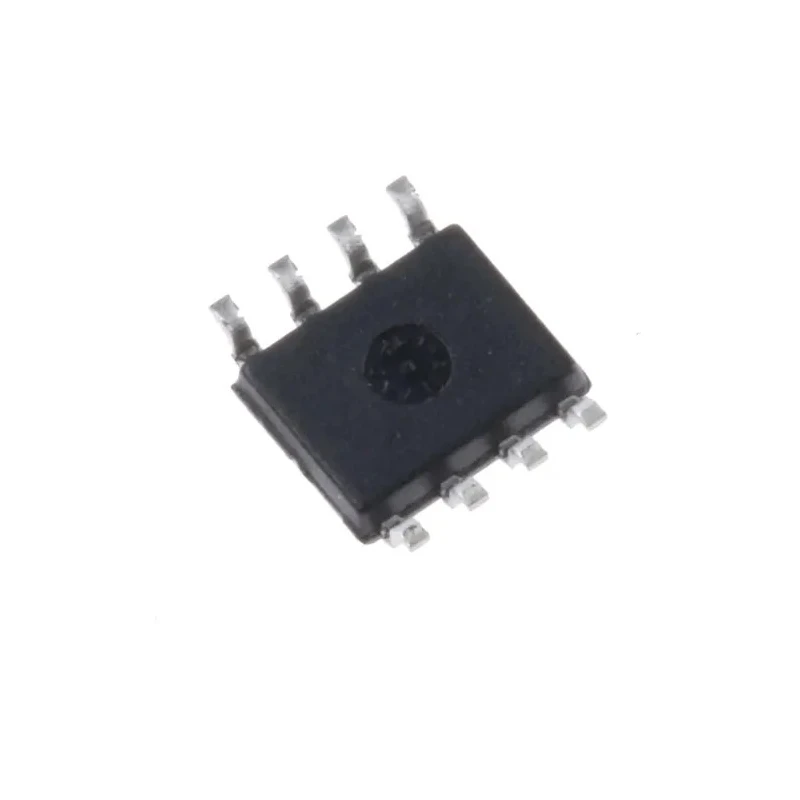

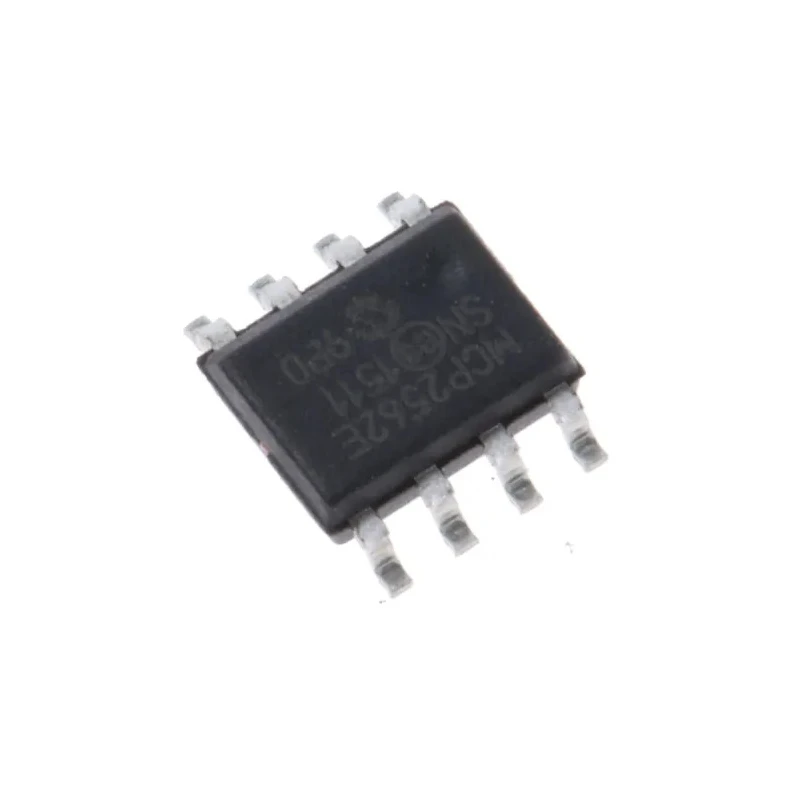

Microchip CAN Transceiver 1 Mbps, 8-Pin SOIC MCP2562-E/SN

Microchip MCP2562-E/SN is a CAN Transceiver designed for 1 Mbps data rates, packaged in a compact 8-pin SOIC surface mount format. This device facilitates Controller Area Network (CAN) communication by enabling the differential transmission and reception of data on the CAN bus.

The transceiver supports a single CAN communication channel, optimized for industrial and embedded applications where robust communication is critical. The wide supply voltage range of 4.5 to 5.5 volts allows it to be integrated across varied power systems.

Featuring a supply current of only 70 mA, it ensures energy efficiency during operation. Its ability to operate over an extended temperature range from -40°C to 150°C makes it suitable for use in demanding environments such as industrial automation, manufacturing controls, and embedded systems.

The device provides Electrostatic Discharge (ESD) protection conforming to IEC 61000-4-2 standards, safeguarding against ESD events during handling and operation. The package’s slim profile with dimensions of 4.9 mm length, 3.9 mm width, and 1.5 mm height supports compact PCB layouts.

Compliance with RoHS directives assures environmental compatibility. While this model does not fulfill specific automotive standards, it remains ideal for many commercial and industrial CAN bus communication needs.

Typical applications include industrial CAN network nodes, embedded CAN controllers, and communication in process control systems. This component is supplied in tubes, beneficial for manufacturing lines optimized for surface mount devices.

Supports a maximum data rate of 1 Mbps for high-speed CAN networks. Single CAN transceiver integrated, ensuring streamlined communication. Surface mount type with 8-pin SOIC package suitable for compact PCB designs. Operating voltage range from 4.5 V to 5.5 V for flexible power supply options.

Low supply current of 70 mA in active mode enabling energy efficiency. Wide operating temperature range from -40°C to 150°C for harsh environments. ESD protection compliant with IEC 61000-4-2 standards enhances device reliability.

Compact device dimensions: Length 4.9 mm, Width 3.9 mm, Height 1.5 mm. RoHS compliant ensuring environmentally safe manufacturing. Not automotive standard certified but suitable for industrial CAN applications. Browse the Semiconductors and CAN Interface ICs categories on EnvMart for more options and trusted Microchip components.
