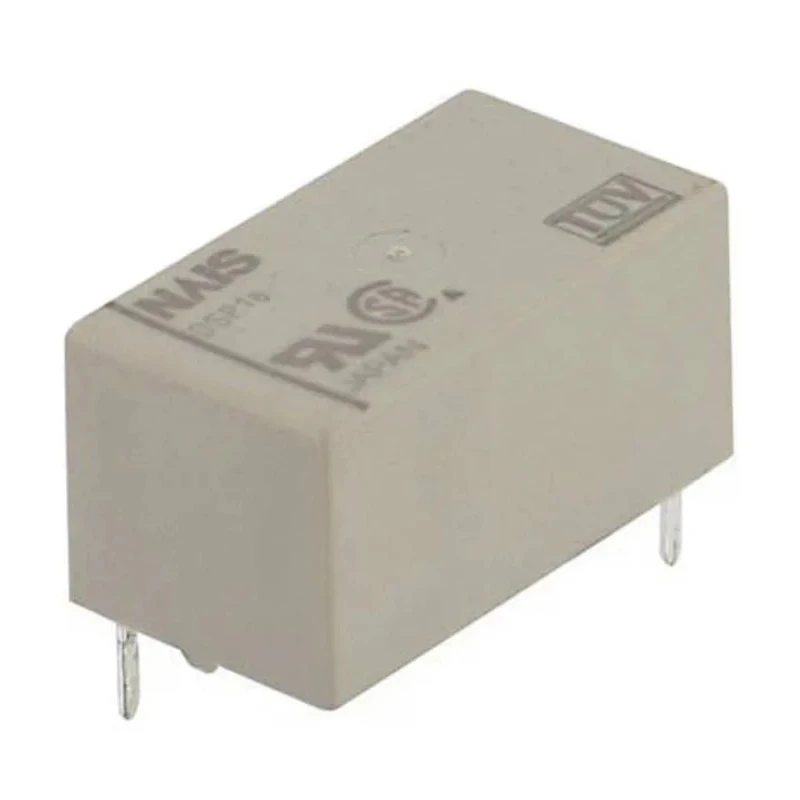

Panasonic PCB Power Relay 5V DC Coil 5A Switching Current SPST DSP1A5D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 10mm |
| Length | 20.2mm |
| Model | DSP1A5D |
| Width | 11mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | DSP |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 83Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 300mW |
| Switching Power | 150W |
Key Features
- The relay features a low coil power consumption of 300mW for energy efficiency.
- The contact configuration is Single Pole Single Throw (SPST) suitable for switching applications.
- Operating temperature range from -40°C to 60°C ensures reliability in varied conditions.
- The relay has a high switching power rating of 150W, supporting AC and DC voltages up to 125V.
- Constructed with silver alloy contacts providing low resistance of 30mΩ for optimal conductivity.
- Compact miniature size with dimensions 20.2mm (L) x 11mm (W) x 10mm (H) for space-saving PCB integration.
- Sealed construction allows automatic washing, enhancing durability for industrial environments.
- Applications include office and industrial electronic devices, PLCs, measuring instruments, and temperature controllers.
Product Description
Panasonic DSP1A5D PCB Power Relay is designed for reliable switching in electronic and industrial applications with a 5V DC coil voltage and a 5A switching current. It is a miniature relay with a Single Pole Single Throw (SPST) contact configuration, optimized for PCB mount installations.
This DSP series relay delivers high switching capacity and sensitivity, combined with a sealed construction that supports automatic washing, ensuring robust performance over its operating temperature range of -40°C to 60°C.
The relay supports switching powers up to 150W, suitable for both AC and DC voltages up to 125V. The contact material is a high-quality silver alloy, ensuring low contact resistance of 30mΩ and long service life.
Its compact dimensions of 20.2 mm length, 11 mm width, and 10 mm height enable efficient use of space on printed circuit boards, making it ideal for integration in office electronics, industrial devices, PLCs, and temperature control systems.
The relay features a low coil power consumption of 300mW for energy efficiency. The contact configuration is Single Pole Single Throw (SPST) suitable for switching applications. Operating temperature range from -40°C to 60°C ensures reliability in varied conditions.
The relay has a high switching power rating of 150W, supporting AC and DC voltages up to 125V. Constructed with silver alloy contacts providing low resistance of 30mΩ for optimal conductivity. Compact miniature size with dimensions 20.2mm (L) x 11mm (W) x 10mm (H) for space-saving PCB integration.
Sealed construction allows automatic washing, enhancing durability for industrial environments. Applications include office and industrial electronic devices, PLCs, measuring instruments, and temperature controllers. This high-performance relay is perfect for industrial, manufacturing, laboratory, and automation uses where reliable power switching is critical.
Discover more Power Relays and related components in the Electronics & Electricals category on EnvMart for your industrial and professional needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V DC.
The maximum switching current for the DSP1A5D is 5A.
This model has dimensions of 20.2mm in length, 11mm in width, and 10mm in height.
The contact configuration of the DSP1A5D is Single Pole Single Throw (SPST).
The operating temperature range for this relay is from -40°C to 60°C.
The relay has a high switching power rating of 150W.
The contact material of this relay is silver alloy, which provides low contact resistance.
The coil power consumption for this model is 300mW.
Yes, it supports switching AC and DC voltages up to 125V.
This relay is designed for PCB mounting.
The relay complies with RoHS standards.
The contact resistance of the DSP1A5D is 30mΩ.
