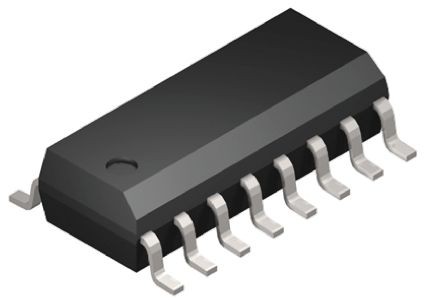

onsemi Counter IC MC14526B Surface Mount Uni-Directional 18V 125°C MC14526B

onsemi MC14526B is a monolithic counter IC featuring MOS P-channel and N-channel enhancement mode devices. This surface-mounted counter supports uni-directional counting with a maximum supply voltage of 18V, suitable for applications requiring robust performance over a temperature range from -55°C to 125°C.

The IC is presettable and can be cascaded for synchronous down counting, equipped with a decoded "0" state output for divide-by-N applications. Its cascade feedback input simplifies the design by enabling cascade divide-by-N operation without additional logic gates, which improves circuit efficiency.

The inhibit input allows disabling the pulse counting or can serve as a negative edge clock, providing flexibility in control schemes.

This operating design ensures low power dissipation and high noise immunity, making the MC14526B ideal for use in frequency synthesizers, phase-locked loops, and other frequency division tasks.

The device is logic edge-clocked, incrementing on the positive transition of the clock or the negative transition of the inhibit input, and can drive two low-power TTL loads or one low-power Schottky TTL load across the rated temperature range.

The counter IC uses advanced MOS technology for enhanced performance. Its surface mount package supports modern PCB assembly techniques. The synchronous down count functionality enables precise frequency division. Wide supply voltage range from 3.0V to 18V expands application versatility.

RoHS compliant ensuring environmental and safety standards compliance.

This product is designed for use in industrial and electronic equipment requiring reliable counting and frequency division, such as industrial automation gear and electronic systems.
