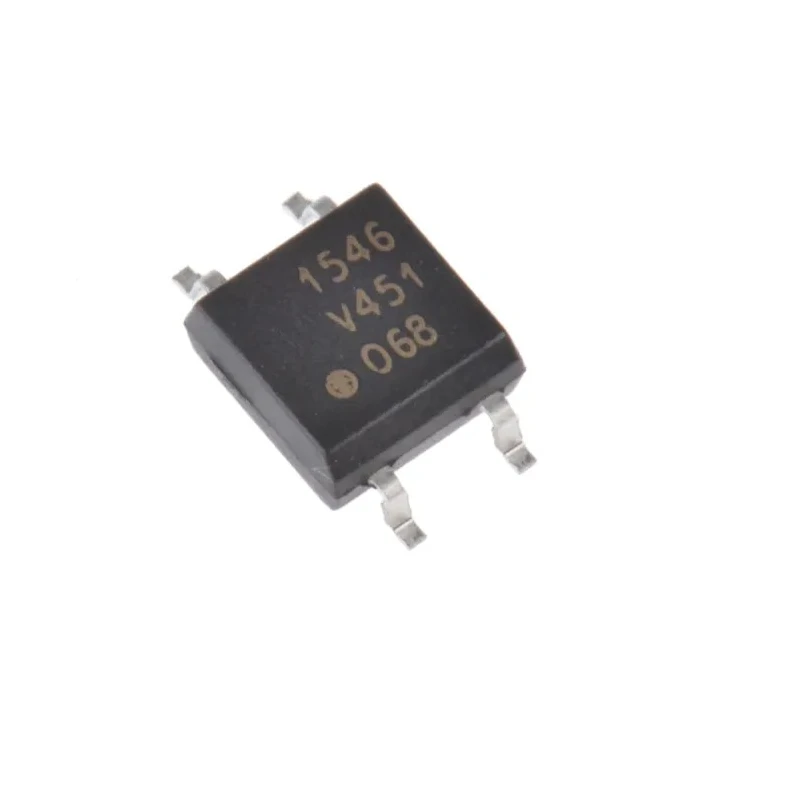

Vishay Solid State Relay Surface Mount 0.12 A Load 350 V AC/DC Load 1.5V Control LH1546AEFTR
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Vishay |
| Height | 2.3mm |
| Length | 4.7mm |
| Model | LH1546AEFTR |
| Width | 4.83mm |
| Mount Type | Surface |
| Output type | MOSFET |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Capacitance | 10pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder Tab |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 0.12A |
| Standards/Approvals | FIMKO RoHS, UL 1577, DIN EN 60747-5-5, CSA, BSI |
| Maximum Load Voltage | 350V ac/dc |
| Minimum Load Voltage | 0V ac/dc |
| Minimum Control Voltage | 1V |
| Maximum Control Voltage | 1.5V |
| Off State Leakage Current | 1nA |
Key Features
- Compact surface mount package suitable for automated assembly.
- Maximum load current of 0.12 A ensures precise switching for low power applications.
- Supports AC/DC load voltage up to 350 V for versatile use cases.
- Low off-state leakage current of 1 nA minimizes power consumption when switched off.
- Operates reliably within a temperature range from -40°C to 85°C.
- SPST contact configuration with AC/DC switching functionality.
- MOSFET output type offers high switching speed and reliability.
- Terminal type is solder tab for strong, secure mounting.
Product Description
Vishay LH1546AEFTR Solid State Relay is a high-quality, compact surface mount device designed for precise low current switching applications. It supports a maximum load current of 0.12 A and can handle load voltages up to 350 V AC or DC, making it suitable for a wide range of industrial, automation, and electronic control systems.
The relay uses a MOSFET output stage, which provides fast switching speeds, low power dissipation, and high reliability. Its small dimensions, 4.7 mm length, 4.83 mm width, and 2.3 mm height, enable easy integration into densely populated circuit boards. The device features a SPST contact configuration with AC/DC switching capabilities and solder tab terminals for robust soldered connections.
It operates reliably within an ambient temperature range from -40°C to 85°C, accommodating a variety of environmental conditions. The off-state leakage current is exceptionally low at 1 nA, contributing to energy efficiency in standby mode. These characteristics make it ideal for electronics manufacturing, industrial automation, automotive controls, and communication equipment.
Certified to meet multiple industry standards including FIMKO RoHS, UL 1577, DIN EN 60747-5-5, CSA, and BSI, the relay complies with global safety and environmental requirements. Manufactured with precision, it originates from Malaysia, ensuring quality and performance in demanding applications.
Compact surface mount design for automated assembly. High reliability MOSFET output stage. Wide temperature operating range supports diverse environments. Low off-state leakage current conserves energy. Certified to international safety and environmental standards.
Solder tab terminals for strong mounting on PCBs. Supports both AC and DC switching in a SPST configuration. Small size allows integration in dense electronic systems.
This Vishay Solid State Relay model LH1546AEFTR is a versatile solution for controlling low power AC/DC loads efficiently in industrial, laboratory, and electronic system applications. Explore more Vishay products and Solid State Relays on EnvMart to fulfill your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 0.12 A, making it suitable for low power applications.
It can handle load voltages up to 350 V AC or DC, providing versatility for various applications.
This unit features a MOSFET output type, which offers fast switching speeds and high reliability.
It operates reliably within a temperature range from -40°C to 85°C, accommodating diverse environmental conditions.
The relay has a Single Pole Single Throw (SPST) contact configuration, allowing for AC/DC switching functionality.
The dimensions of the relay are 4.7 mm in length, 4.83 mm in width, and 2.3 mm in height.
It features solder tab terminals, which provide strong and secure mounting on printed circuit boards (PCBs).
The off-state leakage current is exceptionally low at 1 nA, contributing to energy efficiency when the relay is switched off.
It is certified to meet multiple industry standards including FIMKO RoHS, UL 1577, DIN EN 60747-5-5, CSA, and BSI.
The minimum control voltage required for this relay is 1 V, while the maximum is 1.5 V.
This model is manufactured in Malaysia, ensuring compliance with quality standards.
It is ideal for use in electronics manufacturing, industrial automation, automotive controls, and communication equipment.
